Studer S36 cylindrical grinder

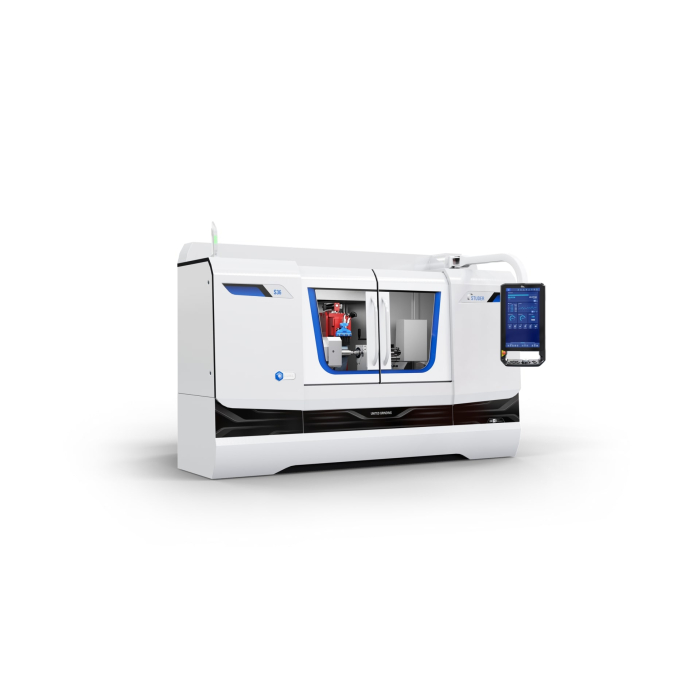

Studer S36 cylindrical grinder The Studer S36 is a modern CNC cylindrical grinder designed for high-volume production, particularly in the e-mobility, automotive, and hydraulics industries. Its 650 mm center distance and 225 mm center-to-table height enable precise grinding of workpieces weighing up to 150 kg. The S36 model features a large grinding wheel with a diameter of 610 mm and a width of 125 mm, ensuring both economical and highly efficient machining. The grinding spindle's 15 kW power allows for efficient and stable grinding of even the most demanding components – all in a single setup, with excellent precision. The machine is ready to work in automated production lines thanks to the available loading automation option, which significantly increases the efficiency of the entire process. Key Features of the Studer S36: Distance between centers: 650 mm, axle height: 225 mm, Maximum workpiece weight in centers: 150 kg, Grinding wheel with a diameter of 610 mm, width of 125 mm – high efficiency and performance, Grinding wheel spindle power: 15 kW – stable operation under heavy loads, One clamping – complete machining with maximum precision, Loading automation – ready for serial production. Application: The Studer S36 model is the ideal solution for production plants focused on large volumes of parts requiring the highest precision and repeatability, especially in the modern e-mobility, automotive and hydraulics sectors.
