Product description

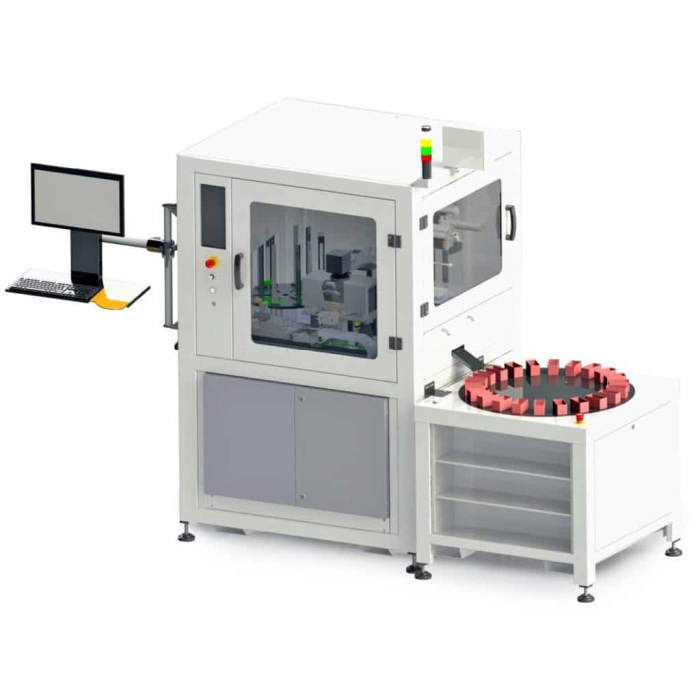

MPX – automatic plate marking system

Designed for large quantities

The MPX is a laser system designed exclusively for label marking, ideal for mass production and a wide range of formats. The system can handle up to 12 different label formats, which are automatically retrieved from the loading warehouse and transferred to the labeling area.

Double-sided marking and quality control

Plates can be marked on both sides if additional guarantees of full traceability are required. After marking, it is possible to integrate a barcode or datamatrix reading system, allowing verification of correct code execution. A protective film can also be applied if the plate is to be painted after marking and assembly.

Automation and segregation

After labeling, the label is placed on an unloading table with multiple positions. For large quantities, it's necessary to sort the labels not only by format but also by production batch. The operator receives the labels automatically sorted and ready for collection, significantly speeding up the workflow.

Main features of the system:

  • Support for up to 12 tablet formats,
  • Minimum plate size: 20 × 20 mm,
  • Maximum plate size: 85 × 85 mm,
  • Maximum loading height: 300 mm,
  • Available laser powers: 20 W, 30 W,
  • Compact and portable system with adjustable PC console,
  • Preparation for connecting a smoke extractor.

Technical Parameters

SKU: MPX
Brand: Sisma
Laser power (W): 20-30

FAQ

What is the MPX system used for?
MPX is an automatic laser marking system for plates, dedicated to large production runs and situations where there is a high variability in plate formats.
How many different tablet formats can MPX handle?
The system can handle up to 12 different label formats, which are automatically picked from the loading warehouse and transported to the labeling zone.
Does MPX allow for double-sided marking?
Yes, plates can be marked on both sides, which is particularly useful when full traceability or additional information on the reverse is required.
Can code quality control be integrated into the MPX system?
Yes, after marking, you can integrate a barcode or datamatrix reading system that automatically verifies the correctness of the code.
Does MPX support plates intended for later painting?
Yes, you can use a protective foil placed on the plate after marking, so that the markings remain legible after the painting process.
What does the automation of unloading and sorting of plates look like?
After marking, the plate is placed on a multi-position unloading table; the system automatically sorts the plates not only by format but also by production batch.
What are the benefits of automatic plate sorting?
The operator receives plates already divided by format and batch, ready for collection, which significantly speeds up further assembly and logistics processes.
What tablet formats does MPX support?
The minimum plate size is 20 × 20 mm and the maximum is 85 × 85 mm, which allows for the handling of a wide range of typical identification plates.
What is the maximum stack height of signs in a load?
The maximum loading height of the plates in the magazine is 300 mm, which allows for long, uninterrupted work without frequent replenishment.
What laser powers are available in the MPX system?
The system can be equipped with 20 W or 30 W laser sources, suitable for quick and legible marking of plates.
Is MPX a compact system?
Yes, it is a compact and portable system with an adjustable PC console that can be easily adapted to the operator's workplace or production line.
Is MPX prepared for a fume extraction system?
Yes, the system is prepared for connection to a fume extractor, which makes it easier to keep the workplace clean and safe.
