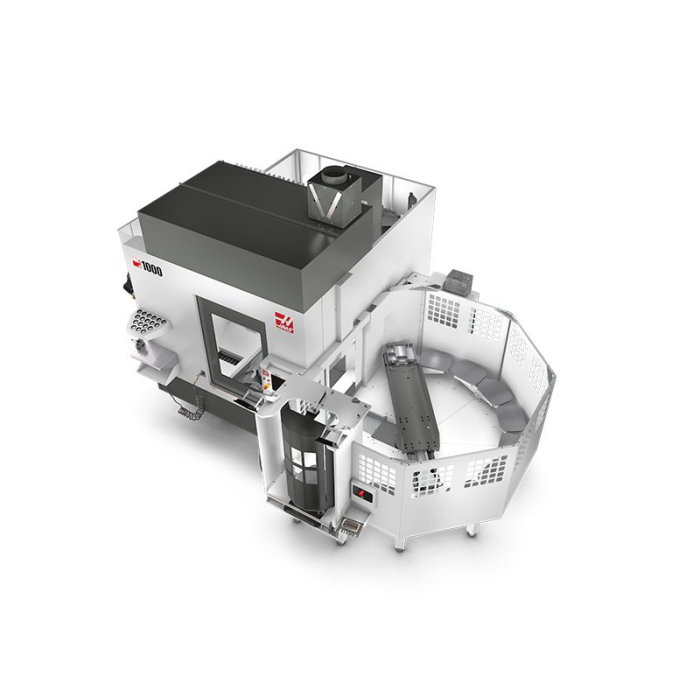

Haas 10+1 Pallet Changer

Haas 10+1 Pallet Changer The Haas 10+1 pallet system for the UMC-500/SS, UMC-750/SS, and UMC-1000/SS is a fully integrated, automated solution for both high-volume production and short, mixed-batch machining. Each pallet can be individually planned for priorities and machining sequences, allowing for rapid completion of critical jobs or dynamic phasing of the production process. Once machining is complete, pallets are automatically returned to storage or a dedicated operator station, allowing for immediate unloading and preparation for subsequent cycles. The system is supported by an intuitive, dedicated planning interface on the Haas control, significantly simplifying production sequence management and increasing efficiency. Key Features of the Haas 10+1 Pallet Changer: 10+1 configuration: 10 storage spaces + 1 processing station, Working area: UMC-500/SS: height (406 x 406 mm), UMC-750/SS, UMC-1000/SS: height (406 x 533 mm), Maximum pallet load: 90 kg (detail + handle), Full production automation and flexibility in task planning, Dedicated loading and unloading station, Intuitive planning interface on the Haas control. Important information: Requires optional 50+1 or 70+1 side tool changer, The pallet system must be anchored, The UMC-500 and UMC-500SS require a hopper-type chip feeder for proper coolant tank installation. Application: The Haas 10+1 pallet changer is the optimal solution for companies seeking maximum automation, flexible sequencing, and high-efficiency CNC production for batch runs and a variety of individual parts.
