Product description

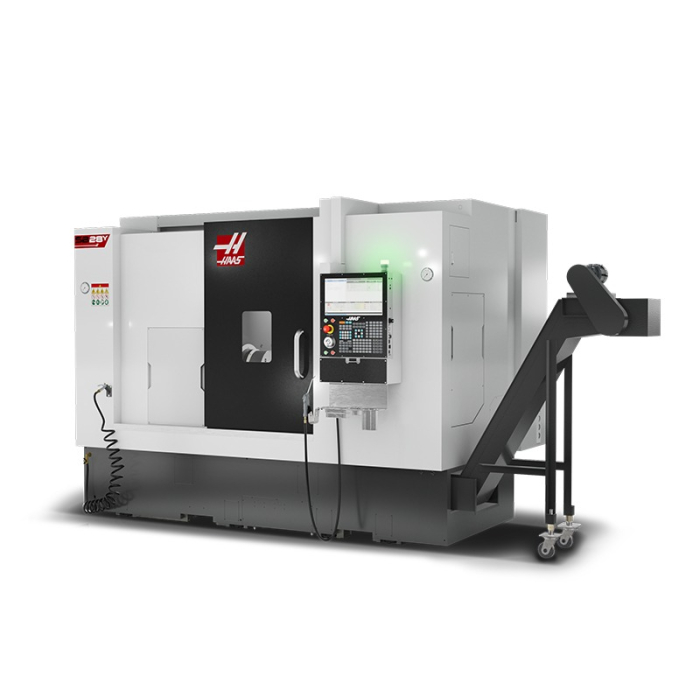

Haas SB-28Y Lathe
Lathe with sliding guide for high precision and durability.
The SB-28Y is a lathe with a traditional slideway, providing exceptional dynamic rigidity, high load capacity, and effective vibration damping during machining. This ensures stable and precise operation even during demanding tasks.
Equipped with the powerful and intuitive Haas control, it's easy to use and allows you to maximize the machine's capabilities. The SB-28Y boasts a compact footprint, allowing for efficient use of workshop space.
Key features:
- BMT65 precision tool head,
- Hardened, ground guides for high accuracy,
- Hand-machined Turcite-B guides for smooth movement and durability,
- 30° inclined bed and 30° Y-axis wedge angle for optimal stiffness,
- Compact design ideal for limited space.
The SB-28Y is a solid solution for shops looking for a reliable lathe with high precision and stability, backed by the global Haas service network.
Technical Parameters
| SKU: | SB-28Y |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | BMT65 |
| X-axis travel (mm): | 206 |
| Y-axis travel (mm): | 102 |
| Z-axis travel (mm): | 525 |
| C-axis rotation (°): | 360.00 |
| Maximum turning diameter (mm): | 305 |
| Maximum turning length (mm): | 470 |
| Swing over covers (mm): | 600.00 |
| X-axis feedrate (m/min): | 16 |
| Y-axis feedrate (m/min): | 16 |
| Z-axis feedrate (m/min): | 16 |
| C-axis feedrate (°/s): | 360.00 |
| Maximum spindle speed (rpm): | 3200 |
| Spindle power (kW): | 29.8 |
| Maximum spindle torque (Nm): | 576 |
| Main spindle chuck diameter (mm): | 254 |
| Main spindle bore (mm): | 74.00 |
| Main spindle taper: | A2-8 |
| Tailstock taper: | MK5 |
| Maximum X-axis drive feed force (kN): | 34.61 |
| Maximum Y-axis drive pulling force (kN): | 19.97 |
| Maximum Z-axis drive pulling force (kN): | 34.61 |
| C-axis braking torque (Nm): | 339.00 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 440 |
| Coolant Tank Capacity (L): | 208.00 |
| Driven tools: | Tak |
| Sub-spindle: | Nie |
| Hydraulic chuck: | Standard |
