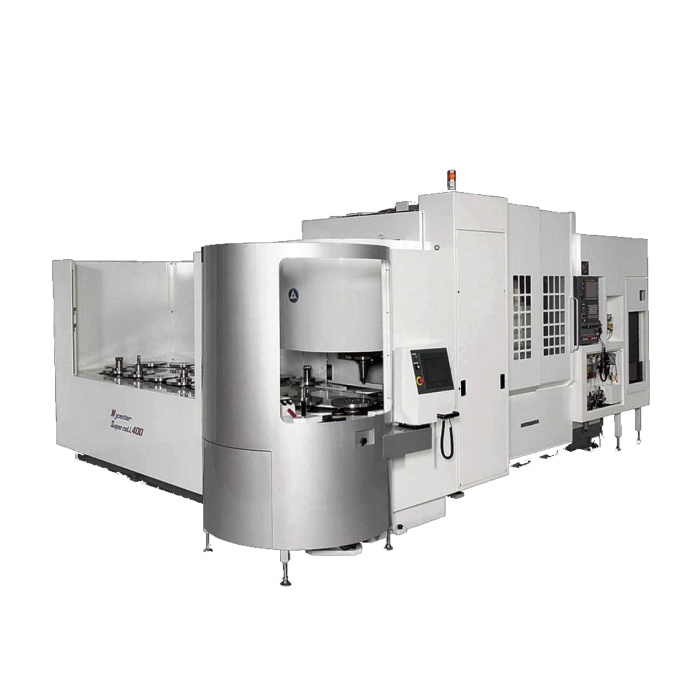

Kitamura Supercell-400G Milling Machine
SKU: SUPERCELL-400G
Supercell – horizontal five-axis milling machines with advanced palletizing Supercell is a series of horizontal, five-axis milling machines with a palletizing system, offering exceptional flexibility and work efficiency. Key features: Pallet and tool expansion: the standard system includes 20 pallet positions with a loading and unloading station, optional expansion up to 120 pallets possible, Intelligent pallet recognition: RFID technology allows for quick and accurate pallet identification, facilitating production changeovers and reducing downtime, Exceptional precision: positioning accuracy of ±0.000039" over full stroke and repeatability of ±0.00002", Flexible horizontal configuration: allows for both single setups and full, unmanned machining Solid construction: Meehanite casting and high-quality sliding guides ensure stability, durability and precision even during intensive work, High performance: spindle speed up to 20,000 rpm, four-stage gearbox and double-contact spindle guarantee rigidity and reliability, Operational efficiency: the automatic pallet loading and unloading system enables just-in-time operation, minimizing cycle times and downtime. Application: Ideal for unmanned production, both for one-off series and large-scale production, Flexible in adapting to various tasks thanks to easy configuration of pallets and tools.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Supercell – horizontal five-axis milling machines with advanced palletizing
Supercell is a series of horizontal, five-axis milling machines with a palletizing system, offering exceptional flexibility and work efficiency.
Key features:
- Pallet and tool expansion: the standard system includes 20 pallet positions with a loading and unloading station, optional expansion up to 120 pallets possible,
- Intelligent pallet recognition: RFID technology allows for quick and accurate pallet identification, facilitating production changeovers and reducing downtime,
- Exceptional precision: positioning accuracy of ±0.000039" over full stroke and repeatability of ±0.00002",
- Flexible horizontal configuration: allows for both single setups and full, unmanned machining
- Solid construction: Meehanite casting and high-quality sliding guides ensure stability, durability and precision even during intensive work,
- High performance: spindle speed up to 20,000 rpm, four-stage gearbox and double-contact spindle guarantee rigidity and reliability,
- Operational efficiency: the automatic pallet loading and unloading system enables just-in-time operation, minimizing cycle times and downtime.
Application:
- Ideal for unmanned production, both for one-off series and large-scale production,
- Flexible in adapting to various tasks thanks to easy configuration of pallets and tools.
Technical Parameters
| SKU: | SUPERCELL-400G |
|---|---|
| Brand: | Kitamura |
| Maximum workpiece height (mm): | 300 |
| Maximum workpiece diameter (mm): | 365(op.400) |
| Minimum distance from spindle center to pallet center (mm): | 200.00 |
| Maximum spindle to pallet distance (mm): | 610 |
| Minimum distance between spindle and pallet (mm): | 100 |
| Maximum distance from spindle center to pallet center (mm): | 300.00 |
| Number of pallets: | 20 (op.40/80) |
| Pallet dimensions (mm): | 350 |
| Maximum workpiece weight (kg): | 80.00 |
| X-axis travel (mm): | 510 |
| Y-axis travel (mm): | 510 |
| Z-axis travel (mm): | 560 |
| A-axis rotation (°): | -100/+0 |
| C-axis rotation (°): | 360.00 |
| X-axis feedrate (m/min): | 50 |
| X-axis cutting feedrate (m/min): | 50 |
| Y-axis cutting feedrate (m/min): | 50.00 |
| Z-axis cutting feedrate (m/min): | 50.00 |
| Maximum spindle speed (rpm): | 20000 |
| Spindle power (kW): | 7,5 |
| Maximum spindle torque (Nm): | 273 |
| Spindle taper: | 40 NST |
| Spindle drive type: | przekładnia 4-biegowa |
| Number of tools in the magazine: | 140(op.190/290) |
| Tool-to-tool / Chip-to-chip / change time (s): | 5.00 |
| Maximum tool diameter / all tools / (mm): | 95 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 150.00 |
| Maximum tool weight (kg): | 10.00 |
| Maximum tool length (mm): | 350.00 |
| Clamping taper type: | MAS CT (BT) 40 |
| Tool selection method: | Losowo/dwukierunkowo/stała kieszeń |
| Repeatability (mm): | 0.00 |
| Machine dimensions (length x width x height) (mm): | 5534x6042x2878 |
| Machine weight (kg): | 18800 |
| Compressed air consumption (l/min): | 350.00 |
| Compressed air pressure (bar): | 5.00 |
| Control: | Arumatik-Mi |
| Supply voltage (V): | 200 |
FAQ
What is the Kitamura Supercell-400G milling machine?
Horizontal, five-axis machining center with advanced palletizing system for flexible, unmanned production – 20 pallet stations as standard (expandable to 120) for one-off and large-scale series.
What are the key features of the Supercell-400G palletizer?
Standard 20-pallet system with loading/unloading station, optionally up to 120 pallets – full just-in-time automation with RFID technology for error-free recognition and quick task changes.
What precision parameters does the Supercell-400G offer?
Positioning accuracy of ±0.000039” over full stroke and repeatability of ±0.00002” – ideal for demanding 5-axis applications thanks to Meehanite casting and precision sliding guides.
What are the capabilities of the 400G machine spindle?
Spindle up to 20,000 rpm with 4-stage gearbox and double contact – high rigidity and reliability ensure efficient machining in continuous and unmanned mode.
How does RFID technology work in Supercell-400G?
Intelligent pallet recognition automatically identifies programs, tools, and parts – reducing downtime, eliminating errors, and enabling smooth production changeovers between different jobs.
What solutions ensure structural stability?
Meehanite casting with high-quality sliding guides – guarantees durability, vibration damping and precision during long-term, intensive operation in an unmanned environment.
What operating modes does Supercell-400G support?
The flexible horizontal configuration allows for both single setups and full unmanned machining – ideal for adapting between one-off runs and high-volume production.
Why choose the Kitamura Supercell-400G milling machine?
Advanced palletizing up to 120 pallets, RFID, sub-micron precision and a 20,000 rpm spindle – perfect just-in-time automation minimizing downtime at any production scale.
