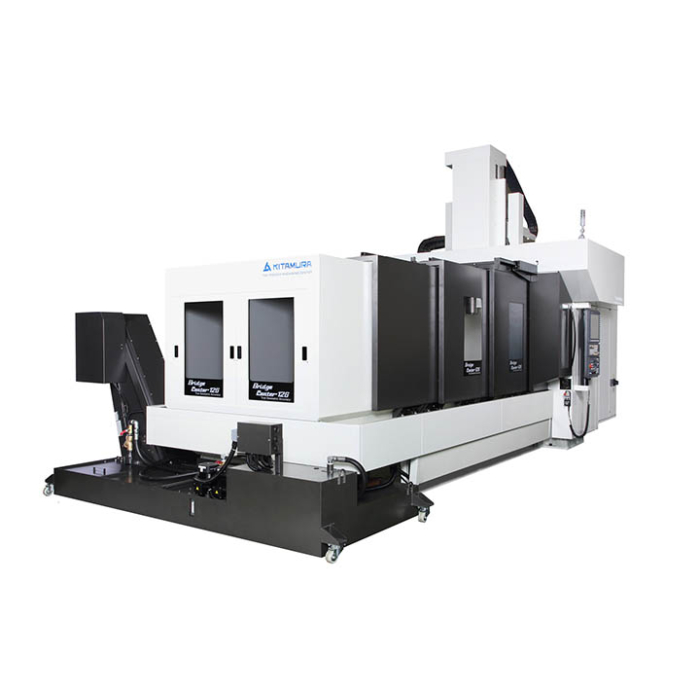

Kitamura Bridgecenter-12G Milling Machine
SKU: BRIDGECENTER-12G
Kitamura Bridgecenter – 12G Gantry Milling Machine The Kitamura BridgeCenter 12G is a gantry machining center designed for large, heavy workpieces requiring a large workspace and exceptional table rigidity. The machine's design is optimized for extreme cutting capabilities, ensuring reliability and precision in mold machining. The most important advantages: Durable construction: Solid cast iron construction and sliding guides guarantee maximum stability when machining heavy workpieces, High cutting capacity: High-speed, high-torque spindle options enable efficient machining of even difficult materials, Innovative X-axis beam: Patented slanted beam increases stiffness and precision when working with large workpieces, Extensive workspace: The large work envelope allows for the processing of massive components and complex forms, Double contact spindle design with 4-speed gearbox with 12,000 rpm speed, Table load capacity up to 6000 kg, Table dimensions 1370 x 3500 mm, Axis feed (X, Y, Z): 24 m/min (945 rpm), Precision mold making: Ideal for roughing, surface finishing, and creating cavities and rounds in molds.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Kitamura Bridgecenter – 12G Gantry Milling Machine
The Kitamura BridgeCenter 12G is a gantry machining center designed for large, heavy workpieces requiring a large workspace and exceptional table rigidity. The machine's design is optimized for extreme cutting capabilities, ensuring reliability and precision in mold machining.
The most important advantages:
- Durable construction: Solid cast iron construction and sliding guides guarantee maximum stability when machining heavy workpieces,
- High cutting capacity: High-speed, high-torque spindle options enable efficient machining of even difficult materials,
- Innovative X-axis beam: Patented slanted beam increases stiffness and precision when working with large workpieces,
- Extensive workspace: The large work envelope allows for the processing of massive components and complex forms,
- Double contact spindle design with 4-speed gearbox with 12,000 rpm speed,
- Table load capacity up to 6000 kg,
- Table dimensions 1370 x 3500 mm,
- Axis feed (X, Y, Z): 24 m/min (945 rpm),
- Precision mold making: Ideal for roughing, surface finishing, and creating cavities and rounds in molds.
Technical Parameters
| SKU: | BRIDGECENTER-12G |
|---|---|
| Brand: | Kitamura |
| Table length (mm): | 1370 |
| Table width (mm): | 3000 |
| Maximum table load (kg): | 6000 |
| Distance between columns (mm): | 1696 |
| Number of T-slots: | 18 |
| Szerokość rowków (mm): | 5 |
| Maximum spindle to pallet distance (mm): | 950 |
| Minimum distance between spindle and pallet (mm): | 150 |
| X-axis travel (mm): | 3050 |
| Y-axis travel (mm): | 1615 |
| Z-axis travel (mm): | 800 |
| X-axis feedrate (m/min): | 24 |
| X-axis cutting feedrate (m/min): | 24 |
| Y-axis cutting feedrate (m/min): | 24.00 |
| Z-axis cutting feedrate (m/min): | 24.00 |
| Maximum spindle speed (rpm): | 12000 |
| Spindle power (kW): | 22 |
| Spindle taper: | 50 NST (op. HSK-A100) |
| Spindle drive type: | przekładnia 4-biegowa |
| Number of tools in the magazine: | 40(op.60/80) |
| Tool-to-tool / Chip-to-chip / change time (s): | 15.00 |
| Maximum tool diameter / all tools / (mm): | 125 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 220.00 |
| Maximum tool weight (kg): | 20.00 |
| Maximum tool length (mm): | 400.00 |
| Clamping taper type: | MAS CT (BT) 50 (op. HSK-A100) |
| Tool selection method: | Losowy dwukierunkowy |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 30000 |
| Compressed air consumption (l/min): | 400.00 |
| Compressed air pressure (bar): | 5.00 |
| Control: | Arumatik-Mi |
| Supply voltage (V): | 200 |
FAQ
What is the Kitamura Bridgecenter-12G milling machine?
Gantry machining center with the largest workspace in the Bridgecenter series, optimized for extreme machining of massive, heavy workpieces and complex shapes requiring maximum table rigidity.
What are the key design features of the Bridgecenter-12G?
Solid cast iron with precision slide guides, patented inclined X-axis beam and extensive work envelope – 6000 kg table load capacity for the most demanding applications.
What are the spindle parameters of the 12G version?
Dual contact design with 4-speed gearbox reaching 12,000 rpm with high torque – enables extreme cutting of difficult materials and precise finishing.
What are the dimensions of the Bridgecenter-12G table?
Table dimensions 1370 x 3500 mm with a load capacity of 6000 kg – the largest surface in the series for processing massive elements and complex forms.
What feed rates do the axes of the 12G machine offer?
X, Y, Z axis feed up to 24 m/min (945 mm/min) – the extreme dynamics of the gantry structure guarantees efficiency in roughing and finishing of the largest details.
What processing are 12G centers dedicated to?
Precision mold and die production – ideal for heavy roughing, surface finishing, creating cavities and roundings requiring the highest stability.
What makes the 12G spindle design unique?
The double contact with 4-speed gearbox combines high speed (12,000 rpm) with enormous torque – versatility for all phases of extreme machining.
Why choose the Kitamura Bridgecenter-12G milling machine?
The largest table 1370x3500 mm, load capacity 6000 kg, double spindle contact and exceptional rigidity – optimal for massive forms and heavy details without any compromises.
