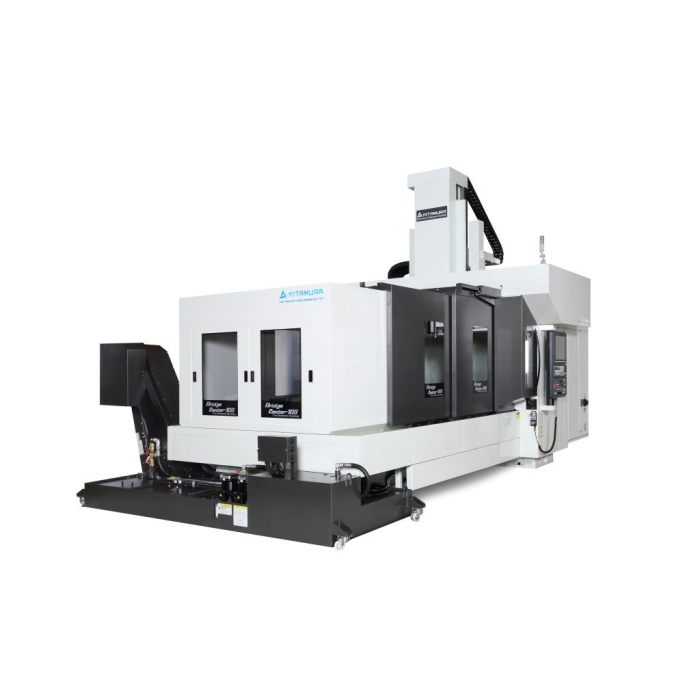

Kitamura Bridgecenter-10G Milling Machine
SKU: Bridgecenter-10G
Kitamura Bridgecenter-10G Milling Machine The Kitamura BridgeCenter 10G is a gantry machining center designed for large, heavy workpieces requiring a large workspace and maximum table rigidity. Its robust cast iron construction and precision slide guides ensure stability and reliability even under extreme cutting conditions. The most important advantages: Durable construction: Solid cast iron and sliding guides guarantee high rigidity and stability of the table, High cutting capacity: High-speed, high-torque spindles ensure efficient machining of difficult materials, Innovative X-axis beam: Patented inclined beam increases precision and durability when machining large workpieces, Wide workspace: The large work envelope allows the processing of heavy and complex elements, Heavy-duty table with a load capacity of 6,000 kg, Axis feed (X, Y, Z): 945 rpm, #50 4-speed, 12,000 rpm, two-pole geared spindle Precision mold making: Ideal for roughing, surface finishing, and creating cavities and rounds in molds.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Kitamura Bridgecenter-10G Milling Machine
The Kitamura BridgeCenter 10G is a gantry machining center designed for large, heavy workpieces requiring a large workspace and maximum table rigidity. Its robust cast iron construction and precision slide guides ensure stability and reliability even under extreme cutting conditions.
The most important advantages:
- Durable construction: Solid cast iron and sliding guides guarantee high rigidity and stability of the table,
- High cutting capacity: High-speed, high-torque spindles ensure efficient machining of difficult materials,
- Innovative X-axis beam: Patented inclined beam increases precision and durability when machining large workpieces,
- Wide workspace: The large work envelope allows the processing of heavy and complex elements,
- Heavy-duty table with a load capacity of 6,000 kg,
- Axis feed (X, Y, Z): 945 rpm,
- #50 4-speed, 12,000 rpm, two-pole geared spindle
- Precision mold making: Ideal for roughing, surface finishing, and creating cavities and rounds in molds.
Technical Parameters
| SKU: | Bridgecenter-10G |
|---|---|
| Brand: | Kitamura |
| Table length (mm): | 1370 |
| Table width (mm): | 3000 |
| Maximum table load (kg): | 6000 |
| Distance between columns (mm): | 1696 |
| Number of T-slots: | 18 |
| Szerokość rowków (mm): | 5 |
| Maximum spindle to pallet distance (mm): | 950 |
| Minimum distance between spindle and pallet (mm): | 150 |
| X-axis travel (mm): | 2540 |
| Y-axis travel (mm): | 1615 |
| Z-axis travel (mm): | 800 |
| X-axis feedrate (m/min): | 24 |
| X-axis cutting feedrate (m/min): | 24 |
| Y-axis cutting feedrate (m/min): | 24.00 |
| Z-axis cutting feedrate (m/min): | 24.00 |
| Maximum spindle speed (rpm): | 12000 |
| Spindle power (kW): | 22 |
| Spindle taper: | 50 NST (op. HSK-A100) |
| Spindle drive type: | przekładnia 4-biegowa |
| Number of tools in the magazine: | 40(op.60/80/100) |
| Tool-to-tool / Chip-to-chip / change time (s): | 14.00 |
| Maximum tool diameter / all tools / (mm): | 125 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 220.00 |
| Maximum tool weight (kg): | 20.00 |
| Maximum tool length (mm): | 400.00 |
| Clamping taper type: | MAS CT (BT) 50 (op. HSK-A100) |
| Tool selection method: | Losowy dwukierunkowy |
| Machine positioning accuracy (mm): | 0.00 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 27000 |
| Compressed air consumption (l/min): | 400.00 |
| Compressed air pressure (bar): | 5.00 |
| Control: | Arumatik-Mi |
| Supply voltage (V): | 200 |
FAQ
What is the Kitamura Bridgecenter-10G milling machine?
Gantry machining center with the largest work envelope in the Bridgecenter series, designed for extreme machining of large and heavy workpieces requiring maximum table stiffness and stability.
What are the key features of the Bridgecenter-10G design?
Solid cast iron with precision slide guides, patented inclined X-axis beam and extreme durability – table load capacity up to 6000 kg for the heaviest components.
What are the parameters of the 10G version spindle?
#50 4-speed, 12,000 rpm, 2-pole geared spindle – provides high-torque cutting capabilities for difficult materials.
What feed rates do Bridgecenter-10G axes offer?
X, Y, Z axis feed up to 945 mm/min – high dynamics of the gantry structure with the largest working space guarantees efficiency under extreme loads.
What is the load capacity of the 10G machine table?
The table's load capacity is 6,000 kg – enabling the processing of the heaviest and most complex details with full stability and surface precision.
What processing are 10G centers dedicated to?
Precision mold and die manufacturing – ideal for heavy roughing, finishing, cavity creation and rounding requiring extreme stiffness.
How does a two-pole gear spindle work?
The 4-speed gearbox combines high speed (12,000 rpm) with high torque – versatility for all machining phases from roughing to finishing.
Why choose the Kitamura Bridgecenter-10G milling machine?
Highest payload of 6000 kg, #50 cone with two-pole gear, largest working envelope and exceptional stiffness – optimal for extreme shapes and heavy workpieces.
