Ileri T-REX 25KG
SKU: T-REX 25
Boxy Autoloader T-REX – automation of large parts in a compact form The Boxy Autoloader T-REX is an advanced robotic cell designed specifically for handling large and heavy workpieces in CNC machining processes. The system is an ideal solution for companies seeking robust, compact, and easy-to-implement automation, even for demanding applications. Efficiency and versatility Operation by FANUC industrial robots with a lifting capacity of 25 kg – adapted to the weight of the workpieces, Maximum detail height 200 mm, 4 durable storage drawers measuring 800 × 600 mm, each with a load capacity of up to 250 kg, Adapted to quick loading and unloading operations on CNC machines – also for large-scale production. Designed for large items – with space saving in mind Despite being designed to handle heavy workpieces, the T-REX maintains a compact form. Thanks to its optimized design, it takes up significantly less space than traditional, custom-designed systems, without sacrificing functionality or safety. Automatic operation without downtime A drawer storage system based on experience from production plants – it ensures continuous operation without an operator for many hours, The robot independently transfers parts between the warehouse and the machine tool – full automation of the loading and unloading process. Intelligent SoftBox software Automatic programming of operations without the need to code the robot, Quick adjustment to changing production – perfect for flexible lines, A user-friendly interface that allows operation even by people with no experience in robot programming. Key benefits of T-REX Perfect for handling large and heavy components, Compact, ready for integration with many types of CNC machines, Short installation and start-up time, Effective automation even with limited space availability, Independence from the machine brand – works with different manufacturers. The Boxy Autoloader T-REX is a solution that combines power, flexibility and ease of use, enabling companies to quickly reach the next level of automation without having to compromise on space or performance.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description

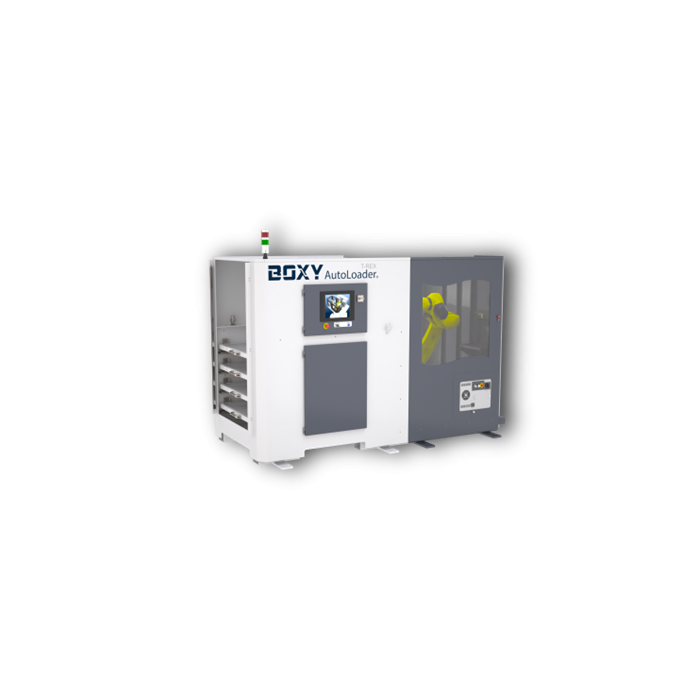

Boxy Autoloader T-REX – automation of large parts in a compact form
The Boxy Autoloader T-REX is an advanced robotic cell designed specifically for handling large and heavy workpieces in CNC machining processes. The system is an ideal solution for companies seeking robust, compact, and easy-to-implement automation, even for demanding applications.
Efficiency and versatility
- Operation by FANUC industrial robots with a lifting capacity of 25 kg – adapted to the weight of the workpieces,
- Maximum detail height 200 mm,
- 4 durable storage drawers measuring 800 × 600 mm, each with a load capacity of up to 250 kg,
- Adapted to quick loading and unloading operations on CNC machines – also for large-scale production.
Designed for large items – with space saving in mind
Despite being designed to handle heavy workpieces, the T-REX maintains a compact form. Thanks to its optimized design, it takes up significantly less space than traditional, custom-designed systems, without sacrificing functionality or safety.
Automatic operation without downtime
- A drawer storage system based on experience from production plants – it ensures continuous operation without an operator for many hours,
- The robot independently transfers parts between the warehouse and the machine tool – full automation of the loading and unloading process.
Intelligent SoftBox software
- Automatic programming of operations without the need to code the robot,
- Quick adjustment to changing production – perfect for flexible lines,
- A user-friendly interface that allows operation even by people with no experience in robot programming.
Key benefits of T-REX
- Perfect for handling large and heavy components,
- Compact, ready for integration with many types of CNC machines,
- Short installation and start-up time,
- Effective automation even with limited space availability,
- Independence from the machine brand – works with different manufacturers.
The Boxy Autoloader T-REX is a solution that combines power, flexibility and ease of use, enabling companies to quickly reach the next level of automation without having to compromise on space or performance.
Technical Parameters
| SKU: | T-REX 25 |
|---|---|
| Brand: | CNC Ileri |
| Pallet width (mm): | 600.00 |
| Number of pallets: | 4.00 |
| Pallet length (mm): | 800.00 |
| Workpiece weight (wrist) (kg): | 25.00 |
| Maximum robot payload (kg): | 25.00 |
| Reach radius in (mm): | 1,831.00 |
| Number of drawers: | 4.00 |
| Maximum load capacity per drawer (kg): | 250.00 |
| Maximum workpiece height (mm): | 200.00 |
| Number of axes: | 6 |
| Workpiece magazine type: | szufladowy |
| Drawer dimensions (mm): | 600 x 800 |
| Workpiece inspection station: | tak |
| Air blow function: | tak |
| Gripper tower: | tak (kondżektor, chwytaki, palce) |
| Software packages: | Softboxy, Easysoft, Autoteach |
| Teach Pendant: | tak |
| Calibration package: | tak, automatyczna kalibracja |
| Remote system support: | tak |
| Positioning / rotary station: | tak, jeśli potrzebna |
| Separators: | tak |
FAQ
What is Boxy Autoloader T-REX?
The Boxy Autoloader T-REX is a robotic cell designed to automate the handling of large and heavy workpieces on CNC machines. It is designed as a compact solution for demanding applications. The manufacturer positions it as a system for rapid loading and unloading while maintaining ease of implementation.
What are the basic parameters of T-REX?
The system can be used with FANUC robots with a payload capacity of 12 kg, 25 kg, or 35 kg. It has four 800 x 600 mm drawers and supports a load capacity of up to 200 kg per drawer. Additionally, the source materials indicate a workpiece height of up to 200 mm.
What makes the T-REX design unique?
The T-REX was designed to take up less space than traditional, custom-designed systems, while maintaining functionality and safety. Drawer storage allows for hours of unattended operation.
How does this system work?
The FANUC robot automatically transfers parts between the warehouse and the machine tool, and the entire process is supported by SoftBoxy software. This makes the system suitable for continuous operation, with short setup times and rapid part changes.
What is the importance of SoftBoxes?
SoftBoxy enables automatic programming without robot coding, rapid adaptation to changing production, and a simple user interface. This makes implementation easy even in plants without robotics specialists.
What applications is T-REX suitable for?
The system is designed for large components, high-volume production, and short-cycle applications. The manufacturer recommends turning, milling, and grinding applications, as well as for operating individual machines.
What are the benefits of such a cell?
T-REX offers zero-downtime automation, easy relocation, and quick setup, as well as compatibility with various brands of CNC machines. It's a good solution for companies looking to increase productivity without building a complex, custom-built system.
For which companies will it be the best choice?
It's a good choice for companies that process large, heavy workpieces and require compact automation with high storage capacity. It offers the greatest value where quick changeovers, long unattended operation, and space savings are key.
