Product description

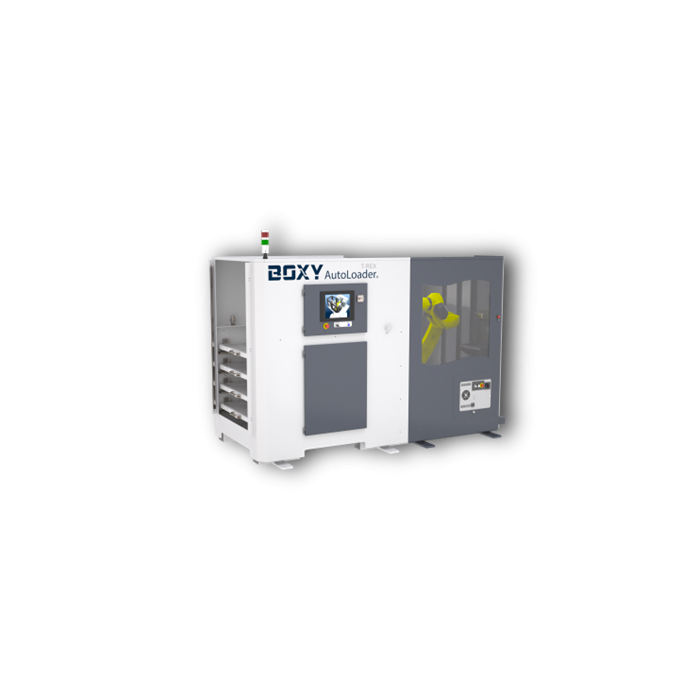

Boxy Autoloader T-REX – automation of large parts in a compact form
The Boxy Autoloader T-REX is an advanced robotic cell designed specifically for handling large and heavy workpieces in CNC machining processes. The system is an ideal solution for companies seeking robust, compact, and easy-to-implement automation, even for demanding applications.
Efficiency and versatility
- Operation by FANUC industrial robots with a load capacity of 12 kg – adapted to the weight of the workpieces,
- Maximum detail height 200 mm,
- 4 durable storage drawers measuring 800 × 600 mm, each with a load capacity of up to 250 kg,
- Adapted to fast loading and unloading operations on CNC machines – also for large-scale production.
Designed for large items – with space saving in mind
Despite being designed to handle heavy workpieces, the T-REX maintains a compact form. Thanks to its optimized design, it takes up significantly less space than traditional, custom-designed systems, without sacrificing functionality or safety.
Automatic operation without downtime
- A drawer storage system based on experience from work in production plants – ensures continuous operation without an operator for many hours,
- The robot independently transfers parts between the warehouse and the machine tool – full automation of the loading and unloading process.
Intelligent SoftBox software
- Automatic programming of operations without the need to code the robot,
- Quick adjustment to changing production – perfect for flexible lines,
- User-friendly interface, enabling operation even by people with no experience in robot programming.
Key benefits of T-REX
- Perfect for handling large and heavy components,
- Compact, ready for integration with many types of CNC machines,
- Short installation and start-up time,
- Effective automation even with limited space availability,
- Independence from the machine brand – works with different manufacturers.
The Boxy Autoloader T-REX is a solution that combines power, flexibility and ease of use, enabling companies to quickly reach the next level of automation without having to compromise on space or performance.
Technical Parameters
| SKU: | T-REX 12 |
|---|---|
| Brand: | CNC Ileri |
| Pallet width (mm): | 600.00 |
| Number of pallets: | 4.00 |
| Pallet length (mm): | 800.00 |
| Workpiece weight (wrist) (kg): | 12.00 |
| Maximum robot payload (kg): | 12.00 |
| Reach radius in (mm): | 1,441.00 |
| Number of drawers: | 4.00 |
| Maximum load capacity per drawer (kg): | 250.00 |
| Maximum workpiece height (mm): | 200.00 |
| Number of axes: | 6 |
| Workpiece magazine type: | szufladowy |
| Drawer dimensions (mm): | 600 x 800 |
| Workpiece inspection station: | tak |
| Air blow function: | tak |
| Gripper tower: | tak (kondżektor, chwytaki, palce) |
| Software packages: | Softboxy, Easysoft, Autoteach |
| Teach Pendant: | tak |
| Calibration package: | tak, automatyczna kalibracja |
| Remote system support: | tak |
| Positioning / rotary station: | tak, jeśli potrzebna |
| Separators: | tak |
FAQ
What is Boxy Autoloader T-REX?
T-REX is an advanced robotic cell designed for automatic loading and unloading of large and heavy workpieces in CNC machining processes.
What applications was it designed for?
The system is dedicated to working with large-sized and heavy components, especially in production requiring stability, efficiency and automation.
What robots are used in the system?
T-REX works with FANUC industrial robots with a payload of 12 kg, adapted to handle the weight of workpieces in typical applications.
What are the maximum dimensions of the parts supported?
The system supports details with a maximum height of 200 mm.
What does the parts storage system look like?
T-REX is equipped with 4 durable storage drawers measuring 800 × 600 mm, with a load capacity of up to 250 kg each.
Can the system work without an operator?
Yes, thanks to automatic operation and a drawer storage system, the T-REX can operate unattended for many hours.
How does the loading and unloading process work?
The robot independently transfers parts between the warehouse and the CNC machine, carrying out the entire process without operator intervention.
Does the system take up a lot of space?
No – despite being designed for large workpieces, the T-REX has a compact design that saves production space.
What does programming and operating the system look like?
Thanks to the SoftBoxy software, the system offers automatic programming without the need for coding and an intuitive user interface.
Is the system production flexible?
Yes, T-REX allows for quick adaptation to changing processes and is ideal for flexible production lines.
Is T-REX compatible with different CNC machines?
Yes, the system is independent of the machine tool manufacturer and can work with many types of CNC machines.
What are the main benefits of implementing T-REX?
The most important advantages are: the ability to automate heavy processes, space saving, quick installation, high efficiency and universal applications.
