Ileri Avni 35kg
SKU: Ileri Avni 35kg
A system designed to operate up to two CNC machines. Available with one or two storage towers. The Ileri Avni 35 kg is an integrated automation system based on a FANUC industrial robot with a maximum payload of 35 kg. The system is designed for precise loading and unloading of CNC machines, part transport, and assembly lines, ensuring fast operations and high repeatability. Key advantages Load capacity up to 35 kg, ideal for many types of details and tasks, Fanuc 35kg, 6 axes, 20 drawers 600mm x 800mm, Maximum height 100mm, SoftBoxes Automation Software, Fast movements and precision of operation, which supports increased productivity, Light and compact design – immediately ready for integration into the production line. Application The AVNI 35 kg system is perfect for applications such as: Automation of CNC loading and unloading processes, Transport of parts between stations, Assembly and packaging work in industrial lines. Key features Works with various brands of CNC machines – no need for an additional robot interface (for Fanuc, Haas NGC, OPC UA), Drawer storage on an independent trolley – quick replacement of parts and easy internal logistics, Integrated SoftBox and Mixbox software – quick programming without coding knowledge, Remote operation and programming – parts definition possible from an external computer, Touchscreen and operator-friendly interface – easy to use even for unskilled users. Standard equipment Part Control Station (SPC), computer, touch screen, Automatic calibration and part configuration software, Double grippers with adjustable fingers, Automatic door and security system (fencing), Operation without interrupting the robot's operation (parallel loading/unloading), Functions: blowing, positioning, repositioning, CE mark, FANUC I-pendant, quick installation and conversion. Remote programming and management Possibility of remote definition of details via SoftBoxes from another computer, Access to the robot via the FANUC I-pendant and the operator's computer, Roboguide – optional professional simulation tool (paid). Mixbox Software Allows different parts in each drawer, Communication with CNC machines without additional hardware (e.g. Fanuc FOCAS, Haas NGC), Support for OPC UA, Profinet, Modbus protocols. Why Ileri Avni 35 kg? The AVNI 35 kg system combines the robustness of a FANUC robot with a well-thought-out design and high levels of automation. It offers an excellent balance of performance, precision, and ease of integration, while simultaneously saving space on the production floor.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description

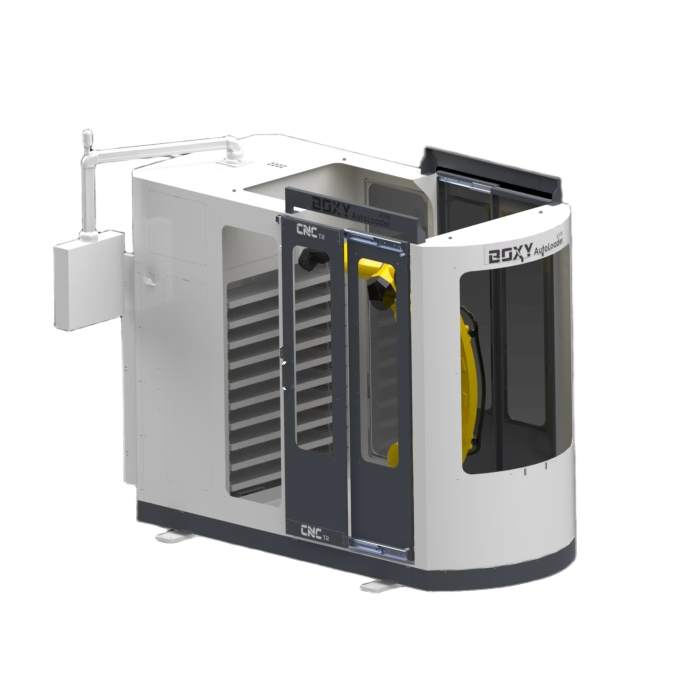

A system designed to operate up to two CNC machines. Available with one or two storage towers.
The Ileri Avni 35 kg is an integrated automation system based on a FANUC industrial robot with a maximum payload of 35 kg. The system is designed for precise loading and unloading of CNC machines, part transport, and assembly lines, ensuring fast operations and high repeatability.
Key advantages
- Load capacity up to 35 kg, ideal for many types of details and tasks,
- Fanuc 35kg, 6 axes,
- 20 drawers 600mm x 800mm,
- Maximum height 100mm,
- SoftBoxes Automation Software,
- Fast movements and precision of operation, which supports increased productivity,
- Light and compact design – immediately ready for integration into the production line.
Application
The AVNI 35 kg system is perfect for applications such as:
- Automation of CNC loading and unloading processes,
- Transport of parts between stations,
- Assembly and packaging work in industrial lines.
Key features
- Works with various brands of CNC machines – no need for an additional robot interface (for Fanuc, Haas NGC, OPC UA),
- Drawer storage on an independent trolley – quick replacement of parts and easy internal logistics,
- Integrated SoftBox and Mixbox software – quick programming without coding knowledge,
- Remote operation and programming – parts definition possible from an external computer,
- Touchscreen and operator-friendly interface – easy to use even for unskilled users.
Standard equipment
- Part Control Station (SPC), computer, touch screen,
- Automatic calibration and part configuration software,
- Double grippers with adjustable fingers,
- Automatic door and security system (fencing),
- Operation without interrupting the robot's operation (parallel loading/unloading),
- Functions: blowing, positioning, repositioning,
- CE mark, FANUC I-pendant, quick installation and conversion.
Remote programming and management
- Possibility of remote definition of details via SoftBoxes from another computer,
- Access to the robot via the FANUC I-pendant and the operator's computer,
- Roboguide – optional professional simulation tool (paid).
Mixbox Software
- Allows different parts in each drawer,
- Communication with CNC machines without additional hardware (e.g. Fanuc FOCAS, Haas NGC),
- Support for OPC UA, Profinet, Modbus protocols.
Why Ileri Avni 35 kg?
The AVNI 35 kg system combines the robustness of a FANUC robot with a well-thought-out design and high levels of automation. It offers an excellent balance of performance, precision, and ease of integration, while simultaneously saving space on the production floor.
Technical Parameters
| SKU: | Ileri Avni 35kg |
|---|---|
| Brand: | CNC Ileri |
| Pallet width (mm): | 800.00 |
| Number of pallets: | 10.00 |
| Pallet length (mm): | 1,000.00 |
| Workpiece weight (wrist) (kg): | 35.00 |
| Software: | SoftBoxy Automation |
| Maximum robot payload (kg): | 35.00 |
| Reach radius in (mm): | 1,831.00 |
| Number of drawers: | 10.00 |
| Maximum load capacity per drawer (kg): | 250.00 |
| Maximum workpiece height (mm): | 200.00 |
| Number of axes: | 6 |
| Workpiece magazine type: | szufladowy |
| Drawer dimensions (mm): | 600 x 800 |
| Workpiece inspection station: | tak |
| Loading / unloading function during robot operation: | tak |
| Air blow function: | tak |
| Gripper tower: | tak (kondżektor, chwytaki, palce) |
| Software packages: | Softboxy, Easysoft, Autoteach |
| Teach Pendant: | tak |
| Calibration package: | tak, automatyczna kalibracja |
| Remote system support: | tak |
| Positioning / rotary station: | tak, jeśli potrzebna |
| Separators: | tak |
FAQ
What is Ileri Avni 35 kg?
The Ileri Avni 35 kg is an integrated automation system based on a FANUC robot with a payload capacity of 35 kg, designed to operate up to two CNC machines, handle workpiece transport, and perform simple assembly tasks. The system can operate with one or two storage towers, increasing its production flexibility.
What are the basic parameters of the system?
The system uses a 6-axis FANUC 35 kg robot, has 20 600 x 800 mm drawers, and can handle workpieces up to 100 mm high. The product source also states that the drawers are part of a drawer magazine on a separate cart.
What is Avni 35 kg used for?
The solution is designed to automate CNC loading and unloading, transport workpieces between stations, and assembly and packaging operations in industrial lines. The manufacturer also indicates compatibility with up to two CNC machines.
What are the benefits of automation?
The system increases productivity, improves repeatability, and enables 24/7 operation in a small footprint. It also enables parallel loading and unloading without interrupting the robot's operation.
How do SoftBoxes and Mixboxes work?
SoftBoxy enables rapid programming and remote part definition, while Mixbox allows for handling different parts in each drawer. The system communicates with CNC machines via Fanuc FOCAS, Haas NGC, OPC UA, Profinet, and Modbus, simplifying integration.
What does the standard equipment look like?
Standard features include a workpiece inspection station, computer, touchscreen, automatic calibration, dual grippers with adjustable fingers, automatic and safety door systems, CE certification, and a FANUC I-pendant. This equipment supports quick commissioning and easy setup.
Does the system work with different CNC machines?
Yes, the Avni 35 kg is designed to work with a wide range of machine brands without the need for an additional robot interface for select platforms, such as Fanuc, Haas NGC, and OPC UA. This allows for extensive integration into existing lines.
For which companies will it be the best choice?
It's a good choice for companies looking to automate one or two CNC machines while maintaining high performance and a compact footprint. It offers the greatest value where flexibility, remote programming, and space savings are key.
