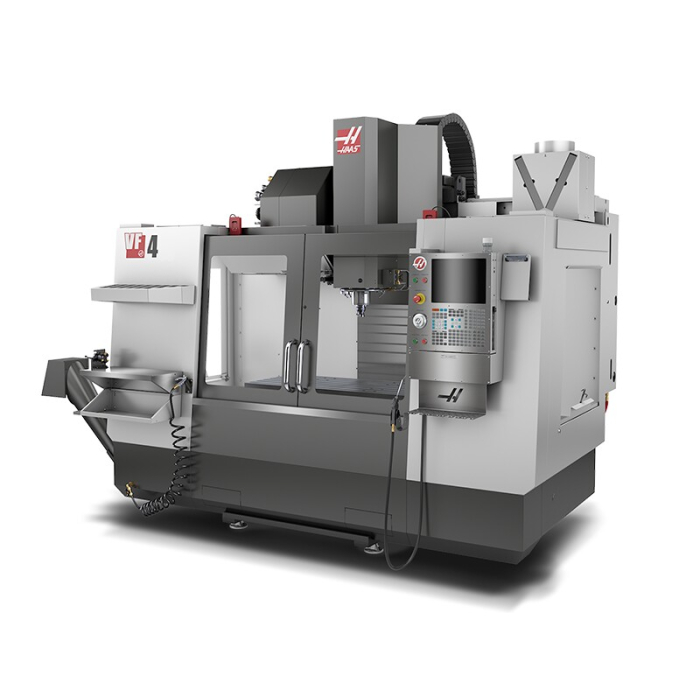

Haas VF-4-EU Milling Machine
SKU: VF-4-EU
VF-4-EU milling machine The Haas VF-4-EU is a special European version of one of the best-selling VF-4 vertical mills, offered at an attractive price specifically for the EU market. The machine offers greater X- and Z-axis travel while maintaining the compact dimensions of the VF series, ideally meeting the needs of European manufacturing companies. Key features: 10,000 rpm direct drive spindle – fast and precise cutting with minimal maintenance requirements, 30+1 tool changer (side) – smooth and quick tool change, reducing cycle time, Preparation for a through-spindle cooling system for better tool performance and machining quality, Special EU configuration – favorable price offer prepared for the European market. Benefits for the user: High efficiency – fast spindle and dynamic tool changing system shorten production time, Flexibility – possibility of carrying out both serial production and individual details, Cost benefits – attractive price and proven Haas reliability, Versatility – a machine adapted to a wide range of industrial applications. The Haas VF-4-EU is a CNC machining center that offers a larger work envelope, a fast and precise spindle, and an attractive price, making it one of the most cost-effective solutions in its class for companies in Europe.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
VF-4-EU milling machine
The Haas VF-4-EU is a special European version of one of the best-selling VF-4 vertical mills, offered at an attractive price specifically for the EU market. The machine offers greater X- and Z-axis travel while maintaining the compact dimensions of the VF series, ideally meeting the needs of European manufacturing companies.
Key features:
- 10,000 rpm direct drive spindle – fast and precise cutting with minimal maintenance requirements,
- 30+1 tool changer (side) – smooth and quick tool change, reducing cycle time,
- Preparation for a through-spindle cooling system for better tool performance and machining quality,
- Special EU configuration – favorable price offer prepared for the European market.
Benefits for the user:
- High efficiency – fast spindle and dynamic tool changing system shorten production time,
- Flexibility – possibility of carrying out both serial production and individual details,
- Cost benefits – attractive price and proven Haas reliability,
- Versatility – a machine adapted to a wide range of industrial applications.
The Haas VF-4-EU is a CNC machining center that offers a larger work envelope, a fast and precise spindle, and an attractive price, making it one of the most cost-effective solutions in its class for companies in Europe.
Technical Parameters
| SKU: | VF-4-EU |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 457 |
| Table width (mm): | 1321 |
| Minimum distance between spindle and table (mm): | 107.00 |
| Maximum spindle-to-table distance (mm): | 742.00 |
| Workpiece clamping surface (mm): | 1321x457 |
| Number of T-slots: | 5 |
| Szerokość rowków (mm): | 15.9 |
| Distance between T-slot centers (mm): | 80.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 1,588.00 |
| Maximum workpiece weight (kg): | 1,588.00 |
| X-axis travel (mm): | 1270 |
| Y-axis travel (mm): | 508 |
| Z-axis travel (mm): | 635 |
| X-axis cutting feedrate (m/min): | 16.5 |
| Y-axis cutting feedrate (m/min): | 16.50 |
| Z-axis cutting feedrate (m/min): | 16.50 |
| Maximum spindle speed (rpm): | 10000 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 30 |
| Tool-to-tool change time (s): | 2.8 |
| Tool-to-tool / Chip-to-chip / change time (s): | 3.60 |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 330.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 11.30 |
| Maximum Y-axis drive pulling force (kN): | 11.30 |
| Maximum Z-axis drive pulling force (kN): | 18.60 |
| Machine dimensions (length x width x height) (mm): | 4210x2434x3093 |
| Machine weight (kg): | 5316 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
