Product description

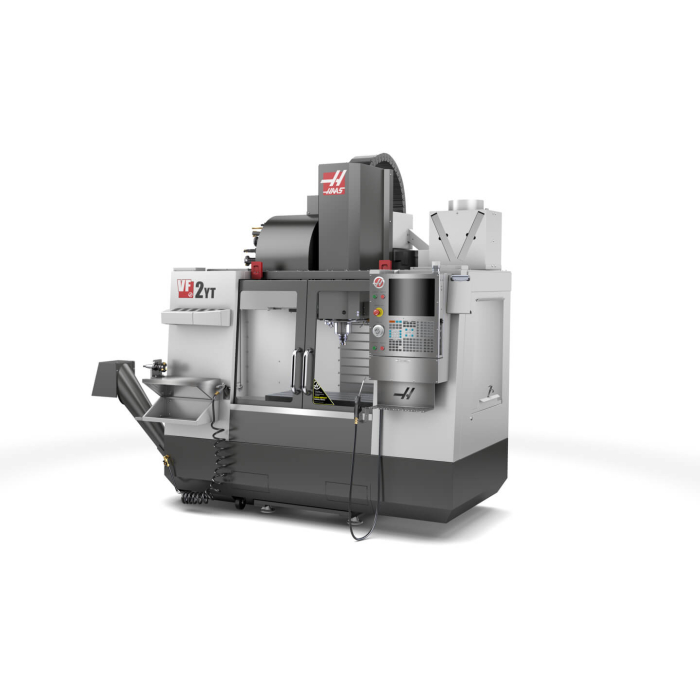

VF-2YT milling machine
The VF-2YT is an evolution of one of the most popular models in the VF series, offering an increased range of Y-axis travel. This allows the machine to provide even greater flexibility in machining wider and more complex workpieces, while retaining all the advantages of the VF series – power, precision, and availability at an attractive price.
Key features:
- Extended Y-axis range – greater possibilities when machining larger-sized parts and complex geometries,
- Direct drive spindle – high power and rotational speed ensuring accuracy and smooth machining,
- A wide range of configuration options – full adaptation of the machine to user requirements and production type,
- Proven design of the VF series – robustness, reliability and intuitive operation,
- Attractive price – optimal ratio of investment costs to technological possibilities.
Benefits for the user:
- Flexibility – the ability to implement more complex projects thanks to the larger Y-axis range,
- Versatility – an ideal solution for small, medium and large manufacturing companies,
- Precision and efficiency – a stable spindle and strong construction guarantee repeatable results,
- Personalization – configuration tailored to individual needs and industry requirements,
- Versatility of applications – from small-scale production to more demanding industrial processes.
The Haas VF-2YT CNC machining center combines a larger work envelope, spindle power, and extensive configuration options, making it the ideal choice for companies looking for a reliable and flexible machine for a variety of production tasks.
Technical Parameters
| SKU: | VF-2YT |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 457 |
| Table width (mm): | 914 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 610.00 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 1,361.00 |
| Maximum workpiece weight (kg): | 1,361.00 |
| X-axis travel (mm): | 762 |
| Y-axis travel (mm): | 508 |
| Z-axis travel (mm): | 508 |
| Y-axis cutting feedrate (m/min): | 16.50 |
| Z-axis cutting feedrate (m/min): | 16.50 |
| Maximum spindle speed (rpm): | 8100 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 20 |
| Tool-to-tool / Chip-to-chip / change time (s): | 2.20 |
| Maximum tool diameter / all tools / (mm): | 89 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 280.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 11.30 |
| Maximum Y-axis drive pulling force (kN): | 11.30 |
| Maximum Z-axis drive pulling force (kN): | 18.60 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 3402 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
FAQ
The VF-2YT is an improved version of the classic VF-2, equipped with an enlarged Y axis, which significantly increases clamping and processing possibilities.
In practice, this means: VF-2 + larger working area without increasing the machine's dimensions.
- Passage: 762 × 508 × 508 mm (X/Y/Z)
- Spindle: 8100 rpm, direct drive
- Power: 22.4 kW
- Tool magazine: 20 items
- Rapid feed: approx. 25 m/min
Most important: +100mm in Y axis relative to VF-2.
“YT” = larger Y-axis range (508 mm instead of 406 mm).
In practice, this gives:
- more space for vices
- ability to work on several details at the same time
- larger field and instrumentation
- Y-axis: VF-2 406mm / VF-2YT 508mm
- Scope of work: standard / extended
- Versatility: high/very high
This +100 mm in the Y axis makes a huge difference in production.
1. More flexible than VF-2
→ more space = more mounting options
2. Possibility to work on several details at once
→ greater efficiency without increasing the machine size
3. Still a compact machine
→ no large footprint increase
4. Great price-performance ratio
→ much cheaper than VF-3, and often sufficient
5. Perfect for 4 axles/trunnions
→ more space for the turntable
- VF-2YT: standard speed (8100 rpm)
- VF-2SS: Faster but smaller Y axis
- VF-2SSYT: Fast + Large Y-axis (Best performance)
VF-2YT = versatility and space.
VF-2SSYT = Production and Speed.
- VF-2YT: more compact and cheaper
- VF-3: Larger X-axis (~1000 mm)
If you don't need long details, the VF-2YT is more cost effective.
- small- and medium-series production
- several details on the table at the same time
- aluminum and steel
- workshops needing more flexibility
The VF-2YT is one of the most underrated Haas machines.
- retains the versatility of the VF-2
- adds a real workspace
- often eliminates the need to purchase a VF-3
VF-2YT = maximum versatility at a reasonable cost.
