Product description

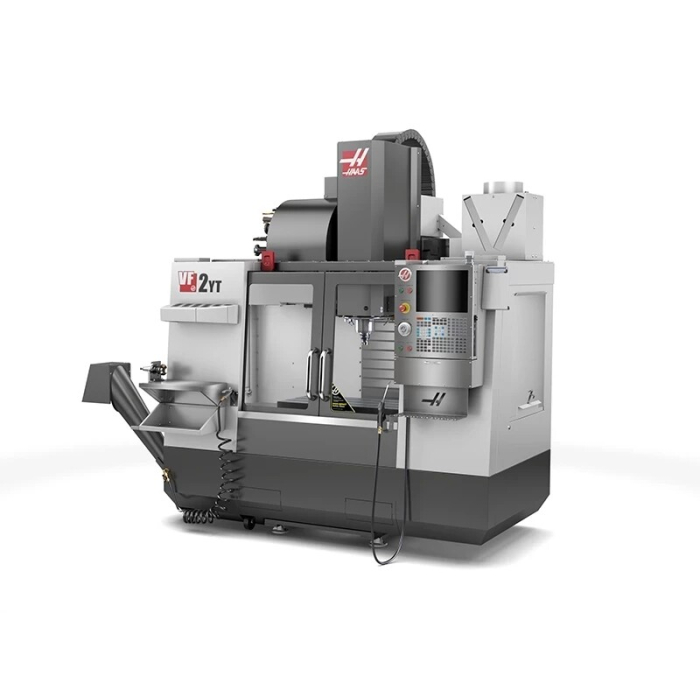

VF-2YT-EU milling machine
The Haas VF-2YT-EU is a special version of the best-selling VF-2 model, designed specifically for the European market. It features an extended Y-axis range, allowing for larger workpieces to be machined in a compact machining center. Furthermore, it's available at a special price, making it an exceptional investment.
Key features:
- Extended Y axis – more workspace for working with larger elements,
- 10,000 rpm spindle, direct drive – fast and efficient machining with high precision,
- Automatic tool changer 30+1 (lateral) – quick tool change and greater process continuity,
- Through-spindle cooling preparation for improved performance and tool life.
Benefits for the user:
- Greater flexibility – thanks to the longer Y axis, it is possible to process larger details without the need for a larger machine,
- High productivity – high-speed spindle and tool changer minimize cycle times,
- A safe investment – exceptionally favorable price and status as the most popular Haas model,
- Versatile use – suitable for both individual and serial production,
- Reliable precision – stable results thanks to proven Haas design.
The Haas VF-2YT-EU is a CNC machining center that offers greater Y-axis capabilities, complete reliability and an attractive price, making it the ideal choice for companies in Europe looking for a versatile and proven machine.
Technical Parameters
| SKU: | VF-2YT-EU |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 457 |
| Table width (mm): | 914 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 610.00 |
| Workpiece clamping surface (mm): | 914x457 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 15.9 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 1,361.00 |
| Maximum workpiece weight (kg): | 1,361.00 |
| X-axis travel (mm): | 762 |
| Y-axis travel (mm): | 508 |
| Z-axis travel (mm): | 508 |
| X-axis cutting feedrate (m/min): | 16.5 |
| Y-axis cutting feedrate (m/min): | 16.50 |
| Z-axis cutting feedrate (m/min): | 16.50 |
| Maximum spindle speed (rpm): | 10000 |
| Maximum spindle torque (Nm): | 112 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 30 |
| Tool-to-tool change time (s): | 2.8 |
| Tool-to-tool / Chip-to-chip / change time (s): | 3.60 |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 280.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 11.30 |
| Maximum Y-axis drive pulling force (kN): | 11.30 |
| Maximum Z-axis drive pulling force (kN): | 18.60 |
| Machine dimensions (length x width x height) (mm): | 3123x3640x2733 |
| Machine weight (kg): | 3539 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
FAQ
The VF-2YT-EU is the European version of the popular VF-2YT, i.e. the VF-2 with an enlarged Y axis, prepared as a production standard for the EU market.
This is a machine that combines the versatility of the VF-2 + larger workspace + EU package.
- Passage: 762 × 508 × 508 mm (X/Y/Z)
- Spindle: 10,000 rpm, direct drive
- Power: 22.4 kW
- Tool magazine: 30+1 (side mount)
- Cone: 40 (SK40 / CAT40)
- Max. table load: approx. 1360 kg
“YT” = extended Y axis (508mm instead of 406mm).
In practice it gives:
- more space for vices and tools
- the ability to process several details at once
- greater production flexibility
“EU” is the European configuration:
- standardized production equipment
- often a better starter package
- adaptation to the EU market (power supply, standards, options)
- VF-2: Y-axis = 406 mm
- VF-2YT-EU: Y-axis = 508 mm
+100 mm Y = real advantage in production:
- more details on the table
- larger handles
- fewer retoolings
1. Larger workspace without a larger machine
→ more mounting options without changing the footprint
2. Very high versatility
→ one machine for many types of production
3. 30+1 tools as standard
→ less downtime, more automation
4. Perfect for mass production
→ stable, repeatable, fast work organization
5. Very good price/performance ratio
→ often a cheaper alternative to the VF-3
- VF-2YT-EU: 10k rpm, universal
- VF-2SS: 12k rpm, faster
- VF-2SSYT: 12k rpm + larger Y + highest efficiency
YT-EU = space and flexibility.
SSYT = maximum production.
- small- and medium-series production
- aluminum, steel, stainless steel
- details requiring several vices
- workshops with limited space
The VF-2YT-EU is one of the most practical Haas machines in Europe.
- maintains the VF-2 standard
- adds a real workspace in the Y axis
- offers a production-ready configuration
If the VF-2 is the "standard", then the VF-2YT-EU is the most logical upgrade without going VF-3.
