Product description

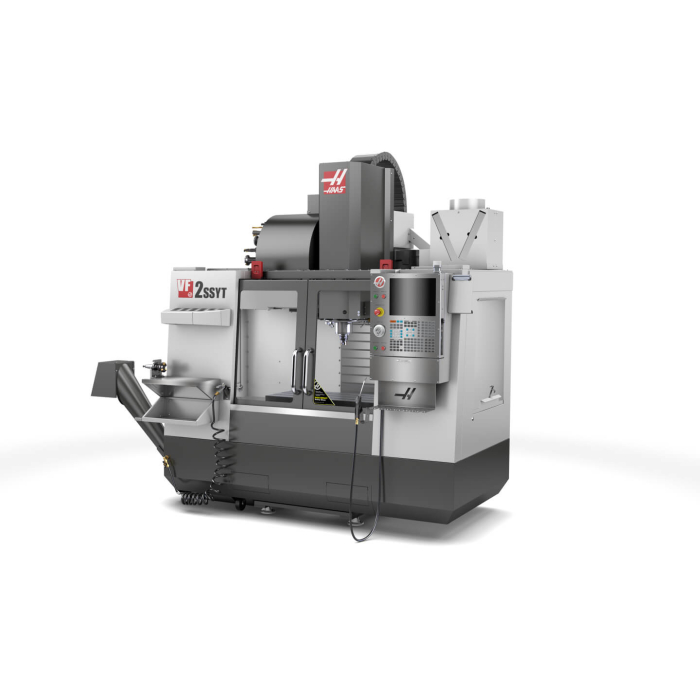

Haas VF-2SSYT Milling Machine
The VF-2SSYT is a super-fast CNC machining center designed for maximum productivity and precision. The machine combines the features of the Super Speed (SS) series—a dynamic spindle, ultra-fast tool changer, and lightning-fast axis movements—with an expanded Y-axis range, providing even greater flexibility for machining large and complex parts.
Key features:
- 12,000 rpm spindle, direct drive – fast and precise machining of various materials,
- Ultra-fast 30+1 tool changer (lateral) – smooth tool change without unnecessary downtime,
- Dynamic fast movements – high speed in all axes allows for significantly reduced cycle times,
- Additional range in the Y axis – larger workspace for processing large and more demanding details,
- Proven VF series design – stability, reliability and ease of use.
Benefits for the user:
- Super-fast production – shorter processing cycles and greater efficiency,
- Greater technological possibilities – processing of details beyond the standard working range of the VF-2SS,
- Flexibility and versatility – the ideal solution for a wide range of applications, from mass production to precision components,
- Maximum automation – quick tool changes and dynamic travel minimize manual operation,
- Optimal price-performance ratio – super-fast capabilities in a compact machine.
The Haas VF-2SSYT is a CNC machining center that delivers super-fast operation, increased machining capacity, and complete precision.
Technical Parameters
| SKU: | VF-2SSYT |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 457 |
| Table width (mm): | 914 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 610.00 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 680.00 |
| Maximum workpiece weight (kg): | 680.00 |
| X-axis travel (mm): | 762 |
| Y-axis travel (mm): | 508 |
| Z-axis travel (mm): | 508 |
| Y-axis cutting feedrate (m/min): | 21.20 |
| Z-axis cutting feedrate (m/min): | 21.20 |
| Maximum spindle speed (rpm): | 12000 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 24 |
| Tool-to-tool / Chip-to-chip / change time (s): | 2.20 |
| Maximum tool diameter / all tools / (mm): | 76 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.00 |
| Maximum tool length (mm): | 280.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 8.87 |
| Maximum Y-axis drive pulling force (kN): | 8.87 |
| Maximum Z-axis drive pulling force (kN): | 13.72 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 3810 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Number of axes: | 3 (opcja 4/5) |
FAQ
VF-2SSYT is an extended and super-fast version of VF-2, combining SS (Super Speed) – maximum performance and YT (larger Y axis) – larger working area.
In practice: VF-2SS + larger table and greater production flexibility.
- Passage: 762 × 508 × 508 mm (X/Y/Z)
- Spindle: 12,000 rpm (direct drive)
- Magazine: 30+1 tools (side mount)
- Very fast travel and tool changes
- Cone: SK40 / CAT40
One of the most productive Haas 3-axis machines.
- Y-axis: VF-2SS 406mm / VF-2SSYT 508mm
- Efficiency: very high / very high
- Flexibility: Standard / More
Key: +100 mm in Y axis = huge difference in practice.
1. Maximum efficiency + greater operating range
→ combines SS speed with YT space
2. Perfect for mass production
→ fast cycles + large tool magazine
3. Greater mounting flexibility
→ larger table = more vices/tools
4. A real alternative to the VF-3
→ often enough instead of a larger machine
5. Ready for automation
→ robots, pallets, 4/5 axis without restrictions
- VF-2: 8100 rpm, 20 tools
- VF-2SSYT: 12,000 rpm + 30+1 tools + larger Y
The difference is efficiency ×2 in production practice.
- VF-2SSYT: Larger X-Range (762mm)
- VF-1SSYT: more compact
VF-2SSYT = full production + larger details.
- VF-2SSYT: cheaper, more compact
- VF-3SS: Larger X-axis (~1000 mm)
If the detail fits, the VF-2SSYT is more cost-effective.
- serial and large-scale production
- aluminum (HSM), steel, stainless steel
- automotive, aerospace
- details requiring multiple operations
VF-2SSYT = the best compromise in the entire Haas lineup.
- faster than the VF-2
- larger than VF-2SS
- more versatile than the VF-1SSYT
- cheaper than the VF-3SS
