Product description

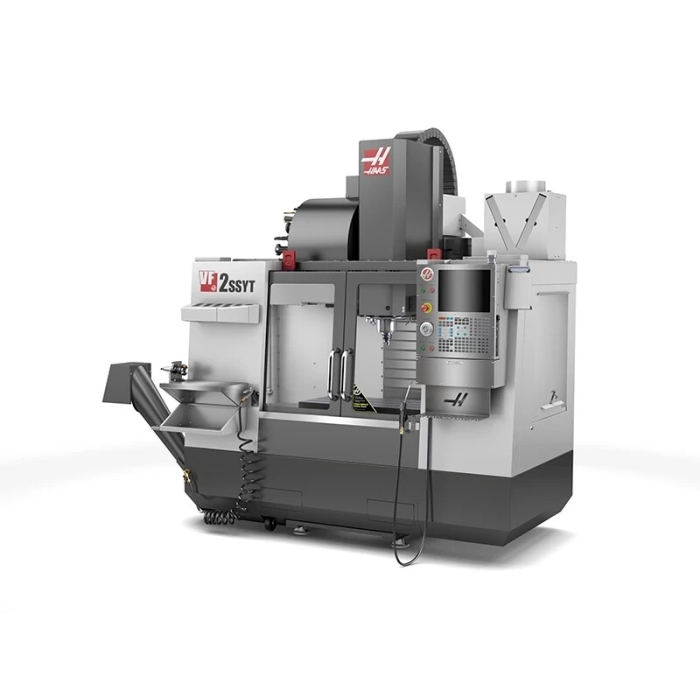

Haas VF-2SSYT-EU Milling Machine
The VF-2SSYT-EU is a milling machine enhanced with a Super Speed (SS) configuration and an extended Y-axis for a larger workspace. It's the ideal solution for companies requiring ultra-fast production, precision, and flexibility in machining larger workpieces. It's also available at an attractive price specifically for the EU market.
Key features:
- Super-fast 12,000 rpm direct drive spindle – fast and precise machining,
- Super-fast 30+1 tool changer (lateral) – quick tool change without wasting time,
- Preparation for through-spindle cooling – effective chip removal and longer tool life,
- WIPS (Wireless Intuitive Probing System) – a wireless tool measurement and setting system that facilitates and speeds up the preparation of the machine for work,
- Coolant Maintenance Package – Oil mist condenser, automatic coolant refill and oil skimmer ensure stable, clean machining conditions,
- Chip ejector – automatic chip removal for better ergonomics and order in the machine.
Benefits for the user:
- Larger working range (Y axis) – possibility of processing larger details in a compact machine,
- Super-fast production – shorter cycle times thanks to dynamic SS configuration,
- Maximum automation – WIPS and coolant systems shorten preparation time and reduce manual handling,
- High profitability – special price offer for the European market,
- Proven Haas reliability – a stable design that performs efficiently in intensive daily use.
The Haas VF-2SSYT-EU combines speed, precision, and greater machining flexibility, making it the ideal choice for shops in Europe that want maximum productivity in a compact CNC center.
Technical Parameters
| SKU: | VF-2SSYT-EU |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 457 |
| Table width (mm): | 914 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 610.00 |
| Workpiece clamping surface (mm): | 914x457 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 15.9 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 680.00 |
| Maximum workpiece weight (kg): | 680.00 |
| X-axis travel (mm): | 762 |
| Y-axis travel (mm): | 508 |
| Z-axis travel (mm): | 508 |
| X-axis cutting feedrate (m/min): | 21.2 |
| Y-axis cutting feedrate (m/min): | 21.20 |
| Z-axis cutting feedrate (m/min): | 21.20 |
| Maximum spindle speed (rpm): | 12000 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 30 |
| Tool-to-tool change time (s): | 1.8 |
| Tool-to-tool / Chip-to-chip / change time (s): | 2.40 |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.00 |
| Maximum tool length (mm): | 280.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 8.87 |
| Maximum Y-axis drive pulling force (kN): | 8.87 |
| Maximum Z-axis drive pulling force (kN): | 13.72 |
| Machine dimensions (length x width x height) (mm): | 3123x3640x2733 |
| Machine weight (kg): | 3539 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
FAQ
The VF-2SSYT-EU is the European version of the most advanced VF-2 model, combining SS (Super Speed) – maximum performance and YT (larger Y axis) – larger working range.
In practice, it is a fully-fledged premium production machine in the VF series.
- Passage: 762 × 508 × 508 mm (X/Y/Z)
- Spindle: 12,000 rpm (direct drive)
- Magazine: 30+1 tools (side mount)
- Cone: SK40 / CAT40
- Very fast travel and tool changes
Machine designed for minimal cycle time and high productivity.
- dedicated to the European market
- often available in more attractive price packages
- equipped with "production" kits as standard
More as standard = less retrofitting.
1. Maximum performance in the VF series
→ 12k rpm spindle + rapid traverses = shorter cycles
2. Enlarged Y axis (508 mm)
→ more space for tooling and several vices
3. Large tool storage (30+1)
→ real production without downtime
4. Ready production line
→ WIPS, through-spindle cooling preparation, coolant management
5. Great price-performance ratio
→ often replaces VF-3 at lower cost
- VF-2SS: smaller Y axis (406 mm)
- VF-2SSYT-EU: Larger Y-axis (508mm)
The difference is huge with a few details on the table and larger devices.
- VF-2: 8100 rpm, 20 tools
- VF-2SSYT-EU: 12,000 rpm + 30+1 + larger Y
In practice, the VF-2SSYT is much faster and more productive.
- VF-3SS: Larger X range (~1000 mm)
- VF-2SSYT: cheaper and more compact
If the detail fits, the VF-2SSYT-EU is more cost-effective.
- serial and large-scale production
- aluminum (HSM), steel, stainless steel
- automotive, aerospace
- details requiring many operations and tools
The VF-2SSYT-EU is the most complete and cost-effective Haas production machine.
- fast like SS models
- big as YT
- cheaper than larger centers
If the detail is within its range, it is often the best choice in the entire VF series.
