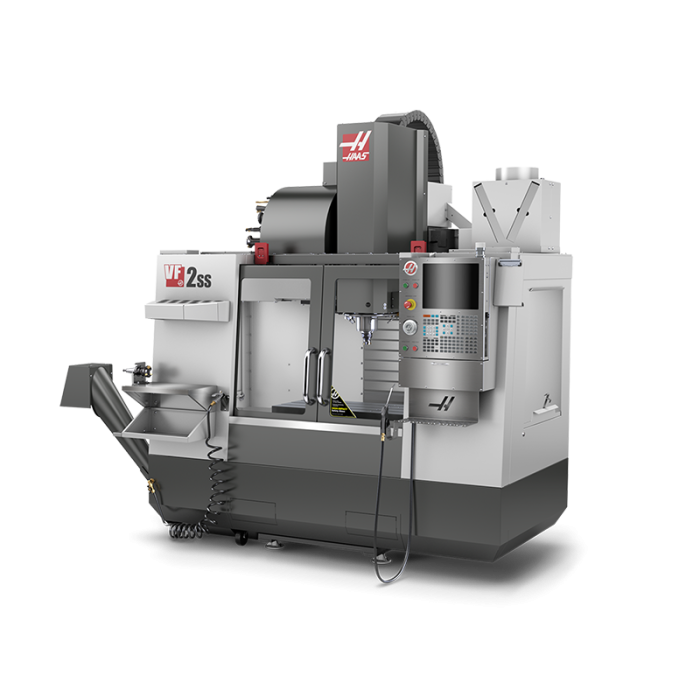

Haas VF-2SS Vertical Milling Machine
SKU: VF-2SS
Haas VF-2SS High-Speed Vertical Machining Center The Haas VF-2SS is a super-fast vertical machining center designed for maximum productivity and reduced cycle times. The machine combines a 12,000-rpm direct-drive spindle, an ultra-fast tool changer, and high-speed motions in all axes, making it ideal for high-volume production and precision machining of demanding parts. The VF-2SS is the most popular model in the Haas Super-Speed series, offering outstanding performance in a compact package. Key Features 12,000 rpm direct drive spindle, Super-fast tool magazine that shortens changeover time, High travel speeds on all axes – for shorter cycle times and higher productivity, Working ranges: X axis: 762 mm, Y axis: 406 mm, Z axis: 508 mm, Compact design with great technological possibilities, Perfect for working in environments requiring speed, precision and reliability. Application: Machining of precision parts and molds, Serial production of parts made of aluminum, steel and other materials, Aerospace, automotive and tool industries, Production environments focused on high performance and short cycle times.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas VF-2SS High-Speed Vertical Machining Center
The Haas VF-2SS is a super-fast vertical machining center designed for maximum productivity and reduced cycle times. The machine combines a 12,000-rpm direct-drive spindle, an ultra-fast tool changer, and high-speed motions in all axes, making it ideal for high-volume production and precision machining of demanding parts. The VF-2SS is the most popular model in the Haas Super-Speed series, offering outstanding performance in a compact package.
Key Features
- 12,000 rpm direct drive spindle,
- Super-fast tool magazine that shortens changeover time,
- High travel speeds on all axes – for shorter cycle times and higher productivity,
- Working ranges: X axis: 762 mm, Y axis: 406 mm, Z axis: 508 mm,
- Compact design with great technological possibilities,
- Perfect for working in environments requiring speed, precision and reliability.
Application:
- Machining of precision parts and molds,
- Serial production of parts made of aluminum, steel and other materials,
- Aerospace, automotive and tool industries,
- Production environments focused on high performance and short cycle times.
Technical Parameters
| SKU: | VF-2SS |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 914 |
| Table width (mm): | 914 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 610.00 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 15.90/16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 680.00 |
| Maximum workpiece weight (kg): | 680.00 |
| X-axis travel (mm): | 762 |
| Y-axis travel (mm): | 406 |
| Z-axis travel (mm): | 508 |
| Maximum spindle speed (rpm): | 12000 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Tool-to-tool / Chip-to-chip / change time (s): | 2.20 |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 280.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 8.87 |
| Maximum Y-axis drive pulling force (kN): | 8.87 |
| Maximum Z-axis drive pulling force (kN): | 13.72 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
