Product description

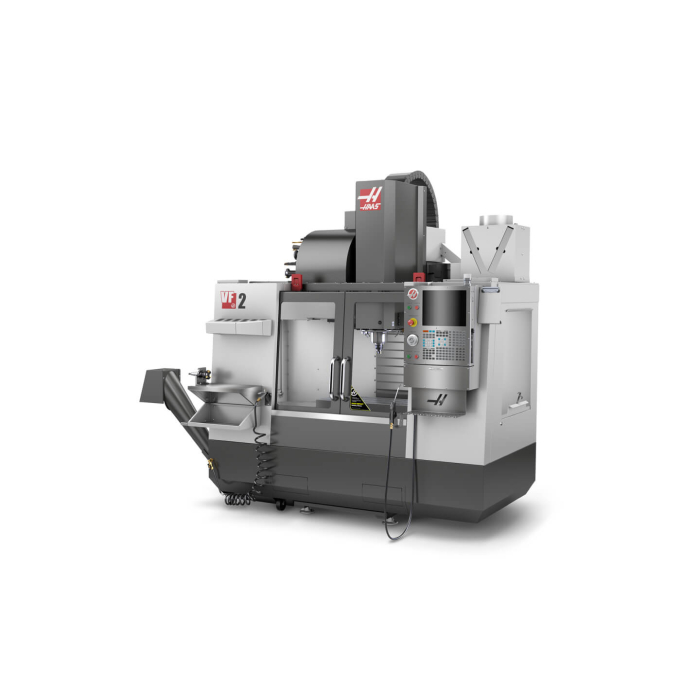

Haas VF-2 Milling Machine
The VF-2 is the most frequently chosen machining center in the VF series, combining high precision, reliability, and an attractive price. Thanks to its wide range of configuration options and extensive equipment options, the machine is ideal for use in a variety of industries – from single-unit production, through tool shops, to industrial mass production.
Key features:
- Versatility and performance – ideal for a wide range of machining applications,
- Rich equipment options – allow you to tailor the machine to your specific production needs,
- Precision and stability – proven Haas design for long life,
- The most popular model in the VF series – a trusted choice in thousands of plants worldwide,
- Excellent price-quality ratio – the optimal solution for every manufacturing company.
Benefits for the user:
- Reliability in everyday operation – stable performance in continuous production mode,
- Versatility – suitable for any industry: from automotive to aviation and tool manufacturing,
- Flexibility – can be configured according to the company's needs,
- Investment economy – one of the best value for money in its class.
The Haas VF-2 machining center has become synonymous with reliability and versatility, providing companies with a precise and efficient solution for a wide range of applications.
Technical Parameters
| SKU: | VF-2 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 356 |
| Table width (mm): | 914 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 610.00 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 1,361.00 |
| Maximum workpiece weight (kg): | 1,361.00 |
| X-axis travel (mm): | 762 |
| Y-axis travel (mm): | 406 |
| Z-axis travel (mm): | 508 |
| Y-axis cutting feedrate (m/min): | 16.50 |
| Z-axis cutting feedrate (m/min): | 16.50 |
| Maximum spindle speed (rpm): | 8100 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 20 |
| Tool-to-tool / Chip-to-chip / change time (s): | 4.50 |
| Maximum tool diameter / all tools / (mm): | 89 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 280.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 11.30 |
| Maximum Y-axis drive pulling force (kN): | 11.30 |
| Maximum Z-axis drive pulling force (kN): | 18.60 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 3311 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
FAQ
The VF-2 is a CNC vertical machining center, considered the most versatile and most frequently chosen Haas machine. It's the "workhorse" of the shop, suitable for most manufacturing applications.
- Passage: 762 × 406 × 508 mm (X/Y/Z)
- Spindle: 8100 rpm, direct drive
- Power: 22.4 kW (30 hp)
- Tool magazine: 20 items
- Rapid feed: approx. 25 m/min
- Table load capacity: ~1360 kg
Industry standard in the 40 taper class.
1. The best versatility in the VF series
→ handles most production details, estimated at up to 70–80%
2. Perfect balance: size / price / possibilities
→ larger than the VF-1, but much cheaper than the VF-3
3. Enough power for steel and aluminum
→ real production, not just prototypes
4. Huge configuration flexibility
→ versions: YT, SS, 5-axis (TR)
5. Industry standard
→ easy to find operators, parts and service
- greater X-axis range (762 mm vs 508 mm)
- larger table and detail
- higher versatility
The VF-1 wins on price and compactness.
The VF-2 wins in virtually every production.
- VF-1YT: similar Y/Z but shorter X axis
- VF-1SSYT: similar performance, smaller range
VF-2 still better for larger details.
The VF-1SSYT may be faster, but less versatile.
- VF-2: more compact and cheaper
- VF-3: larger workspace (~1000 mm X)
VF-3 only when you really need greater detail.
- serial and small-scale production
- aluminum, steel, plastics
- machine parts, molds, components
This is the most "do-it-all" Haas machine.
Yes – that is its main use.
It can operate in multiple shifts and is often used as the main machine in a plant.
1. Versatile – does almost everything
2. Proven design – market standard
3. Very good price-performance ratio
4. Scalability (options, automation, 4/5 axes)
5. Safe choice – “you can’t go wrong”
