Haas VF-1YT-EU Milling Machine
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description

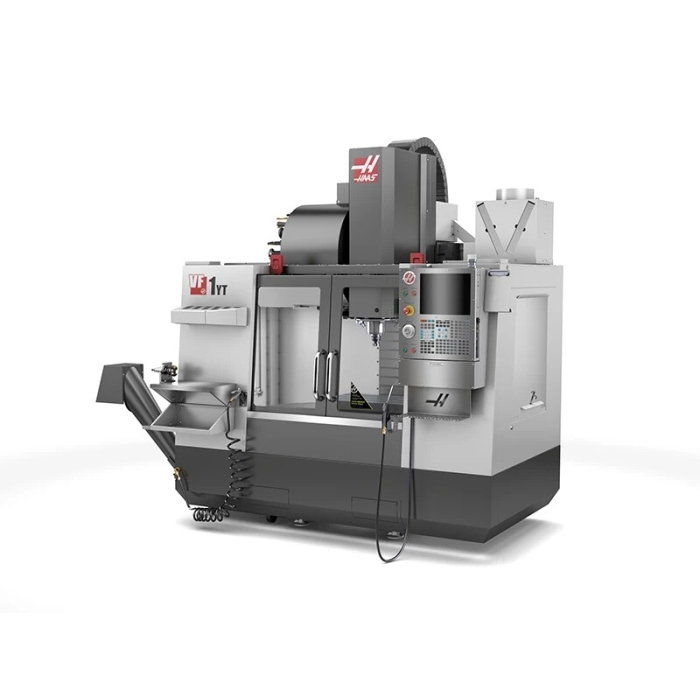

Haas VF-1YT-EU Milling Machine
The VF-1YT-EU is a special version of the flagship VF-1 model, designed for the European market. The machine features an extended Y-axis range, providing a larger workspace and the ability to process larger workpieces. Furthermore, this model is available at an attractive, special price, making it an exceptionally cost-effective choice.
Key features:
- Extended Y axis – greater flexibility when processing wider and more demanding elements,
- The flagship VF-1 design – robustness, precision and proven reliability,
- Special European version (EU) – adapted to the standards and needs of the European market,
- Attractive price – a unique offer while maintaining the full capabilities of VF,
- Compact and versatile – ideal for workshops, small and medium-sized production plants.
Benefits for the user:
- Larger work range – thanks to the longer Y axis, you can perform additional, more complex operations,
- Investment economy – the specially priced version ensures a quick return on investment,
- Flexible applications – suitable for various industries, from tool shops to mass production,
- Reliable Haas technology – a guarantee of stability and precision in everyday production.
The Haas VF-1YT-EU is a CNC milling machine that combines enhanced performance, a proven design, and an exceptionally competitive price, making it the ideal choice for companies in Europe investing in a reliable and modern machining center.
Technical Parameters
| SKU: | VF-1YT-EU |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 457 |
| Table width (mm): | 659 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 610.00 |
| Workpiece clamping surface (mm): | 659x457 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 15.9 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 1,361.00 |
| Maximum workpiece weight (kg): | 1,361.00 |
| X-axis travel (mm): | 508 |
| Y-axis travel (mm): | 508 |
| Z-axis travel (mm): | 508 |
| X-axis cutting feedrate (m/min): | 16.5 |
| Y-axis cutting feedrate (m/min): | 16.50 |
| Z-axis cutting feedrate (m/min): | 16.50 |
| Maximum spindle speed (rpm): | 10000 |
| Maximum spindle torque (Nm): | 112 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 30 |
| Tool-to-tool change time (s): | 2.8 |
| Tool-to-tool / Chip-to-chip / change time (s): | 3.60 |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 280.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 11.34 |
| Maximum Y-axis drive pulling force (kN): | 11.30 |
| Maximum Z-axis drive pulling force (kN): | 18.60 |
| Machine dimensions (length x width x height) (mm): | 3045x2530x2746 |
| Machine weight (kg): | 3629 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
FAQ
The VF-1YT-EU is an improved version of the basic VF-1 with an extended operating range, particularly in the Y axis, designed specifically for the European market. It combines a compact design with parameters similar to larger models.
- Passes: 508 × 508 × 508 mm (X/Y/Z)
- Spindle: 10,000 rpm, direct drive
- Power: 22.4 kW
- Tool magazine: 30+1 (side mount)
- Rapid feed: approx. 25 m/min
- Table: 660 × 457 mm, load capacity ~1360 kg
This is clearly more than the classic VF-1.
“YT” denotes an extended Y-axis range and larger table compared to the standard VF-1.
In practice:
- more space for detail
- possibility of mounting larger devices
- greater production flexibility
- larger Y range (key change)
- larger work table
- larger tool magazine (30 instead of 20)
- faster and more modern equipment
The VF-1YT is a real production upgrade, not just cosmetic.
- VF-1YT: 10,000 rpm, standard dynamics
- VF-1SSYT: 12,000 rpm + very fast travel
VF-1SSYT = performance.
VF-1YT = cost/capability balance.
- VF-1YT: compact, cheaper
- VF-2: larger X-range (762 mm), more versatile
The key difference is the length of the detail (X axis).
Performance-wise – very similar.
1. Large work range in a small machine
→ 508 mm in each axis = huge advantage over the VF-1
2. 30+1 tool storage
→ real production without constant tool changes
3. Very good price-performance ratio
→ cheaper than VF-2, but often sufficient
4. Compactness
→ less space than the VF-2 with similar capabilities
5. Production ready
→ spindle cooling, probes, automation
- small- and medium-series production
- medium-sized details
- aluminum and steel
- workshops with limited space
- long parts (X axis > 500 mm)
- greater versatility
- heavier processing
Then the VF-2 gives you more reserve.
