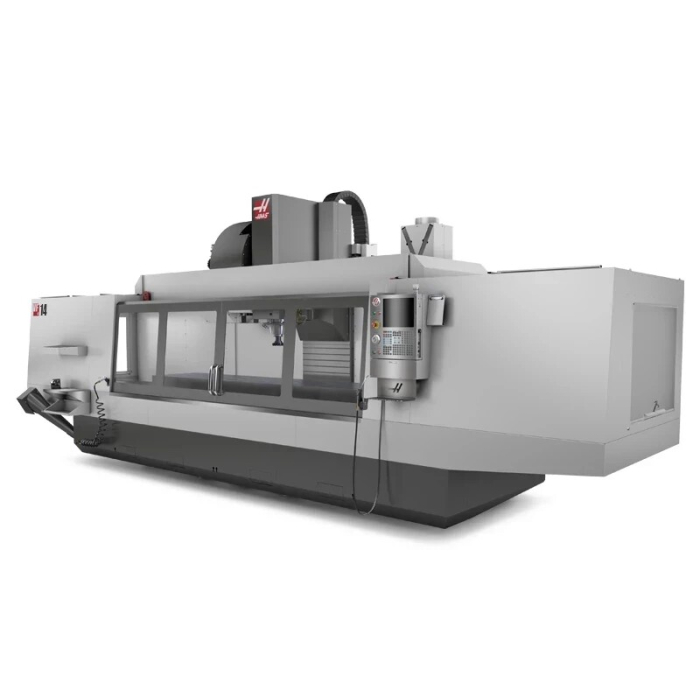

Haas VF-14/50 Vertical Milling Machine
SKU: VF-14-50
Haas VF-14/50 – Large Frame Vertical Machining Center with 50 Spindle The Haas VF-14/50 is a powerful machining center built for tougher materials and larger-diameter tools. Equipped with a 50-taper spindle and a 2-speed gearbox, it delivers high torque and stability even in heavy-duty cutting operations. The machine offers a wide range of configuration options, allowing it to be tailored to specific production needs. Like every VF series center, it combines robust construction, performance, and a competitive price. Key features: 50 taper spindle with 2-speed gearbox, Perfect for harder materials and large tools, Large frame for processing larger workpieces, Fully configurable to meet production requirements, Solid construction and reliable operation. The VF-14/50 is the solution for plants that need maximum power and workspace without compromising on quality.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas VF-14/50 – Large Frame Vertical Machining Center with 50 Spindle
The Haas VF-14/50 is a powerful machining center built for tougher materials and larger-diameter tools. Equipped with a 50-taper spindle and a 2-speed gearbox, it delivers high torque and stability even in heavy-duty cutting operations.
The machine offers a wide range of configuration options, allowing it to be tailored to specific production needs. Like every VF series center, it combines robust construction, performance, and a competitive price.
Key features:
- 50 taper spindle with 2-speed gearbox,
- Perfect for harder materials and large tools,
- Large frame for processing larger workpieces,
- Fully configurable to meet production requirements,
- Solid construction and reliable operation.
The VF-14/50 is the solution for plants that need maximum power and workspace without compromising on quality.
Technical Parameters
| SKU: | VF-14-50 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 3810 |
| Table width (mm): | 711 |
| Minimum distance between spindle and table (mm): | 127.00 |
| Maximum spindle-to-table distance (mm): | 889.00 |
| Number of T-slots: | 5 |
| Szerokość rowków (mm): | 15.90/16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 1,814.00 |
| Maximum workpiece weight (kg): | 1,814.00 |
| X-axis travel (mm): | 3810 |
| Y-axis travel (mm): | 1016 |
| Z-axis travel (mm): | 762 |
| X-axis cutting feedrate (m/min): | 9.1 |
| Y-axis cutting feedrate (m/min): | 9.10 |
| Z-axis cutting feedrate (m/min): | 9.10 |
| Maximum spindle speed (rpm): | 7500 |
| Maximum spindle torque (Nm): | 460 |
| Spindle drive type: | 2-stopniowa przekładnia zębata |
| Number of tools in the magazine: | 30 |
| Tool-to-tool change time (s): | 4.2 |
| Tool-to-tool / Chip-to-chip / change time (s): | 6.30 |
| Maximum tool diameter / all tools / (mm): | 102 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 254.00 |
| Maximum tool weight (kg): | 13.60 |
| Maximum tool length (mm): | 406.00 |
| Clamping taper type: | BT50 / CT50 |
| Maximum X-axis drive feed force (kN): | 15.12 |
| Maximum Y-axis drive pulling force (kN): | 18.24 |
| Maximum Z-axis drive pulling force (kN): | 24.90 |
| Machine weight (kg): | 16874 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 440 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 360.00 |
| Number of axes: | 3 (opcja 4/5) |
