Haas

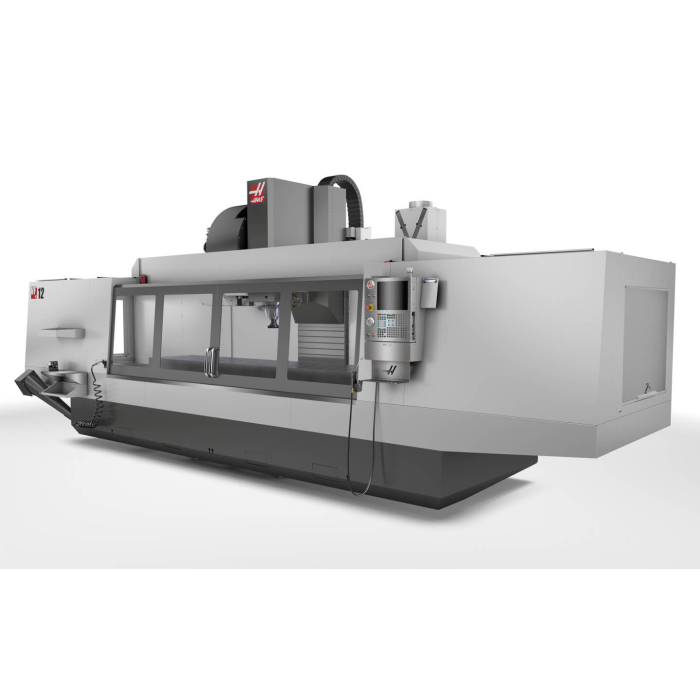

Haas VF-12/50 Milling Machines

SKU: VF-12/50
Haas VF Mills – 50 taper version with 2-speed gearbox The Haas VF-12/50 vertical machining centers are powerful and versatile CNC machining centers that offer exceptional functionality at an affordable price. With a wide range of options, each VF Series machine can be customized to meet the most demanding machining requirements. Key features: ISO50 spindle with 2-speed gearbox – high torque at low speeds and a wide speed range for various applications, Possibility to work with large tools – larger tool diameters enable more efficient material removal and shorten production cycles, A wide range of additional options – larger capacity tool magazines, advanced cooling systems, chip conveyors, programmable coolant nozzles and remote controls, High structural rigidity – ensures accuracy and stability even under heavy loads, The versatility of the VF series – the availability of multiple configurations allows you to tailor the machine to your specific industry and application. Benefits for the user: Perfect for hard materials – stainless steel, titanium, superalloys and composites, Increased cutting efficiency – the ability to use stronger tools and more aggressive processing parameters, Flexible configuration – adapting the machine to the needs of the workshop or production line, Durability and reliability – Haas quality proven in thousands of manufacturing plants, Industrial applications – aviation, automotive, energy and precision manufacturing. The Haas VF 50-taper, 2-speed mill combines power, rigidity, and configuration flexibility, making it ideal for heavy-duty industrial machining and demanding materials.

Ask an advisor

Want to know price, configuration or delivery time?

Interested in this machine?

Contact our sales department.
We will respond within 48 hours.

Skontaktuj się z namiSkontaktuj się z nami

22 379 44 33


Product description

Haas VF Mills – 50 taper version with 2-speed gearbox

The Haas VF-12/50 vertical machining centers are powerful and versatile CNC machining centers that offer exceptional functionality at an affordable price. With a wide range of options, each VF Series machine can be customized to meet the most demanding machining requirements.

Key features:

  • ISO50 spindle with 2-speed gearbox – high torque at low speeds and a wide speed range for various applications,
  • Possibility to work with large tools – larger tool diameters enable more efficient material removal and shorten production cycles,
  • A wide range of additional options – larger capacity tool magazines, advanced cooling systems, chip conveyors, programmable coolant nozzles and remote controls,
  • High structural rigidity – ensures accuracy and stability even under heavy loads,
  • The versatility of the VF series – the availability of multiple configurations allows you to tailor the machine to your specific industry and application.

Benefits for the user:

  • Perfect for hard materials – stainless steel, titanium, superalloys and composites,
  • Increased cutting efficiency – the ability to use stronger tools and more aggressive processing parameters,
  • Flexible configuration – adapting the machine to the needs of the workshop or production line,
  • Durability and reliability – Haas quality proven in thousands of manufacturing plants,
  • Industrial applications – aviation, automotive, energy and precision manufacturing.

The Haas VF 50-taper, 2-speed mill combines power, rigidity, and configuration flexibility, making it ideal for heavy-duty industrial machining and demanding materials.

Technical Parameters

SKU: VF-12/50
Brand: Haas
Machine tool type: Pionowa
Table length (mm): 711
Table width (mm): 3810
Minimum distance between spindle and table (mm): 127.00
Maximum spindle-to-table distance (mm): 889.00
Number of T-slots: 5
Szerokość rowków (mm): 22
Distance between T-slot centers (mm): 125.00
Table execution (design): rowki teowe T
Maximum rotary table load (kg): 1,814.00
Maximum workpiece weight (kg): 1,814.00
X-axis travel (mm): 3810
Y-axis travel (mm): 813
Z-axis travel (mm): 762
Y-axis cutting feedrate (m/min): 9.10
Z-axis cutting feedrate (m/min): 9.10
Maximum spindle speed (rpm): 7500
Maximum spindle torque (Nm): 460
Spindle drive type: 2-stopniowa przekładnia zębata
Number of tools in the magazine: 30
Tool-to-tool / Chip-to-chip / change time (s): 6.30
Maximum tool diameter / all tools / (mm): 102
Maximum tool diameter / adjacent pockets empty / (mm): 254.00
Maximum tool weight (kg): 13.60
Maximum tool length (mm): 406.00
Clamping taper type: BT50 / CT50
Maximum X-axis drive feed force (kN): 15.10
Maximum Y-axis drive pulling force (kN): 18.20
Maximum Z-axis drive pulling force (kN): 24.90
Repeatability (mm): 0.01
Machine weight (kg): 13903
Compressed air consumption (l/min): 113.00
Compressed air pressure (bar): 5.50
Supply voltage (V): 3x400
Frequency (Hz): 50.00
Number of axes: 3 (opcja 4/5)
