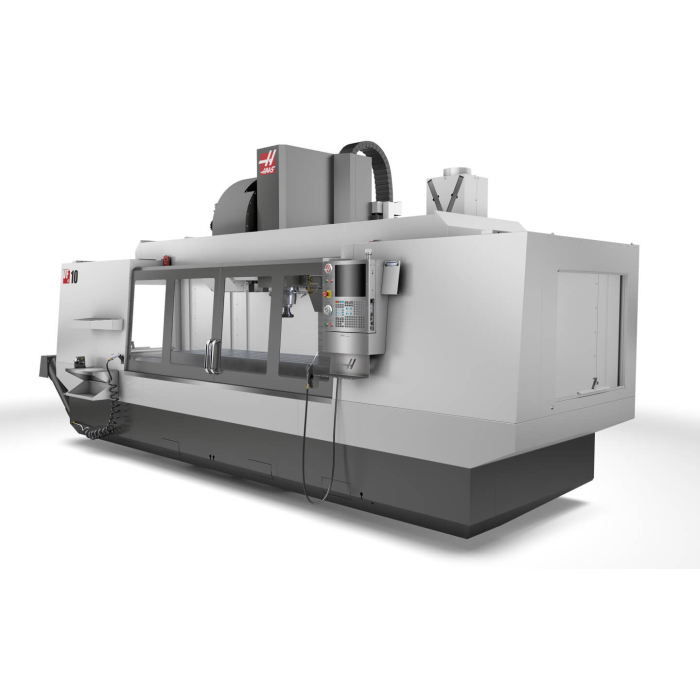

Haas VF-10/50 milling machines

SKU: VF-10/50
Haas VF-10/50 Mills – 50-Taper Versions Haas VF vertical machining centers combine high functionality and competitive pricing with full configurability. With a wide range of equipment options, each machine can be tailored to individual production needs – from simple workpieces to demanding industrial processes. Key features: ISO50 spindle with 2-speed gearbox – high torque at low speeds, ideal for machining difficult materials (e.g., stainless steel, titanium, tool steel). Higher gear allows for fast milling and drilling for lighter operations, Configuration flexibility – various options for cooling systems, chip conveyors, larger capacity tool magazines and automated tool changers, Programmable coolant nozzle and remote controls – greater work comfort and full optimization of machining processes, Stable construction – high stiffness ensures precise results even under heavy loads and difficult materials, The versatility of the VF series – a proven platform for individual, series and industrial applications. Benefits for the user: Machining of demanding materials – stainless steel, titanium or high-hardness alloys, Possibility of using larger diameter tools – greater material removal efficiency and higher productivity, Cycle time reduction – thanks to super-fast tool changes and optimized automation, Personalization – configuration perfectly tailored to the needs of the production plant, Haas precision and reliability – confident results even in the most demanding jobs. The Haas VF 50-taper, 2-speed gearbox is a powerful, versatile CNC machining center built for tough materials and heavy tooling that requires both stability and the highest precision.

Ask an advisor

Want to know price, configuration or delivery time?

Interested in this machine?

Contact our sales department.
We will respond within 48 hours.

Skontaktuj się z namiSkontaktuj się z nami

22 379 44 33


Product description

Haas VF-10/50 Mills – 50-Taper Versions

Haas VF vertical machining centers combine high functionality and competitive pricing with full configurability. With a wide range of equipment options, each machine can be tailored to individual production needs – from simple workpieces to demanding industrial processes.

Key features:

  • ISO50 spindle with 2-speed gearbox – high torque at low speeds, ideal for machining difficult materials (e.g., stainless steel, titanium, tool steel). Higher gear allows for fast milling and drilling for lighter operations,
  • Configuration flexibility – various options for cooling systems, chip conveyors, larger capacity tool magazines and automated tool changers,
  • Programmable coolant nozzle and remote controls – greater work comfort and full optimization of machining processes,
  • Stable construction – high stiffness ensures precise results even under heavy loads and difficult materials,
  • The versatility of the VF series – a proven platform for individual, series and industrial applications.

Benefits for the user:

  • Machining of demanding materials – stainless steel, titanium or high-hardness alloys,
  • Possibility of using larger diameter tools – greater material removal efficiency and higher productivity,
  • Cycle time reduction – thanks to super-fast tool changes and optimized automation,
  • Personalization – configuration perfectly tailored to the needs of the production plant,
  • Haas precision and reliability – confident results even in the most demanding jobs.

The Haas VF 50-taper, 2-speed gearbox is a powerful, versatile CNC machining center built for tough materials and heavy tooling that requires both stability and the highest precision.

Technical Parameters

SKU: VF-10/50
Brand: Haas
Machine tool type: Pionowa
Table length (mm): 711
Table width (mm): 3048
Minimum distance between spindle and table (mm): 127.00
Maximum spindle-to-table distance (mm): 889.00
Number of T-slots: 5
Szerokość rowków (mm): 16
Distance between T-slot centers (mm): 125.00
Table execution (design): rowki teowe T
Maximum rotary table load (kg): 1,814.00
Maximum workpiece weight (kg): 1,814.00
X-axis travel (mm): 3048
Y-axis travel (mm): 813
Z-axis travel (mm): 762
Y-axis cutting feedrate (m/min): 9.10
Z-axis cutting feedrate (m/min): 9.10
Maximum spindle speed (rpm): 7500
Maximum spindle torque (Nm): 460
Spindle drive type: 2-stopniowa przekładnia zębata
Number of tools in the magazine: 30
Tool-to-tool / Chip-to-chip / change time (s): 6.30
Maximum tool diameter / all tools / (mm): 102
Maximum tool diameter / adjacent pockets empty / (mm): 254.00
Maximum tool weight (kg): 13.60
Maximum tool length (mm): 406.00
Clamping taper type: BT50 / CT50
Maximum X-axis drive feed force (kN): 15.10
Maximum Y-axis drive pulling force (kN): 18.20
Maximum Z-axis drive pulling force (kN): 24.90
Repeatability (mm): 0.01
Machine weight (kg): 13381
Compressed air consumption (l/min): 113.00
Compressed air pressure (bar): 5.50
Supply voltage (V): 3x400
Frequency (Hz): 50.00
Number of axes: 3 (opcja 4/5)
