Product description

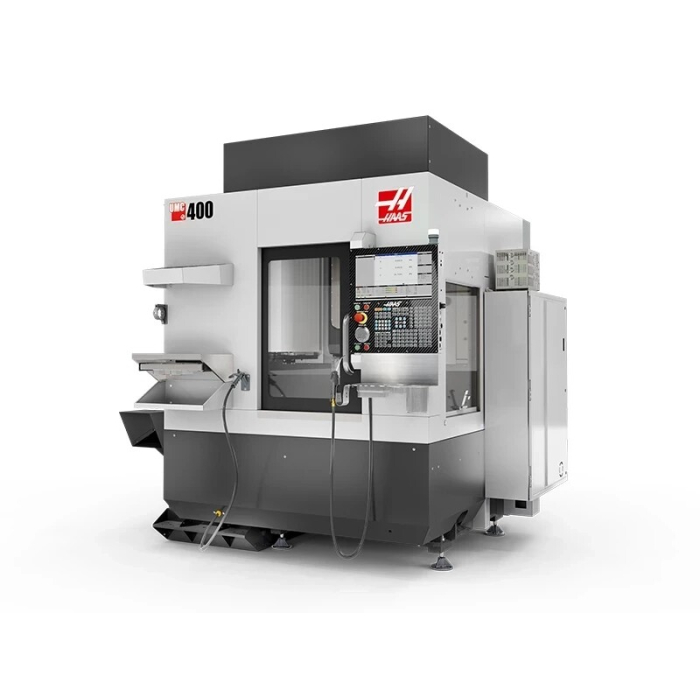

Haas UMC-400 milling machine
The Haas UMC-400 is a compact 5-axis machining center designed for shop floor machining of smaller, multi-axis parts. It builds on the proven design principles of earlier UMC models, delivering reliability, precision, and high performance in a compact package.
Key features:
- Full 5-axis machining – ideal for precise details,
- Compact dimensions – 2.1 x 2.1 m housing, takes up 25% less space than the UMC-500,
- Wide range of motion – despite its small size, it offers extensive operational possibilities,
- ISO 40 spindle – 8100 rpm, universal and versatile,
- 30+1 tool magazine – side automatic tool changer for greater efficiency,
- Stable construction – based on proven UMC series elements.
Benefits for the user:
- Space-saving – suitable for smaller workshops and production plants,
- Versatility – 3+2 and continuous 5-axis machining in one compact machine,
- High efficiency – quick tool change and dynamic spindle,
- Reliability – design based on proven Haas UMC solutions,
- The perfect entry into the world of 5 axes – lower maintenance costs with great technological possibilities.
The Haas UMC-400 is a 5-axis mill that combines compact size, powerful capabilities, and a proven design to provide the best balance of performance, shop floor space, and production flexibility.
Technical Parameters
| SKU: | UMC-400 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 432.00 |
| Maximum workpiece height (mm): | 413 |
| Maximum workpiece diameter (mm): | 368 |
| Table diameter (mm): | 230 |
| Maximum rotary table load (kg): | 45.40 |
| Maximum workpiece weight (kg): | 45.40 |
| X-axis travel (mm): | 432 |
| Y-axis travel (mm): | 279 |
| Z-axis travel (mm): | 330 |
| B-axis rotation (°): | 165 |
| C-axis rotation (°): | 360.00 |
| X-axis cutting feedrate (m/min): | 16.5 |
| Y-axis cutting feedrate (m/min): | 16.50 |
| Z-axis cutting feedrate (m/min): | 16.50 |
| B-axis feed rate (°/s): | 80.00 |
| C-axis feedrate (°/s): | 100.00 |
| Maximum spindle speed (rpm): | 8100 |
| Maximum spindle torque (Nm): | 62 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 30 |
| Tool-to-tool change time (s): | 2.8 |
| Tool-to-tool / Chip-to-chip / change time (s): | 3.60 |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool length (mm): | 178.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| B-axis braking torque (Nm): | 576.00 |
| C-axis braking torque (Nm): | 271.00 |
| Maximum torque of B-axis (Nm): | 407.00 |
| Maximum C-axis torque (Nm): | 285 |
| 4th-Axis Repeatability (s): | 10.00 |
| Machine dimensions (length x width x height) (mm): | 2337x2565x2423 |
| Machine weight (kg): | 3411 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 170.00 |
| Number of axes: | 5 |
