Product description

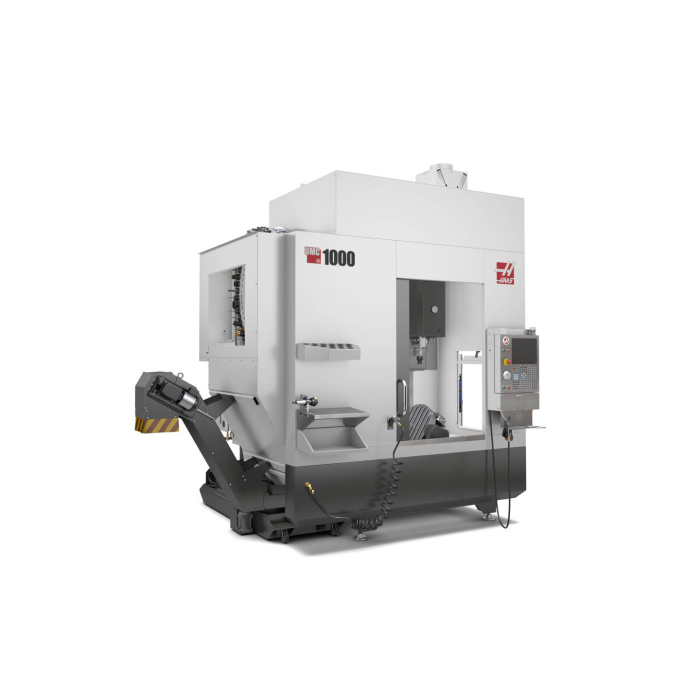

Haas UMC-1000 milling machine

The Haas UMC-1000 milling machine is a next-generation 5-axis CNC machining center, available since 2019. Designed for maximum versatility and a large work envelope, the machine is capable of machining large and demanding workpieces with the highest precision.

Key features:

  • Large work area – allows you to work on large-sized elements,
  • Large tilting rotary table – provides full multi-axis machining in 3+2 or full 5-axis mode,
  • Large clearance above the cradle – easy handling of higher-height workpieces,
  • Possibility of mounting a second vice – an additional mounting system allows you to finish workpieces in one setting,
  • Advanced Haas CNC features guarantee precision, smooth operation and repeatable results.

Benefits for the user:

  • Full 5-axis machining – reduced setups and higher accuracy,
  • Versatility – works well both in the production of large elements and complex details requiring many operations,
  • Increased productivity – the ability to process and finish a part in one cycle,
  • Stable construction – prepared for working with demanding materials and large details,
  • The perfect solution for modern workshops – from prototypes to serial production.

The Haas UMC-1000 is a robust and flexible five-axis machining center that combines a large work envelope, modern features, and precision machining, giving companies access to the latest generation of Haas technology for multi-axis production.

Technical Parameters

SKU: UMC-1000
Brand: Haas
Machine tool type: Pionowa
Minimum distance between spindle and table (mm): 102.00
Maximum spindle-to-table distance (mm): 737.00
Maximum workpiece diameter (mm): 864
Table diameter (mm): 635
Szerokość rowków (mm): 15.90/16
5-axis table design: rowki teowe T
Maximum rotary table load (kg): 454.00
Number of T-slots on the 5th axis: 7
Maximum workpiece weight (kg): 454.00
X-axis travel (mm): 1016
Y-axis travel (mm): 635
Z-axis travel (mm): 635
B-axis rotation (°): 35/120
C-axis rotation (°): 360.00
Y-axis cutting feedrate (m/min): 16.50
Z-axis cutting feedrate (m/min): 16.50
B-axis feed rate (°/s): 50.00
C-axis feedrate (°/s): 50.00
Working feed in B-axis (°/min): 50
C-axis cutting feedrate (°/min): 50
Maximum spindle speed (rpm): 8100
Maximum spindle torque (Nm): 122
Spindle drive type: Inline Direct-Drive
Number of tools in the magazine: 30+1
Tool-to-tool / Chip-to-chip / change time (s): 3.60
Maximum tool diameter / all tools / (mm): 64
Maximum tool diameter / adjacent pockets empty / (mm): 127.00
Maximum tool weight (kg): 5.40
Maximum tool length (mm): 305.00
Clamping taper type: BT40 / CT40 / HSK-A 63
Maximum X-axis drive feed force (kN): 14.68
Maximum Y-axis drive pulling force (kN): 14.68
Maximum Z-axis drive pulling force (kN): 18.02
B-axis braking torque (Nm): 2,712.00
C-axis braking torque (Nm): 1,220.00
Repeatability (mm): 0.00
Machine weight (kg): 7077
Compressed air consumption (l/min): 113.00
Compressed air pressure (bar): 5.50
Supply voltage (V): 3x400
Frequency (Hz): 50.00
Coolant Tank Capacity (L): 208.00
Number of axes: 5
