Product description

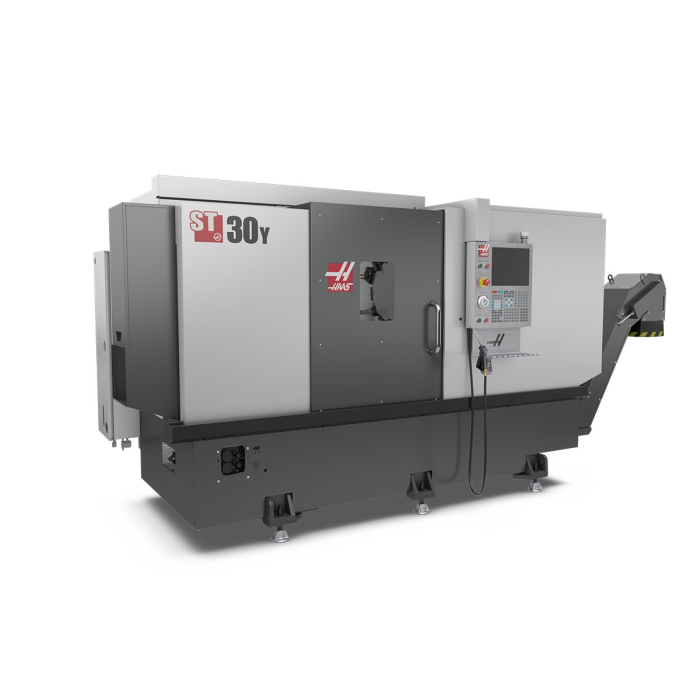

Haas ST-30Y Lathe
The Haas ST-30Y is a mid-sized CNC lathe enhanced with additional features that significantly expand its machining capabilities. Compared to the standard ST-30 model, the ST-30Y is equipped with:
- Y axis – enables operations to be performed outside the central axis,
- Rotary C axis – allows for precise spindle positioning and operation of complex cycles,
- Driven tools and the BMT head – provide the ability to mill from the front as well as perform radial machining.
Key features:
- Multi-task machining on one machine – turning and milling processes in one setup, without the need to move the workpiece,
- Y axis and BMT head – greater flexibility and stiffness when working with more demanding elements,
- C axis – enables synchronization of movements and processing of complex geometries,
- Driven tools – allow for additional milling operations while maintaining the full precision of the lathe.
Application:
The ST-30Y is a versatile machine for businesses requiring single-cycle turning and milling. It's ideal for both batch and piece production, reducing lead times and increasing process efficiency and quality.
Technical Parameters
| SKU: | ST-30Y |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | BMT65 |
| X-axis travel (mm): | 318 |
| Y-axis travel (mm): | 50 |
| Z-axis travel (mm): | 584 |
| Maximum turning diameter (mm): | 349 |
| Maximum turning length (mm): | 584 |
| Swing over cross slide (mm): | 527.00 |
| Swing over covers (mm): | 806.00 |
| Swing over tailstock guideways (mm): | 584.00 |
| X-axis feedrate (m/min): | 24 |
| Y-axis feedrate (m/min): | 12 |
| Z-axis feedrate (m/min): | 24 |
| C-axis feedrate (°/s): | 360.00 |
| Maximum spindle speed (rpm): | 3400 |
| Maximum spindle torque (Nm): | 1356 |
| Maximum bar capacity (mm): | 76 |
| Main spindle chuck diameter (mm): | 254 |
| Main spindle bore (mm): | 76.00 |
| Main spindle taper: | A2-6 |
| Tailstock travel (mm): | 724 |
| Tailstock taper: | MK4 |
| Number of tool stations of the first turret: | 12 |
| Number of driven stations on the first turret: | 12 |
| Driven tool speed (RPM): | 4000 |
| Maximum X-axis drive feed force (kN): | 18.20 |
| Maximum Y-axis drive pulling force (kN): | 10.20 |
| Maximum Z-axis drive pulling force (kN): | 22.70 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 6741 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Driven tools: | Tak |
| Sub-spindle: | Opcjonalne |
| Hydraulic chuck: | Standard |
