Haas

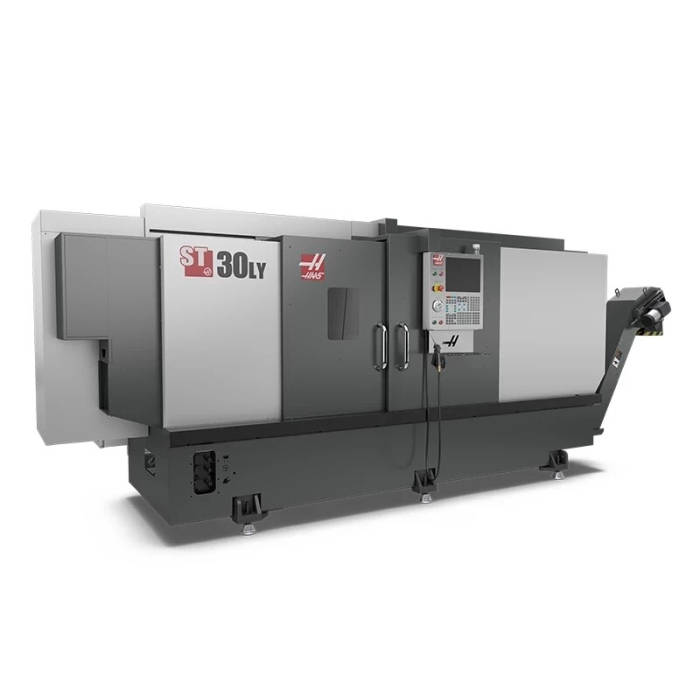

Haas ST-30LY-EU Lathe

SKU: ST-30LY-EU
Haas ST-30LY-EU Lathe The Haas ST-30LY-EU is a mid-size, long-bed CNC lathe, specifically configured for the European market and available at an attractive price. The machine offers an increased Z-axis work envelope, allowing for precise machining of larger and longer workpieces without sacrificing performance. Thanks to the combination of a compact design with a rigid structure and a large working area, the ST-30LY-EU model ensures reliable cutting parameters and flexibility of use in both serial and individual production. Key features: Long bed – greater range of Z-axis movement and the ability to work with longer components, Compact size in the mid-range – perfect balance between space and processing efficiency, High stiffness and stability – solid construction ensuring precision and repeatability, Special version for Europe – optimized configuration offered at an advantageous price. Application: The ST-30LY-EU is ideal for shops requiring a lathe with a larger work area that can handle both complex geometries and longer workpieces. It's a powerful and versatile solution for mechanical, automotive, aerospace, and general industrial manufacturing.

Ask an advisor

Want to know price, configuration or delivery time?

Interested in this machine?

Contact our sales department.
We will respond within 48 hours.

Skontaktuj się z namiSkontaktuj się z nami

22 379 44 33


Product description

Haas ST-30LY-EU Lathe

The Haas ST-30LY-EU is a mid-size, long-bed CNC lathe, specifically configured for the European market and available at an attractive price. The machine offers an increased Z-axis work envelope, allowing for precise machining of larger and longer workpieces without sacrificing performance.

Thanks to the combination of a compact design with a rigid structure and a large working area, the ST-30LY-EU model ensures reliable cutting parameters and flexibility of use in both serial and individual production.

Key features:

  • Long bed – greater range of Z-axis movement and the ability to work with longer components,
  • Compact size in the mid-range – perfect balance between space and processing efficiency,
  • High stiffness and stability – solid construction ensuring precision and repeatability,
  • Special version for Europe – optimized configuration offered at an advantageous price.

Application:

The ST-30LY-EU is ideal for shops requiring a lathe with a larger work area that can handle both complex geometries and longer workpieces. It's a powerful and versatile solution for mechanical, automotive, aerospace, and general industrial manufacturing.

Technical Parameters

SKU: ST-30LY-EU
Brand: Haas
Machine tool type: Tokarka
Tool turret (lathe): BMT65
X-axis travel (mm): 239
Y-axis travel (mm): 102
Z-axis travel (mm): 1588
Maximum turning diameter (mm): 349
X-axis feedrate (m/min): 12
Y-axis feedrate (m/min): 12
Z-axis feedrate (m/min): 24
C-axis feedrate (°/s): 360.00
Maximum spindle speed (rpm): 3400
Maximum bar capacity (mm): 76
Main spindle chuck diameter (mm): 254
Main spindle taper: A2-6
Tailstock taper: MK4
Maximum X-axis drive feed force (kN): 18.24
Maximum Y-axis drive pulling force (kN): 10.23
Maximum Z-axis drive pulling force (kN): 22.69
Machine weight (kg): 6033
Compressed air consumption (l/min): 113.00
Compressed air pressure (bar): 5.50
Supply voltage (V): 3x400
Frequency (Hz): 50.00
Coolant Tank Capacity (L): 208.00
Driven tools: Tak
Sub-spindle: Opcjonalne
Hydraulic chuck: Standard
