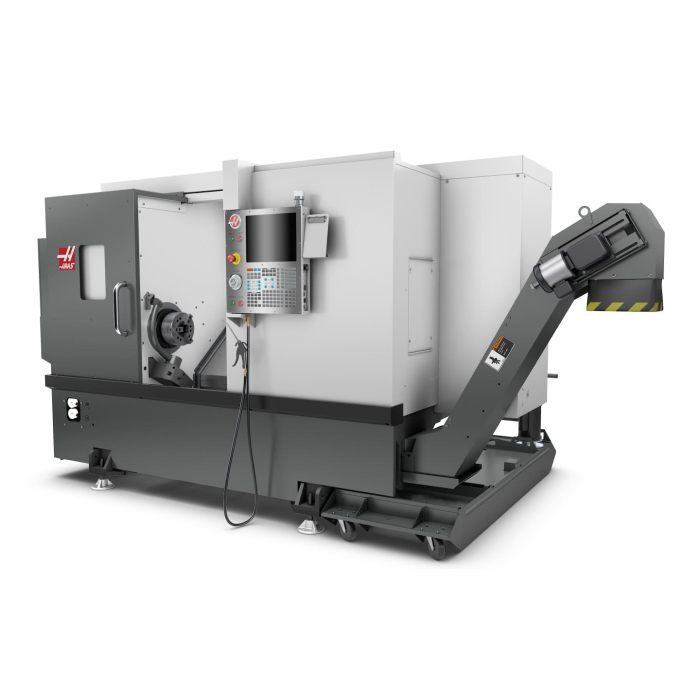

HAAS ST-20Y
SKU: ST-20Y_demo
One of the most popular ST-20 lathes is additionally equipped with the ability to work with driven tools, a modern BMT head and a Y axis, thanks to which we gain the possibility of very efficient multi-task machining on a single machine tool.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
One of the most popular ST-20 lathes is additionally equipped with the ability to work with driven tools, a modern BMT head and a Y axis, thanks to which we gain the possibility of very efficient multi-task machining on a single machine tool.
Technical Parameters
| SKU: | ST-20Y_demo |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | BMT65 |
| X-axis travel (mm): | 236 |
| Y-axis travel (mm): | 50 |
| Z-axis travel (mm): | 533 |
| Maximum turning diameter (mm): | 298 |
| Swing over cross slide (mm): | 527.00 |
| Swing over covers (mm): | 806.00 |
| Swing over tailstock guideways (mm): | 584.00 |
| X-axis feedrate (m/min): | 24 |
| Y-axis feedrate (m/min): | 12 |
| Z-axis feedrate (m/min): | 24 |
| C-axis feedrate (°/s): | 360.00 |
| Maximum spindle speed (rpm): | 4000 |
| Spindle power (kW): | 14.9 |
| Maximum spindle torque (Nm): | 203 |
| Main spindle chuck diameter (mm): | 210 |
| Main spindle bore (mm): | 51.00 |
| Main spindle taper: | A2-6 |
| Tailstock travel (mm): | 533 |
| Tailstock taper: | MK4 |
| Number of tool stations of the first turret: | 12 |
| Number of driven stations on the first turret: | 12 |
| Driven tool speed (RPM): | 4000 |
| Maximum X-axis drive feed force (kN): | 18.20 |
| Maximum Y-axis drive pulling force (kN): | 10.20 |
| Maximum Z-axis drive pulling force (kN): | 22.60 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 4082 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Driven tools: | Tak |
| Sub-spindle: | Opcjonalne |
| Hydraulic chuck: | Standard |
