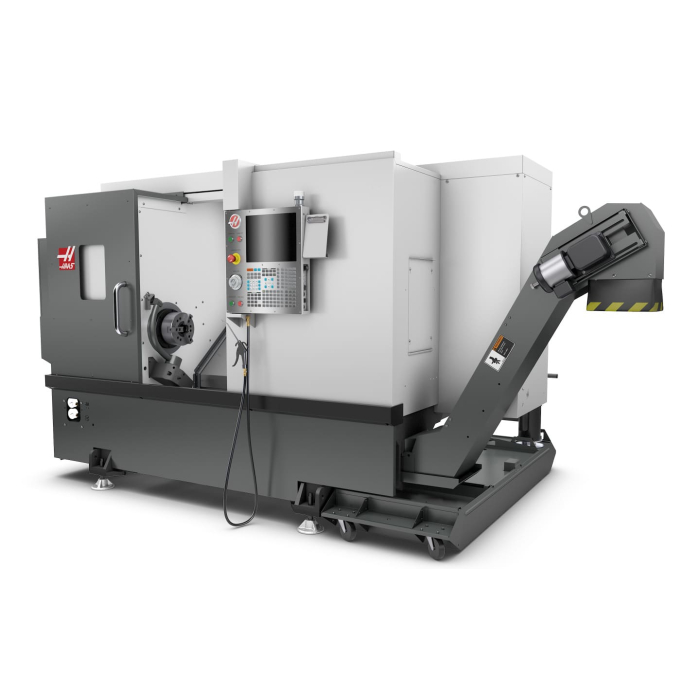

Haas ST-20Y Lathe
The Haas ST-20Y, one of the most popular ST lathes, now features a Y-axis, live tooling, and a modern BMT turret. This allows the machine to offer full multi-tasking machining in a single setup—combining turning with milling, drilling, and tapping.
The new generation ST-20 has been completely redesigned. The machine is now more rigid, has a larger spindle bore (greater bar capacity), and has a wider Z-axis travel range, significantly expanding machining capabilities. Additionally, it offers Wi-Fi as standard and an optional automatic door, which improves ergonomics and enables easy integration with automation systems.
Key features:
- Y axis, BMT head and driven tools – milling, drilling and threading in one cycle,
- Larger spindle passage – processing of larger diameter bars,
- Increased Z-axis movement range – greater flexibility when working with longer details,
- Optional automatic doors – convenience and easier process automation,
- WiFi as standard – fast communication and easy program transfer,
- High stiffness and stability – precision and reliability even in large production series.
Application:
The ST-20Y is an excellent choice for companies seeking a versatile, mid-sized lathe with multi-axis machining capabilities. It excels in both batch and piece production, particularly in the automotive, machine tool, and aerospace industries where versatility, speed, and accuracy are key.
Technical Parameters
| SKU: | ST-20Y |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | BMT65 |
| X-axis travel (mm): | 236 |
| Y-axis travel (mm): | 50 |
| Z-axis travel (mm): | 533 |
| Maximum turning diameter (mm): | 298 |
| Swing over cross slide (mm): | 527.00 |
| Swing over covers (mm): | 806.00 |
| Swing over tailstock guideways (mm): | 584.00 |
| X-axis feedrate (m/min): | 24 |
| Y-axis feedrate (m/min): | 12 |
| Z-axis feedrate (m/min): | 24 |
| C-axis feedrate (°/s): | 360.00 |
| Maximum spindle speed (rpm): | 4000 |
| Spindle power (kW): | 14.9 |
| Maximum spindle torque (Nm): | 203 |
| Main spindle chuck diameter (mm): | 210 |
| Main spindle bore (mm): | 51.00 |
| Main spindle taper: | A2-6 |
| Tailstock travel (mm): | 533 |
| Tailstock taper: | MK4 |
| Number of tool stations of the first turret: | 12 |
| Number of driven stations on the first turret: | 12 |
| Driven tool speed (RPM): | 4000 |
| Maximum X-axis drive feed force (kN): | 18.20 |
| Maximum Y-axis drive pulling force (kN): | 10.20 |
| Maximum Z-axis drive pulling force (kN): | 22.60 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 4082 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 208.00 |
| Driven tools: | Tak |
| Sub-spindle: | Opcjonalne |
| Hydraulic chuck: | Standard |
