Product description

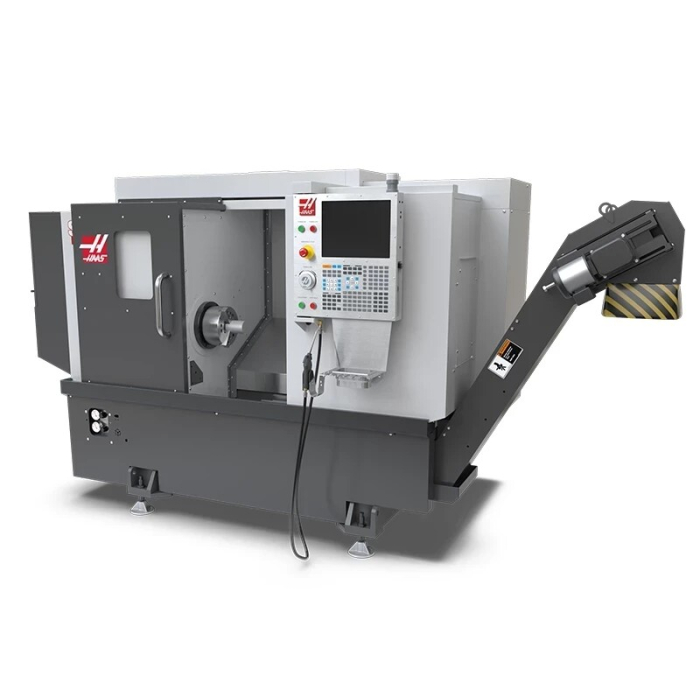

Haas ST-15Y-EU Lathe

The Haas ST-15Y-EU is a special version of the ST-15Y CNC lathe, designed for the European market and available at a competitive price. This mid-size lathe offers a very small footprint, making it ideal for shops with limited space.

This model features a large-bore spindle that allows for machining larger diameters. Its Y-axis allows for additional processes such as milling, drilling, and threading without the need to transfer workpieces to other machines. High spindle speeds and dynamic rapid movements translate into shorter machining cycles and high production efficiency.

Key features:

  • Compact footprint – ideal for workshops and production halls with limited space,
  • Spindle with a large bore – possibility of machining parts with a larger diameter,
  • Y-axis machining – milling, drilling and threading in one setting,
  • High rotational speed and fast axis movements – greater productivity and shorter lead times,
  • Version dedicated to Europe – available in a special configuration and price.

Application:

The ST-15Y-EU is the ideal solution for companies looking for a versatile, mid-sized lathe in a compact design. It excels in the production of parts for the automotive, mechanical, tooling, and electronics industries, where precision, speed, and the ability to complete complex processes in a single cycle are essential.

Technical Parameters

SKU: ST-15Y-EU
Brand: Haas
Machine tool type: Tokarka
Tool turret (lathe): BMT45
X-axis travel (mm): 200
Y-axis travel (mm): 102
Z-axis travel (mm): 406
Maximum turning diameter (mm): 279
X-axis feedrate (m/min): 12
Y-axis feedrate (m/min): 12
C-axis feedrate (°/s): 360.00
Maximum spindle speed (rpm): 4000
Spindle power (kW): 14.9
Main spindle chuck diameter (mm): 210
Main spindle taper: A2-6
Tailstock taper: MK3
Maximum X-axis drive feed force (kN): 10.68
Maximum Y-axis drive pulling force (kN): 10.23
Maximum Z-axis drive pulling force (kN): 16.46
Machine weight (kg): 3583
Compressed air consumption (l/min): 113.00
Compressed air pressure (bar): 5.50
Supply voltage (V): 3x400
Frequency (Hz): 50.00
Coolant Tank Capacity (L): 114.00
Driven tools: Tak
Sub-spindle: Opcjonalne
Hydraulic chuck: Standard
