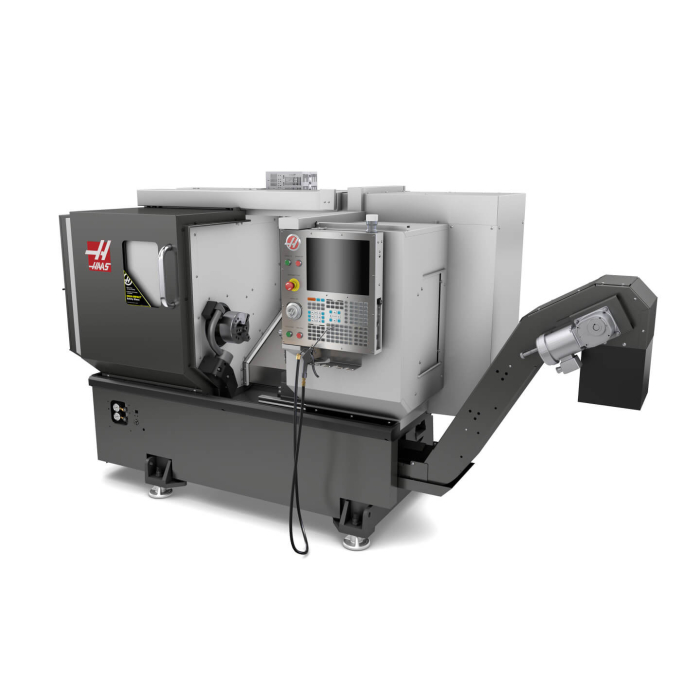

Haas ST-15 Lathe

SKU: ST-15
Haas ST-15 Lathe The Haas ST-15 combines the compact size and high dynamic performance of the renowned ST-10 with the enhanced capabilities of the ST-20 series spindle. This design allows for larger-diameter machining while maintaining a very small footprint. The machine features a large spindle throughput, a strong chuck, and a stable construction, making it ideal for intensive production environments. Despite its compact design, it offers a large work area and the performance typical of larger lathes. Key features: Very small footprint – ideal for plants with limited space, Spindle with a large bore – possibility of processing parts and bars with a larger diameter, Large workspace – flexibility in working with a variety of components, High stiffness and thermal stability – precision and reliability during intensive machining, The best value for money in the compact lathe class. Application: The ST-15 is the ideal CNC lathe for companies requiring a compact, high-performance machine with the ability to handle larger diameters. It's ideal for automotive, electronics, mechanical, and precision engineering businesses, offering maximum capabilities in minimal space.

Ask an advisor

Want to know price, configuration or delivery time?

Interested in this machine?

Contact our sales department.
We will respond within 48 hours.

Skontaktuj się z namiSkontaktuj się z nami

22 379 44 33


Product description

Haas ST-15 Lathe

The Haas ST-15 combines the compact size and high dynamic performance of the renowned ST-10 with the enhanced capabilities of the ST-20 series spindle. This design allows for larger-diameter machining while maintaining a very small footprint.

The machine features a large spindle throughput, a strong chuck, and a stable construction, making it ideal for intensive production environments. Despite its compact design, it offers a large work area and the performance typical of larger lathes.

Key features:

  • Very small footprint – ideal for plants with limited space,
  • Spindle with a large bore – possibility of processing parts and bars with a larger diameter,
  • Large workspace – flexibility in working with a variety of components,
  • High stiffness and thermal stability – precision and reliability during intensive machining,
  • The best value for money in the compact lathe class.

Application:

The ST-15 is the ideal CNC lathe for companies requiring a compact, high-performance machine with the ability to handle larger diameters. It's ideal for automotive, electronics, mechanical, and precision engineering businesses, offering maximum capabilities in minimal space.

Technical Parameters

SKU: ST-15
Brand: Haas
Machine tool type: Tokarka
Tool turret (lathe): VDI40 / opcja BOT / opcja BMT45
X-axis travel (mm): 200
Z-axis travel (mm): 406
Maximum turning diameter (mm): 173
Maximum turning diameter (option) (mm): 305
Swing over cross slide (mm): 406.00
Swing over covers (mm): 686.00
Swing over tailstock guideways (mm): 686.00
Maximum spindle speed (rpm): 4000
Spindle power (kW): 14.9
Maximum spindle torque (Nm): 203
Main spindle chuck diameter (mm): 210
Main spindle bore (mm): 63.50
Main spindle taper: A2-6
Tailstock travel (mm): 100
Tailstock taper: MT3
Number of tool stations of the first turret: 12
Maximum X-axis drive feed force (kN): 10.60
Maximum Z-axis drive pulling force (kN): 16.50
Repeatability (mm): 0.00
Compressed air consumption (l/min): 113.00
Compressed air pressure (bar): 5.50
Supply voltage (V): 3x400
Frequency (Hz): 50.00
Coolant Tank Capacity (L): 114.00
Driven tools: Opcjonalne
Sub-spindle: Opcjonalne
Hydraulic chuck: Standard
