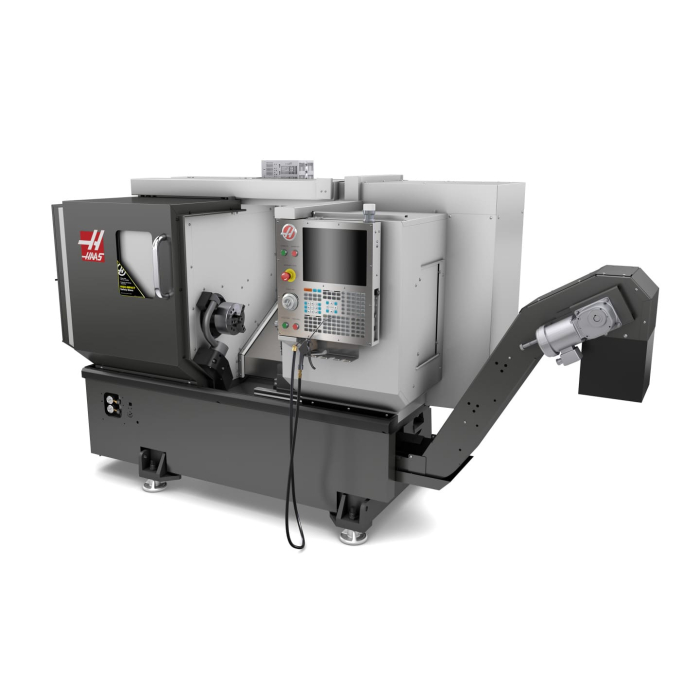

Haas ST-10Y Lathe
The Haas ST-10Y is a compact CNC lathe renowned for its reliability and versatility. It comes standard with a Y-axis and live tooling, allowing milling, drilling, and tapping operations to be performed in a single setup—without the need to transfer the workpiece to another machine.
Despite its very small footprint, the ST-10Y offers a large work area and high operational dynamics, making it suitable for both individual and series production. Its rigid construction and thermal stability guarantee precise results even during intensive machining cycles.
Key features:
- Very compact dimensions – ideal for plants with limited space,
- Y axis as standard – additional functionality increasing the range of operations,
- Powered tools as standard – milling, drilling and threading in one process,
- High spindle speeds and fast axis movements – shorter cycle times and higher productivity,
- Rigid, stable construction – repeatable precision and reliability.
Application:
The ST-10Y is a great choice for companies looking for a small yet highly functional CNC lathe. It's ideal for the automotive, electronics, tooling, and precision industries, offering the best price-to-performance ratio in its class.
Technical Parameters
| SKU: | ST-10Y |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | BMT45 |
| X-axis travel (mm): | 200 |
| Y-axis travel (mm): | 50 |
| Z-axis travel (mm): | 406 |
| Maximum turning diameter (mm): | 279 |
| Swing over cross slide (mm): | 413.00 |
| Swing over covers (mm): | 641.00 |
| Swing over tailstock guideways (mm): | 597.00 |
| X-axis feedrate (m/min): | 12 |
| Y-axis feedrate (m/min): | 12 |
| C-axis feedrate (°/s): | 360.00 |
| Maximum spindle speed (rpm): | 6000 |
| Maximum spindle torque (Nm): | 102 |
| Maximum bar capacity (mm): | 44 |
| Main spindle bore (mm): | 44.00 |
| Main spindle taper: | A2-5 |
| Tailstock travel (mm): | 102 |
| Tailstock taper: | MK3 |
| Number of tool stations of the first turret: | 12 |
| Driven tool speed (RPM): | 4000 |
| Maximum X-axis drive feed force (kN): | 10.60 |
| Maximum Y-axis drive pulling force (kN): | 10.50 |
| Maximum Z-axis drive pulling force (kN): | 16.50 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 2268 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 114.00 |
| Driven tools: | Tak |
| Sub-spindle: | Opcjonalne |
| Hydraulic chuck: | Standard |
