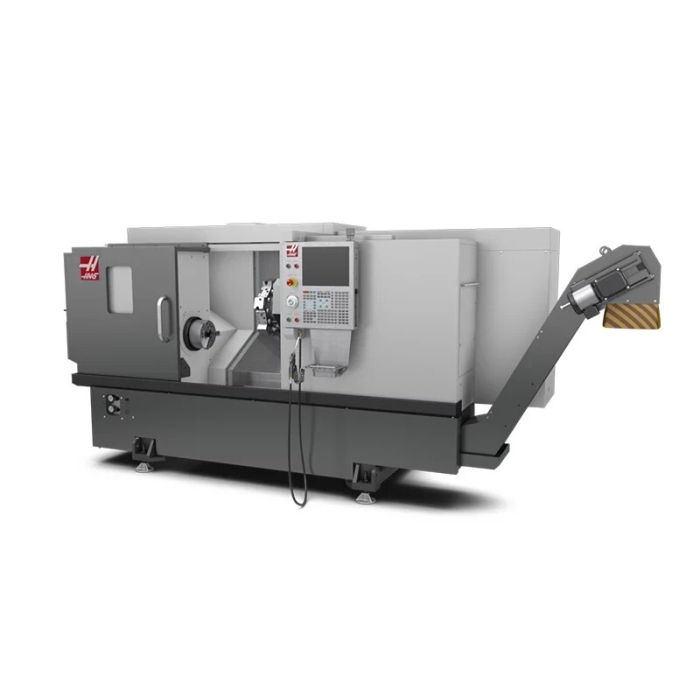

Haas ST-10LY-EU Lathe
SKU: ST-10LY-EU
Haas ST-10LY-EU Lathe The Haas ST-10LY-EU is a special version of the ST-10LY lathe designed for the European market. It features an extended bed, providing twice the Z-axis travel of the ST-10Y. This allows for efficient machining of longer workpieces while maintaining a compact footprint and high cutting dynamics. Key features: Twice the Z axis range – allows for machining longer components without losing precision, Compact design – the small dimensions of the machine allow you to save space in the workshop, High machining efficiency – retains the cutting power and precision known from the ST-10 models, even when working with longer workpieces, Dedicated version for Europe – optimized for the needs of the European market, offered in a special configuration and price. Application: The ST-10LY-EU is the perfect solution for shops that need a compact lathe for machining longer workpieces while maintaining the performance and precision of the ST series.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas ST-10LY-EU Lathe
The Haas ST-10LY-EU is a special version of the ST-10LY lathe designed for the European market. It features an extended bed, providing twice the Z-axis travel of the ST-10Y. This allows for efficient machining of longer workpieces while maintaining a compact footprint and high cutting dynamics.
Key features:
- Twice the Z axis range – allows for machining longer components without losing precision,
- Compact design – the small dimensions of the machine allow you to save space in the workshop,
- High machining efficiency – retains the cutting power and precision known from the ST-10 models, even when working with longer workpieces,
- Dedicated version for Europe – optimized for the needs of the European market, offered in a special configuration and price.
Application:
The ST-10LY-EU is the perfect solution for shops that need a compact lathe for machining longer workpieces while maintaining the performance and precision of the ST series.
Technical Parameters
| SKU: | ST-10LY-EU |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | BMT45 |
| X-axis travel (mm): | 200 |
| Y-axis travel (mm): | 102 |
| Z-axis travel (mm): | 826 |
| Maximum turning diameter (mm): | 279 |
| X-axis feedrate (m/min): | 12 |
| Y-axis feedrate (m/min): | 12 |
| C-axis feedrate (°/s): | 360.00 |
| Maximum spindle speed (rpm): | 6000 |
| Maximum bar capacity (mm): | 44 |
| Main spindle taper: | A2-5 |
| Tailstock taper: | MK3 |
| Maximum X-axis drive feed force (kN): | 10.68 |
| Maximum Y-axis drive pulling force (kN): | 10.23 |
| Maximum Z-axis drive pulling force (kN): | 16.46 |
| Machine weight (kg): | 4536 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 114.00 |
| Driven tools: | Tak |
| Sub-spindle: | Opcjonalne |
| Hydraulic chuck: | Standard |
