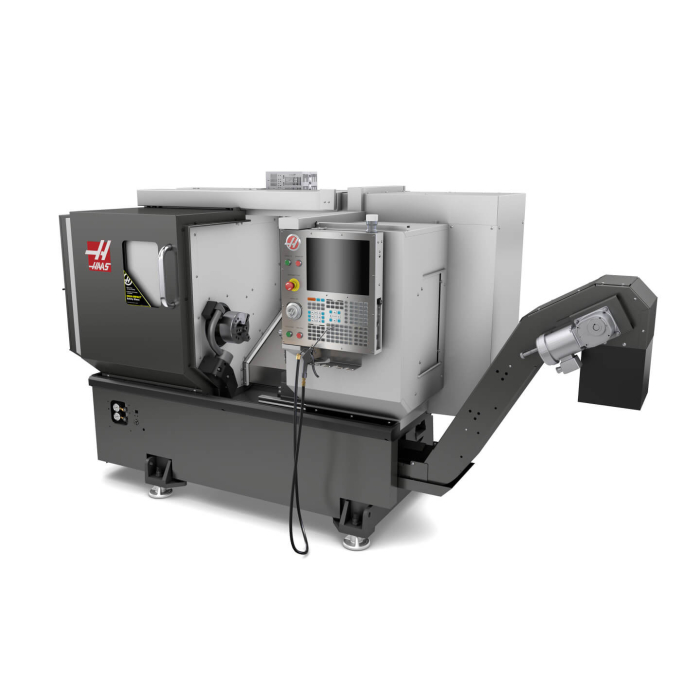

Haas ST-10 Lathe
The Haas ST-10 is the smallest CNC lathe in the ST series, designed for users seeking a compact yet powerful machine. With its hydraulic chuck, the ability to add live tooling, and exceptionally small footprint, the ST-10 is ideal for both production facilities and educational centers and technical schools.
Despite its compact size, the machine offers a surprisingly large work envelope, allowing for the flexible production of a wide variety of workpieces. The robust construction, high thermal stability, and rigidity typical of the Haas ST series guarantee long-term precision and reliability.
Key features:
- Very small installation space – ideal for small workshops and production halls,
- Hydraulic chuck – secure clamping and machining stability,
- Possibility of retrofitting with driven tools – additional milling, drilling and threading options,
- High spindle speeds and fast axial movements – shorter cycle times and greater efficiency,
- Large work area in a compact class.
Application:
The ST-10 is an excellent choice for companies producing small, high-precision parts, as well as for educational institutions seeking a teaching machine with real industrial capabilities. Designed for intensive production environments, it offers the best technology-to-price-to-space ratio in its class.
Technical Parameters
| SKU: | ST-10 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | VDI40 / opcja BOT / opcja BMT45 |
| X-axis travel (mm): | 200 |
| Z-axis travel (mm): | 406 |
| Maximum turning diameter (mm): | 173 |
| Maximum turning diameter (option) (mm): | 305 |
| Swing over cross slide (mm): | 413.00 |
| Swing over covers (mm): | 641.00 |
| Swing over tailstock guideways (mm): | 597.00 |
| Maximum spindle speed (rpm): | 6000 |
| Maximum spindle torque (Nm): | 102 |
| Maximum bar capacity (mm): | 44 |
| Main spindle bore (mm): | 44.00 |
| Main spindle taper: | A2-5 |
| Tailstock travel (mm): | 102 |
| Tailstock taper: | MK3 |
| Number of tool stations of the first turret: | 12 |
| Maximum X-axis drive feed force (kN): | 14.70 |
| Maximum Z-axis drive pulling force (kN): | 14.70 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 2268 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 114.00 |
| Driven tools: | Opcjonalne |
| Sub-spindle: | Opcjonalne |
| Hydraulic chuck: | Standard |
