Product description

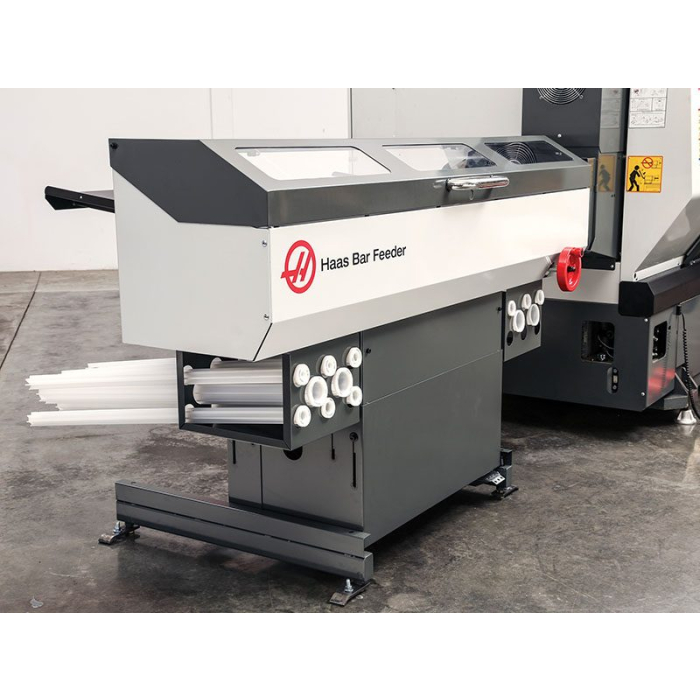

Haas Bar Feeder
The Haas Bar Feeder is a simple, cost-effective solution for automating lathe production, providing increased productivity and seamless integration with the Haas control. Designed and built exclusively for Haas lathes, the feeder loads materials directly into the machine, increasing the speed and efficiency of the production process.
The innovative design allows the feeder to be conveniently moved, allowing easy access to the rear of the spindle – facilitating quick changes to adapters and spindle liners. The feeder is equipped with patented Haas spindle liners and a built-in bar chamfering device, ensuring precise material feeding and high-quality machining.
Key features of the Haas Bar Feeder:
- Plug-and-play – full integration with the Haas control,
- For Haas lathes only – compatible with models after March 1, 2021 (NGC control, version V2),
- Easy access to the spindle – advanced sliding design,
- Patented liners and rod chamfering device included,
- Direct connection to the Haas control.
Application:
The Haas Bar Feeder is the ideal choice for manufacturing shops that want reliable automation, easy operation, and maximum efficiency in feeding material to Haas lathes.
Technical Parameters
| SKU: | Haas Bar Feeder |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Width (mm): | 2,092.00 |
| Height (mm): | 1,600.00 |
| Pallet length (mm): | 762.00 |
| Workpiece weight (wrist) (kg): | 36.00 |
| Repeatability (mm): | ± 0.25 |
| Software: | Haas |
| Depth (mm): | 1,346.00 |
