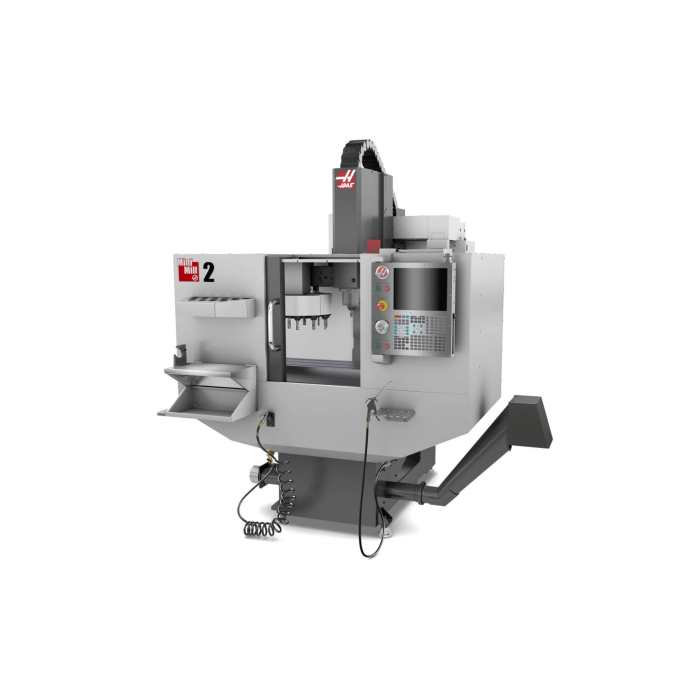

Haas Mini Mill
SKU: MINIMILL
Haas Mini Mill – a compact powerhouse for small production Key features: New FEA-optimized casting (base + column) for greater stiffness. Larger travel ranges, higher spindle speeds and rapid feed modes. Improved Y-axis flush nozzle + 170L coolant tank with easy maintenance. Easy integration with Haas Robot Package and automatic feeders. Designed for confined spaces. Applications: Prototyping, small series and production in tight workshops. Automated processing of parts in small-scale factories. Perfect for beginners and companies looking for economical precision. The Mini Mill is a new era of Haas compact milling.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas Mini Mill – a compact powerhouse for small production
Key features:
- New FEA-optimized casting (base + column) for greater stiffness.
- Larger travel ranges, higher spindle speeds and rapid feed modes.
- Improved Y-axis flush nozzle + 170L coolant tank with easy maintenance.
- Easy integration with Haas Robot Package and automatic feeders.
- Designed for confined spaces.
Applications:
- Prototyping, small series and production in tight workshops.
- Automated processing of parts in small-scale factories.
- Perfect for beginners and companies looking for economical precision.
The Mini Mill is a new era of Haas compact milling.
Technical Parameters
| SKU: | MINIMILL |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 356 |
| Table width (mm): | 1016 |
| Minimum distance between spindle and table (mm): | 102.00 |
| Maximum spindle-to-table distance (mm): | 457.00 |
| Workpiece clamping surface (mm): | 832x356 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 227.00 |
| Maximum workpiece weight (kg): | 227.00 |
| X-axis travel (mm): | 508 |
| Y-axis travel (mm): | 406 |
| Z-axis travel (mm): | 356 |
| X-axis cutting feedrate (m/min): | 12.7 |
| Y-axis cutting feedrate (m/min): | 12.70 |
| Z-axis cutting feedrate (m/min): | 12.70 |
| Maximum spindle speed (rpm): | 6000 |
| Maximum spindle torque (Nm): | 45 |
| Number of tools in the magazine: | 20 |
| Tool-to-tool change time (s): | 3.6 |
| Tool-to-tool / Chip-to-chip / change time (s): | 5.00 |
| Maximum tool diameter / all tools / (mm): | 89 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 89.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 305.00 |
| Clamping taper type: | BT40 / CT40 |
| Maximum Z-axis drive pulling force (kN): | 8.90 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 1814 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 151.00 |
| Number of axes: | 3 (opcja 4/5) |
