Product description

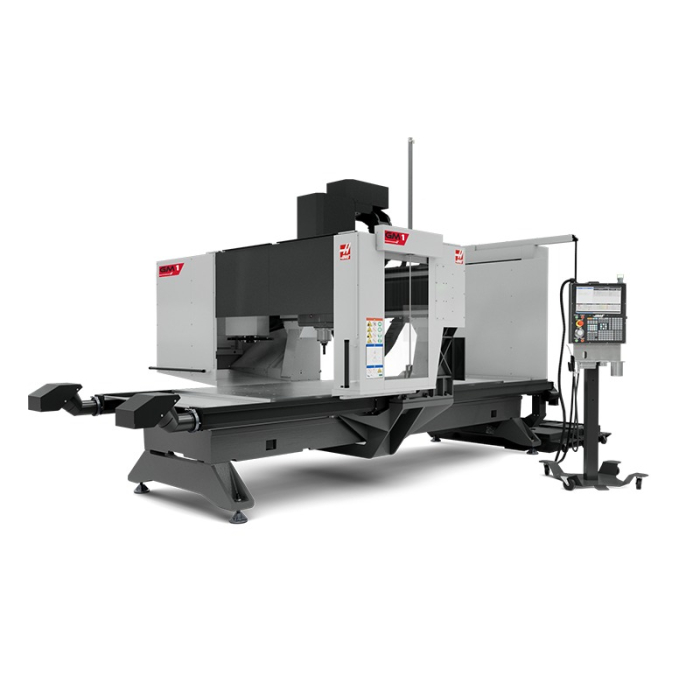

Haas GM-1 – a rugged 3-axis gantry mill for large workpieces
The GM-1 is a robust, 3-axis gantry milling machine designed for machining large and demanding parts such as airframe components, molds, composite structures, and long extrusions.
The machine features a rigid cast iron structure that provides exceptional stability during operation, guaranteeing precise and reliable machining. It comes standard with a 1" (25 mm) thick aluminum table, ideal for clamping a variety of workpieces. Additionally, a movable guard protects the operator from chips and coolant and keeps the work area clean.
Key features:
- Robust 40-taper direct drive spindle for high performance,
- Wide spacing between columns – 62" (1575 mm) – allows for processing large workpieces,
- Durable, stable cast iron construction,
- Movable cover for safety and cleanliness of the station,
- 1" (25 mm) thick aluminum table.
The GM-1 is the perfect solution for companies needing a durable and precise machine for machining large, heavy components.
Technical Parameters
| SKU: | GM-1 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 3124 |
| Table width (mm): | 1346 |
| Minimum distance between spindle and table (mm): | 64.00 |
| Maximum spindle-to-table distance (mm): | 470.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 2,722.00 |
| Maximum workpiece weight (kg): | 2,722.00 |
| X-axis travel (mm): | 3073 |
| Y-axis travel (mm): | 1549 |
| Z-axis travel (mm): | 406 |
| X-axis feedrate (m/min): | 20.3 |
| Y-axis feedrate (m/min): | 53.3 |
| Z-axis feedrate (m/min): | 27.9 |
| Maximum spindle speed (rpm): | 8100 |
| Spindle power (kW): | 22.4 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 89.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 279.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 20.01 |
| Maximum Y-axis drive pulling force (kN): | 7.32 |
| Maximum Z-axis drive pulling force (kN): | 2.20 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 440 |
| Number of axes: | 3 |
