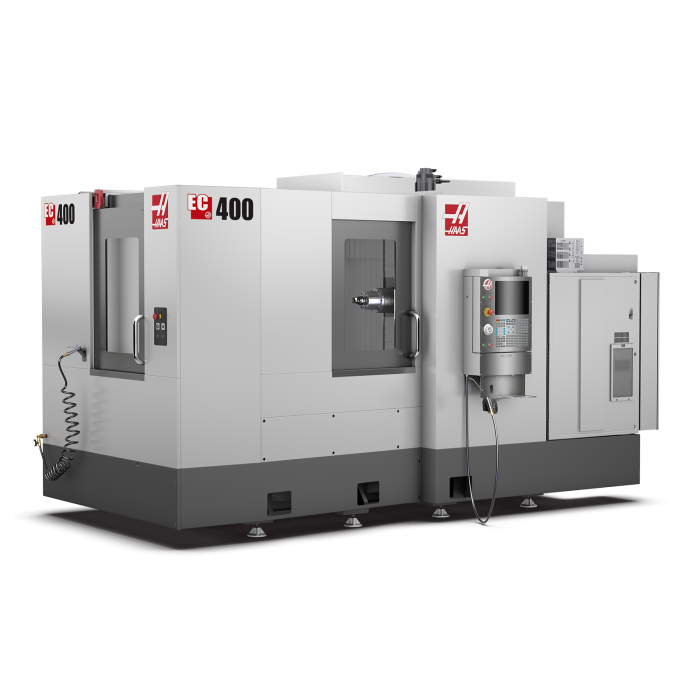

Haas EC-400 Horizontal Milling Machine
SKU: EC-400
Haas EC-400 Horizontal Mill with Pallet System This is Haas' most popular CNC horizontal milling machine, equipped with a standard palletizing system that significantly increases productivity in mass production. Rapid pallet switching minimizes setup times, material loading, and finished part removal. Key features: ISO 40 taper – full compatibility with tools used on all Haas machining centers, Standard palletizing system – faster and smoother multi-batch production, Full automation of the changeover process – reduced downtime and increased efficiency, Stable horizontal construction – high accuracy in serial processing, Versatility – ability to process a wide range of details. Benefits for the user: Shortened production times – thanks to palletization and minimized downtime, Full tool compatibility – use of the ISO 40 standard across the entire Haas machine tool range, Easy integration into the production line – ideal for serial and large-scale production, High efficiency – possibility of continuous operation without stopping the production process. The Haas horizontal mill with pallet system is the ideal solution for companies that want productivity, fast batch processing, and tooling versatility in one reliable CNC machine.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas EC-400 Horizontal Mill with Pallet System
This is Haas' most popular CNC horizontal milling machine, equipped with a standard palletizing system that significantly increases productivity in mass production. Rapid pallet switching minimizes setup times, material loading, and finished part removal.
Key features:
- ISO 40 taper – full compatibility with tools used on all Haas machining centers,
- Standard palletizing system – faster and smoother multi-batch production,
- Full automation of the changeover process – reduced downtime and increased efficiency,
- Stable horizontal construction – high accuracy in serial processing,
- Versatility – ability to process a wide range of details.
Benefits for the user:
- Shortened production times – thanks to palletization and minimized downtime,
- Full tool compatibility – use of the ISO 40 standard across the entire Haas machine tool range,
- Easy integration into the production line – ideal for serial and large-scale production,
- High efficiency – possibility of continuous operation without stopping the production process.
The Haas horizontal mill with pallet system is the ideal solution for companies that want productivity, fast batch processing, and tooling versatility in one reliable CNC machine.
Technical Parameters
| SKU: | EC-400 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pozioma |
| Table length (mm): | 400 |
| Maximum workpiece diameter (mm): | 559 |
| Number of T-slots: | 4 |
| Table execution (design): | rowki teowe T |
| Automatic pallet changer (APC): | Tak |
| Number of pallets: | 2 |
| Pallet dimensions (mm): | 400x400 |
| Maximum workpiece weight (kg): | 453.60 |
| Pallet change time (s): | 8 |
| Pallet change system: | obrotowy |
| X-axis travel (mm): | 559 |
| Y-axis travel (mm): | 635 |
| Z-axis travel (mm): | 559 |
| Y-axis cutting feedrate (m/min): | 21.20 |
| Z-axis cutting feedrate (m/min): | 21.20 |
| B-axis feed rate (°/s): | 150.00 |
| C-axis feedrate (°/s): | 120.00 |
| Maximum spindle speed (rpm): | 8100 |
| Spindle power (kW): | 22.4 |
| Maximum spindle torque (Nm): | 122 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 30+1 |
| Tool-to-tool / Chip-to-chip / change time (s): | 3.60 |
| Maximum tool diameter / all tools / (mm): | 64 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 127.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 127.00 |
| Clamping taper type: | BT40 / CT40 / HSK-A 63 |
| Maximum X-axis drive feed force (kN): | 15.04 |
| Maximum Y-axis drive pulling force (kN): | 12.50 |
| Maximum Z-axis drive pulling force (kN): | 15.04 |
| Maximum torque of B-axis (Nm): | 575.00 |
| Repeatability (mm): | 0.00 |
| 4th-Axis Repeatability (s): | 10.00 |
| Machine weight (kg): | 8618 |
| Compressed air consumption (l/min): | 255.00 |
| Compressed air pressure (bar): | 5.50 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 360.00 |
| Number of axes: | 4 |
