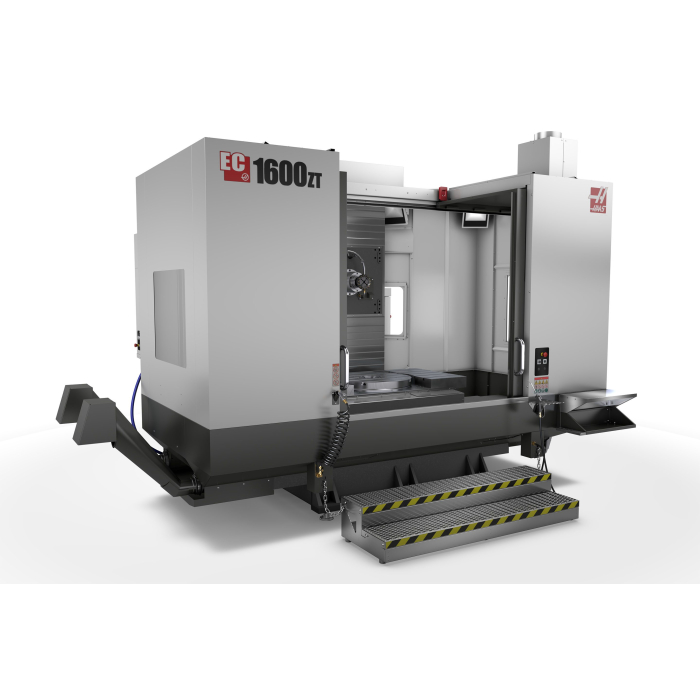

Haas EC-1600ZT Horizontal Milling Machine
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas EC-1600ZT Horizontal Metal Milling Machine – Powerful Machining Centers for Large Parts
Haas EC Series machining centers are popular machines designed for machining heavy, large workpieces, with maximum part weights up to approximately 4.5 tons. This makes them an ideal choice for shops needing a precise and efficient center for large workpieces.
Select models offer a 4-axis rotary plate integrated with a T-slot table, allowing easy access to all four sides of the workpiece or simultaneous multi-axis machining. The EC-1600ZT features a larger Z-axis travel than the standard EC-1600, providing even greater machining flexibility.
Key features:
- Extended Z-axis movement range,
- Standard tool magazine 50+1 positions,
- 50 taper spindle with 2-speed gearbox for optimal power and speed,
- Very large work area adapted to heavy details,
- Maximum part passage up to 78" thanks to integrated 4th axis (optional).
Haas EC machining centers are designed for companies that need efficient and robust solutions for machining large and heavy parts with the highest precision and stability.
Technical Parameters
| SKU: | EC-1600ZT |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pozioma |
| Table length (mm): | 1626 |
| Table width (mm): | 914 |
| Table diameter (mm): | 762 |
| Number of T-slots: | 7 |
| Szerokość rowków (mm): | 15.90/16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Automatic pallet changer (APC): | Opcja |
| Maximum workpiece weight (kg): | 453.60 |
| X-axis travel (mm): | 1626 |
| Y-axis travel (mm): | 1270 |
| Z-axis travel (mm): | 1016 |
| Swing over covers (mm): | 1,981.00 |
| Y-axis cutting feedrate (m/min): | 12.70 |
| Z-axis cutting feedrate (m/min): | 12.70 |
| B-axis feed rate (°/s): | 36.00 |
| C-axis feedrate (°/s): | 36.00 |
| Maximum spindle speed (rpm): | 7500 |
| Spindle power (kW): | 22.4 |
| Maximum spindle torque (Nm): | 460 |
| Spindle drive type: | 2-stopniowa przekładnia zębata |
| Number of tools in the magazine: | 30+1 |
| Tool-to-tool change time (s): | 8 |
| Tool-to-tool / Chip-to-chip / change time (s): | 12.60 |
| Maximum tool diameter / all tools / (mm): | 102 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 254.00 |
| Maximum tool weight (kg): | 13.60 |
| Maximum tool length (mm): | 508.00 |
| Clamping taper type: | BT50 / CT50 |
| Maximum X-axis drive feed force (kN): | 17.79 |
| Maximum Y-axis drive pulling force (kN): | 35.59 |
| Maximum Z-axis drive pulling force (kN): | 35.59 |
| B-axis braking torque (Nm): | 5,423.00 |
| Maximum torque of B-axis (Nm): | 2,712.00 |
| Repeatability (mm): | 0.01 |
| 4th-Axis Repeatability (s): | 10.00 |
| Machine weight (kg): | 14545 |
| Compressed air consumption (l/min): | 255.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 440 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 360.00 |
| Number of axes: | 3 (opcja 4) |
