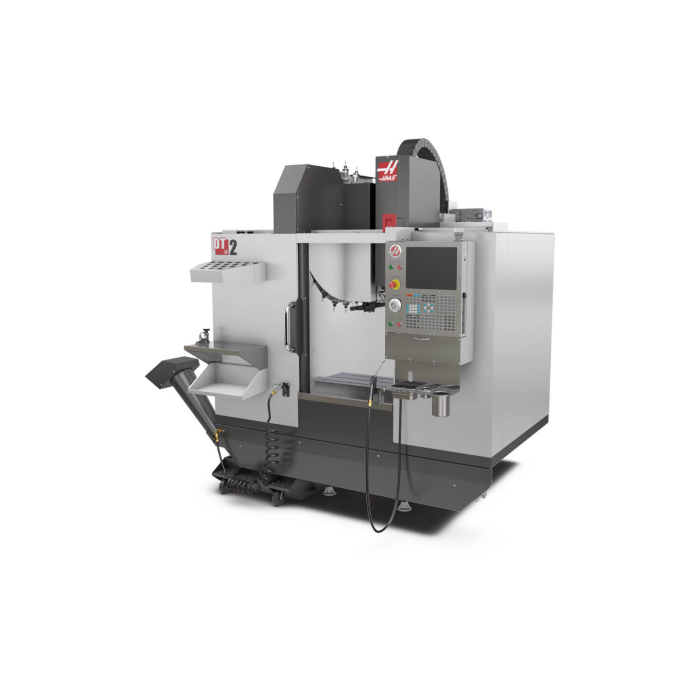

DT-2 vertical milling machine
SKU: DT-2
Haas DT-2 – a fast and efficient vertical milling machine The DT-2 is a larger version of the super-fast HAAS DT-1 drilling and tapping center. The machine offers an increased travel of 711 x 406 mm, allowing it to process workpieces similar in size to those produced on the popular Haas VF-2 center, but with significantly higher dynamic performance. Key features: Enlarged workspace – passages 711 x 406 mm, Super-fast, low-inertia spindle – shorter cycle times, Very fast tool change – maximizing efficiency, Higher dynamics than in traditional VF centers – faster production while maintaining precision, Compact design – saves space while maintaining high processing capabilities. Benefits for the user: Ability to perform machining comparable to VF-2, but much faster and more efficiently, Cycle time reduction thanks to dynamic design and quick tool change, The perfect solution for companies that need a compact yet extremely fast vertical milling machine to produce precise details. The HAAS DT-2 combines a larger workspace with high dynamics, which translates into shorter cycle times, greater efficiency and time savings in production.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas DT-2 – a fast and efficient vertical milling machine
The DT-2 is a larger version of the super-fast HAAS DT-1 drilling and tapping center. The machine offers an increased travel of 711 x 406 mm, allowing it to process workpieces similar in size to those produced on the popular Haas VF-2 center, but with significantly higher dynamic performance.
Key features:
- Enlarged workspace – passages 711 x 406 mm,
- Super-fast, low-inertia spindle – shorter cycle times,
- Very fast tool change – maximizing efficiency,
- Higher dynamics than in traditional VF centers – faster production while maintaining precision,
- Compact design – saves space while maintaining high processing capabilities.
Benefits for the user:
- Ability to perform machining comparable to VF-2, but much faster and more efficiently,
- Cycle time reduction thanks to dynamic design and quick tool change,
- The perfect solution for companies that need a compact yet extremely fast vertical milling machine to produce precise details.
The HAAS DT-2 combines a larger workspace with high dynamics, which translates into shorter cycle times, greater efficiency and time savings in production.
Technical Parameters
| SKU: | DT-2 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 381 |
| Table width (mm): | 864 |
| Maximum spindle-to-table distance (mm): | 546.00 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 113.00 |
| Maximum workpiece weight (kg): | 113.00 |
| X-axis travel (mm): | 711 |
| Y-axis travel (mm): | 406 |
| Z-axis travel (mm): | 394 |
| X-axis feedrate (m/min): | 61 |
| Y-axis feedrate (m/min): | 61 |
| Z-axis feedrate (m/min): | 61 |
| Y-axis cutting feedrate (m/min): | 30.50 |
| Z-axis cutting feedrate (m/min): | 30.50 |
| Maximum spindle speed (rpm): | 15000 |
| Maximum spindle torque (Nm): | 62 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 20 |
| Tool-to-tool / Chip-to-chip / change time (s): | 2.00 |
| Maximum tool diameter / all tools / (mm): | 51 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 178.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 178.00 |
| Maximum X-axis drive feed force (kN): | 11.30 |
| Maximum Y-axis drive pulling force (kN): | 11.30 |
| Maximum Z-axis drive pulling force (kN): | 18.60 |
| Repeatability (mm): | 0.00 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 170.00 |
| Number of axes: | 3 (opcja 4/5) |
