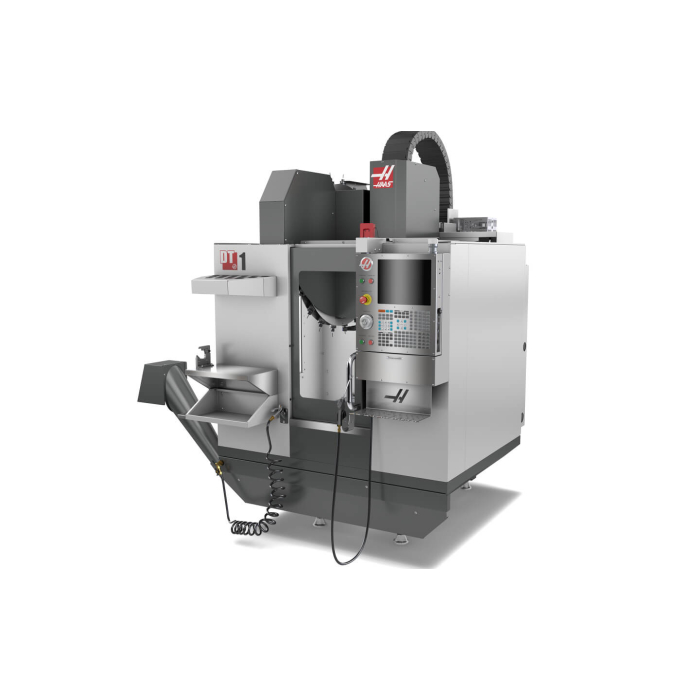

DT-1 vertical milling machine
SKU: DT-1
Haas DT-1 – a compact and super-fast vertical milling machine The Haas DT-1 is a compact, high-speed drill-tap machining center designed specifically for high-volume production of small parts. Its high dynamic range and fast cycle times significantly reduce production times. Key features: ISO 30 taper – light and fast tool configuration, 10,000 rpm spindle (optional up to 20,000 rpm) – full machining flexibility, Adjustment speeds up to 61 m/min – maximum cycle speed, Radial side changer – instant tool switching, Compact design – ideal for working in a small production space. Benefits for the user: High efficiency – optimized for high-volume production, Short processing times – thanks to dynamic travel and quick tool changes, Precision and repeatability – ideal for small, demanding components, Space-saving – a small machine with big possibilities. The Haas DT-1 is the ideal solution for companies looking for a compact, yet ultra-fast drill-tap center that delivers maximum productivity for producing small parts in high volumes.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas DT-1 – a compact and super-fast vertical milling machine
The Haas DT-1 is a compact, high-speed drill-tap machining center designed specifically for high-volume production of small parts. Its high dynamic range and fast cycle times significantly reduce production times.
Key features:
- ISO 30 taper – light and fast tool configuration,
- 10,000 rpm spindle (optional up to 20,000 rpm) – full machining flexibility,
- Adjustment speeds up to 61 m/min – maximum cycle speed,
- Radial side changer – instant tool switching,
- Compact design – ideal for working in a small production space.
Benefits for the user:
- High efficiency – optimized for high-volume production,
- Short processing times – thanks to dynamic travel and quick tool changes,
- Precision and repeatability – ideal for small, demanding components,
- Space-saving – a small machine with big possibilities.
The Haas DT-1 is the ideal solution for companies looking for a compact, yet ultra-fast drill-tap center that delivers maximum productivity for producing small parts in high volumes.
Technical Parameters
| SKU: | DT-1 |
|---|---|
| Brand: | Haas |
| Machine tool type: | Pionowa |
| Table length (mm): | 381 |
| Table width (mm): | 660 |
| Maximum spindle-to-table distance (mm): | 546.00 |
| Number of T-slots: | 3 |
| Szerokość rowków (mm): | 16 |
| Distance between T-slot centers (mm): | 125.00 |
| Table execution (design): | rowki teowe T |
| Maximum rotary table load (kg): | 113.00 |
| Maximum workpiece weight (kg): | 113.00 |
| X-axis travel (mm): | 508 |
| Y-axis travel (mm): | 406 |
| Z-axis travel (mm): | 394 |
| X-axis feedrate (m/min): | 61 |
| Y-axis feedrate (m/min): | 61 |
| Z-axis feedrate (m/min): | 61 |
| Y-axis cutting feedrate (m/min): | 30.50 |
| Z-axis cutting feedrate (m/min): | 30.50 |
| Maximum spindle speed (rpm): | 15000 |
| Maximum spindle torque (Nm): | 62 |
| Spindle drive type: | Inline Direct-Drive |
| Number of tools in the magazine: | 20 |
| Tool-to-tool / Chip-to-chip / change time (s): | 2.00 |
| Maximum tool diameter / all tools / (mm): | 51 |
| Maximum tool diameter / adjacent pockets empty / (mm): | 178.00 |
| Maximum tool weight (kg): | 5.40 |
| Maximum tool length (mm): | 178.00 |
| Maximum X-axis drive feed force (kN): | 11.30 |
| Maximum Y-axis drive pulling force (kN): | 11.30 |
| Maximum Z-axis drive pulling force (kN): | 18.60 |
| Repeatability (mm): | 0.00 |
| Machine weight (kg): | 1905 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 3x400 |
| Frequency (Hz): | 50.00 |
| Coolant Tank Capacity (L): | 170.00 |
| Number of axes: | 3 (opcja 4/5) |
