Elite Robots EC66 Collaborative Robot
SKU: EC66
Elite Robots EC66 – lightness, flexibility and efficiency in one. The Elite Robots EC66 is a versatile collaborative robot designed to increase process efficiency while maintaining simplicity and safety. Its lightweight and moderate payload make it ideal for a variety of industrial applications, from light assembly and part handling to supporting automation tasks on production lines. The EC66 is designed to easily integrate with existing systems and workstations, including mobile platforms and autonomous trucks. This flexibility shortens implementation time and accelerates return on investment, making the EC66 a particularly attractive solution for companies seeking intelligent and cost-effective automation. Key features: Light weight – easy to transport, configure and integrate, Versatile use – ideal for tasks with a moderate load capacity, Fast integration – compatible with various systems and mobile workstations, Investment savings – shorter payback time and maximum operational efficiency, Safe collaboration with humans – built-in security and intuitive control, Industrial-grade construction – durability combined with modern design. Why EC66? The Elite Robots EC66 is a cobot that combines mobility and functionality in a compact design. It's the ideal partner for companies seeking an efficient, flexible, and cost-effective solution for automating medium-complexity processes.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description

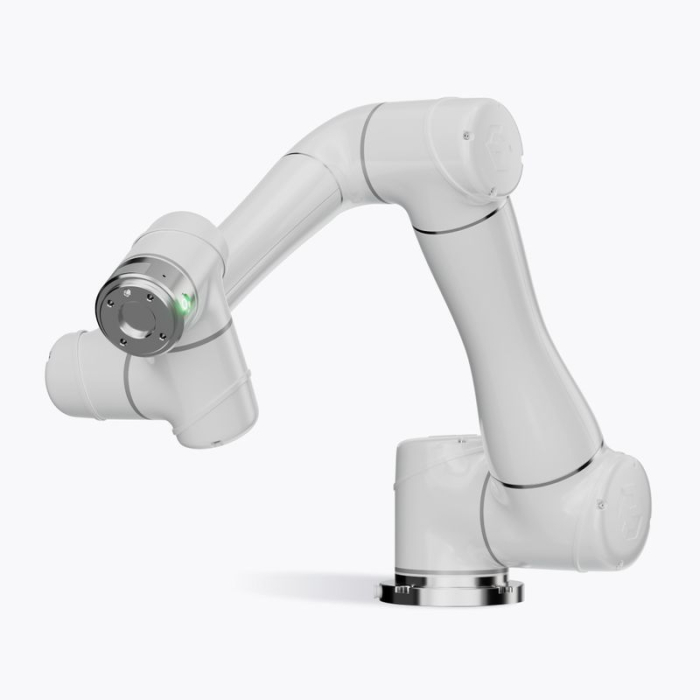

Elite Robots EC66 – lightness, flexibility and efficiency in one.
The Elite Robots EC66 is a versatile collaborative robot designed to increase process efficiency while maintaining simplicity and safety. Its lightweight and moderate payload make it ideal for a variety of industrial applications, from light assembly and part handling to supporting automation tasks on production lines.
The EC66 is designed to easily integrate with existing systems and workstations, including mobile platforms and autonomous trucks. This flexibility shortens implementation time and accelerates return on investment, making the EC66 a particularly attractive solution for companies seeking intelligent and cost-effective automation.
Key features:
- Light weight – easy to transport, configure and integrate,
- Versatile use – ideal for tasks with a moderate load capacity,
- Fast integration – compatible with various systems and mobile workstations,
- Investment savings – shorter payback time and maximum operational efficiency,
- Safe collaboration with humans – built-in security and intuitive control,
- Industrial-grade construction – durability combined with modern design.
Why EC66?
The Elite Robots EC66 is a cobot that combines mobility and functionality in a compact design. It's the ideal partner for companies seeking an efficient, flexible, and cost-effective solution for automating medium-complexity processes.
Technical Parameters
| SKU: | EC66 |
|---|---|
| Brand: | Elite Robots |
| Workpiece weight (wrist) (kg): | 6.00 |
| Repeatability (mm): | ± 0.03 |
| TCP speed (m/min): | 2.80 |
| Arm weight: | 17.50 |
| Maximum robot payload (kg): | 6.00 |
| Reach radius in (mm): | 914.00 |
| Typical TCP speed (Mbps): | 1.50 |
| Number of axes: | 6 |
| Software packages: | tak |
| Teach Pendant: | tak |
| IP protection rating: | 54 |
FAQ
What is Elite Robots EC66 and what is it used for?
The Elite Robots EC66 is a 6-axis collaborative robot for light- to medium-duty automation tasks such as assembly, part handling, dispensing, machine tending, and mobile applications. The manufacturer claims a payload of 6 kg and a reach of 914 mm.
What are the basic parameters of EC66?
The EC66 has 6 axes, a payload of 6 kg, a reach of 914 mm, and a repeatability of ±0.03 mm. Sources also report a mass of 15–17.5 kg, a compact footprint of approximately Ø150 mm, and TCP speeds of up to 1.5–2.8 m/s depending on configuration and source.
What makes the EC66 design unique?
The model is lightweight, compact, and easy to carry, making it ideal for integration with existing workstations and mobile platforms. The manufacturer and distributors also emphasize its simple installation and quick commissioning.
What are the main uses of EC66?
The EC66 is suitable for light assembly, pick and place, quality control, dispensing, palletizing small loads, and machine tending. Industry literature also highlights applications in electronics, packaging, logistics, and machine vision.
What does programming and operation look like?
The robot features an intuitive interface, remote operation via laptop, smartphone, or tablet, and real-time monitoring functions. The documentation also includes graphical programming tools and optional connections to mobile systems.
Is the EC66 suitable for collaborative operation?
Yes, the EC66 is part of the Elite Robots cobot series and is designed for safe collaboration with humans. The materials include Advanced Collision Detection and compliance with standard cobot safety standards.
What communication possibilities does it have?
The EC66 offers 16 DI, 20 DO, 2 AI, 4 AO, Ethernet, RS485/RS232, TCP/IP, Modbus TCP/RTU, Profinet, EtherNet/IP, and CC-Link, depending on the version. This provides considerable flexibility for integration into production lines and automation systems.
For which companies will the EC66 be the best choice?
The EC66 is ideal for companies looking for a compact, economical, and versatile cobot for light to medium automation. It's most suitable for confined spaces, mobile applications, and applications where ease of implementation and a quick return on investment are key.
