Product description

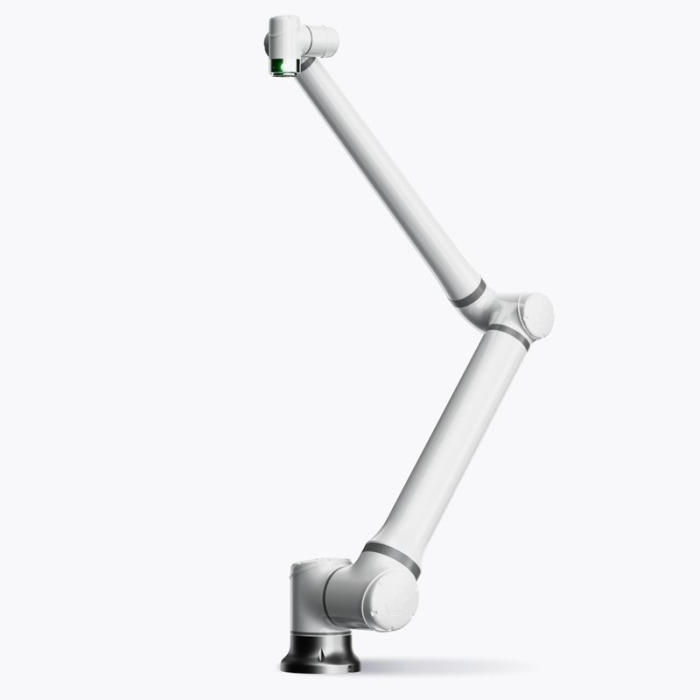

Elite Robots EC64-19 – speed, range and precision without compromise.
The Elite Robots EC64-19 is the fastest cobot in the brand's portfolio, designed for applications requiring maximum dynamic range and reach. With an impressive 4.0 m/sec TCP speed and a 1900 mm reach radius, this model effortlessly handles large work areas while maintaining complete accuracy and smooth motion.
The EC64-19 features an innovative design and optimized kinematics, allowing it to perform tasks in record time, such as visual inspection. It's the ideal solution for companies that prioritize speed, efficiency, and technological advantage.
Key features:
- TCP speed up to 4.0 m/s – the highest in the entire Elite Robots family,
- 1900mm radius of reach – industry-leading working range while maintaining full precision,
- Fast and smooth operation – perfect for tasks requiring high dynamics,
- Perfect for large workstations – maximum space coverage and flexibility,
- High repeatability of movement – precise execution even at high speeds,
- Optimized cycle time – increased productivity and operational efficiency.
Why EC64-19?
The Elite Robots EC64-19 is a symbol of modern automation – fast, powerful, and precise. For companies requiring greater reach and speed, this model offers the perfect combination of efficiency, reliability, and intelligent collaboration.
Technical Parameters
| SKU: | EC64-19 |
|---|---|
| Brand: | Elite Robots |
| Workpiece weight (wrist) (kg): | 4.00 |
| Repeatability (mm): | ± 0.1 |
| TCP speed (m/min): | 4.00 |
| Arm weight: | 33.50 |
| Maximum robot payload (kg): | 4.00 |
| Reach radius in (mm): | 1,900.00 |
| Typical TCP speed (Mbps): | 1.50 |
| Number of axes: | 6 |
| Software packages: | tak |
| Teach Pendant: | tak |
| IP protection rating: | 54 |
FAQ
What is Elite Robots EC64-19 and what is it used for?
Elite Robots EC64-19 is a 6-axis cobot from the EC series, designed for tasks requiring very long reach and high dynamics, such as vision inspection, sorting, light assembly operations, and handling large components. The manufacturer claims a reach of 1900 mm and a payload capacity of 4 kg, positioning it as the fastest model in the EC family.
What are the basic parameters of EC64-19?
The EC64-19 has six axes, a payload of 4 kg, a reach of 1900 mm, and a repeatability of ±0.1 mm. Sources also indicate a weight of approximately 33.5–34 kg and a maximum TCP speed of 4.0 m/s.
What makes the EC64-19 design unique?
Its key distinguishing feature is the combination of a very long reach and high movement speed, without sacrificing precision. The manufacturer emphasizes that the robot allows for the inspection and photography of large parts within a spherical space of 1.9 m without the use of external axes.
What are the main applications of EC64-19?
The EC64-19 is suitable for vision inspection, sorting, light assembly, positioning, and large component applications. References also indicate applications in automotive, electronics, manufacturing, and 3D scanning.
What does programming and operation look like?
The robot offers graphical, offline, JBI, free-drive, and Lua scripting programming, as well as an intuitive interface with a 12.1-inch touchscreen panel. This facilitates rapid implementation and application changes without complex configuration.
Is the EC64-19 suitable for collaborative operation?
Yes, the EC64-19 is part of the cobot family and has safety features, including Advanced Collision Detection with 90-degree settings. This allows for safe collaboration with an operator in a variety of applications.
What communication possibilities does it have?
The EC64-19 supports Ethernet, RS485/RS232, TCP/IP, Modbus TCP/RTU, EtherNet/IP, Profinet, and CC-Link, as well as extensive inputs and outputs, making it easy to integrate into existing automation and vision systems.
For which companies will EC64-19 be the best choice?
The EC64-19 is ideal for companies requiring the fastest cobot with a very long reach for fast and precise applications. It is ideal for large part inspection, electronics, automotive, and anywhere else requiring a combination of speed and a wide range of work.
