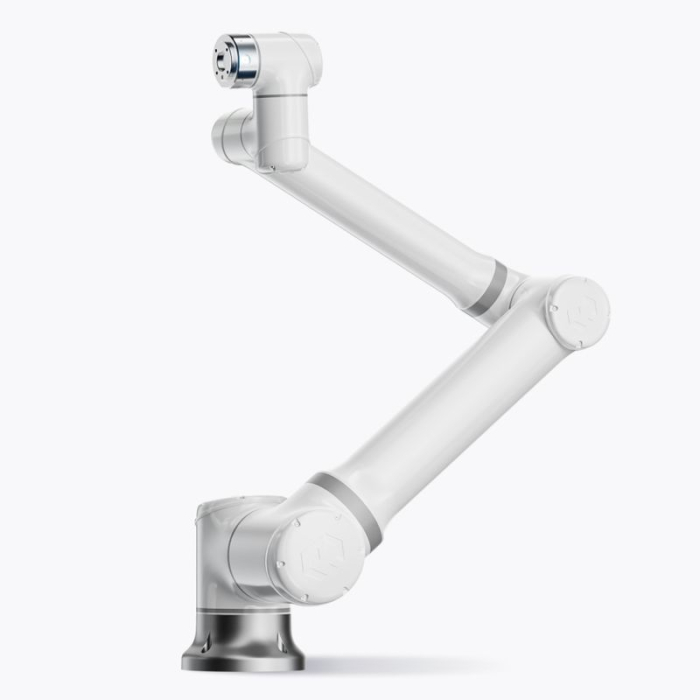

Elite Robots EC612 collaborative robot
SKU: EC612
Elite Robots EC612 – performance and precision in perfect balance. The Elite Robots EC612 is a versatile mid-range collaborative robot designed to automate processes requiring payloads up to 12 kg. The combination of high payload capacity and a reach radius of 1304 mm makes the EC612 ideal for applications requiring cross-functional operation, such as packaging, palletizing, component handling, and machine tending. The robot's design is optimized for stability, precision, and easy integration into production systems. The EC612 ensures smooth movement, repeatability, and safety while occupying a small footprint, making it an ideal solution for companies seeking to increase work efficiency. Key features: 12 kg load capacity – ideal for medium loads and diverse production processes, 1304 mm reach – allows for handling larger workspaces without losing precision, Stability and accuracy – reliable operation even when working at maximum range, Versatility of applications – packaging, palletizing, manipulation, machine operation, Easy integration and programming – short setup time and flexible adaptation to the application, Safe collaboration with humans – built-in protection systems and force control. Why EC612? The Elite Robots EC612 is an excellent choice for companies requiring a robot that combines the power, reach, and precision of a mid-range cobot. It enables seamless process automation, increasing productivity and optimizing operating costs.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Elite Robots EC612 – performance and precision in perfect balance.
The Elite Robots EC612 is a versatile mid-range collaborative robot designed to automate processes requiring payloads up to 12 kg. The combination of high payload capacity and a reach radius of 1304 mm makes the EC612 ideal for applications requiring cross-functional operation, such as packaging, palletizing, component handling, and machine tending.
The robot's design is optimized for stability, precision, and easy integration into production systems. The EC612 ensures smooth movement, repeatability, and safety while occupying a small footprint, making it an ideal solution for companies seeking to increase work efficiency.
Key features:
- 12 kg load capacity – ideal for medium loads and diverse production processes,
- 1304 mm reach – allows for handling larger workspaces without losing precision,
- Stability and accuracy – reliable operation even when working at maximum range,
- Versatility of applications – packaging, palletizing, manipulation, machine operation,
- Easy integration and programming – short setup time and flexible adaptation to the application,
- Safe collaboration with humans – built-in protection systems and force control.
Why EC612?
The Elite Robots EC612 is an excellent choice for companies requiring a robot that combines the power, reach, and precision of a mid-range cobot. It enables seamless process automation, increasing productivity and optimizing operating costs.
Technical Parameters
| SKU: | EC612 |
|---|---|
| Brand: | Elite Robots |
| Workpiece weight (wrist) (kg): | 12.00 |
| Repeatability (mm): | ± 0.05 |
| TCP speed (m/min): | 3.20 |
| Arm weight: | 33.50 |
| Maximum robot payload (kg): | 12.00 |
| Reach radius in (mm): | 1,304.00 |
| Typical TCP speed (Mbps): | 1.50 |
| Number of axes: | 6 |
| Software packages: | tak |
| Teach Pendant: | tak |
| IP protection rating: | 54 |
FAQ
What is Elite Robots EC612 and what is it used for?
The Elite Robots EC612 is a mid-range, 6-axis collaborative robot designed to automate tasks requiring payloads up to 12 kg, such as packaging, palletizing, component handling, and machine tending. This model combines a 1304 mm reach with a compact design, making it well-suited for applications spanning multiple work zones.
What are the basic parameters of EC612?
The EC612 has a payload capacity of 12 kg, a reach of 1304 mm, and a repeatability of ±0.05 mm. The available technical data also includes a weight of 32 kg, a TCP speed of up to 3.4 m/s, and an IP65 sealing rating.
What makes the EC612 design unique?
Its key advantage is the combination of long reach with excellent stability and precision, even when working at maximum reach. The robot was designed to take up minimal space and easily fit into existing production lines.
What are the main uses of EC612?
The EC612 is suitable for packaging, palletizing, part handling, machine operation, and in-plant logistics. Its good balance of power and reach allows it to operate in positions requiring reach between different work areas.
What does programming and integration look like?
The robot is designed for quick setup and easy integration into production systems. This translates to shorter implementation times and easier application adaptation than heavier industrial robots.
Is EC612 safe for collaborative work?
Yes, the EC612 is part of the cobot family, so it supports safe collaboration with the operator. Built-in safety systems and force control help reduce the risk of human-robot contact.
What communication possibilities does it have?
The EC612 supports industry-standard integration with automation and peripherals, simplifying implementation on production lines. This allows it to be used in both simple stations and more complex systems.
For which companies will the EC612 be the best choice?
The EC612 is a good choice for companies that need a robot with a medium payload, long reach, and high precision, but still want the flexibility of a cobot. It's best suited for applications where efficiency, ease of use, and optimized operating costs are key.
