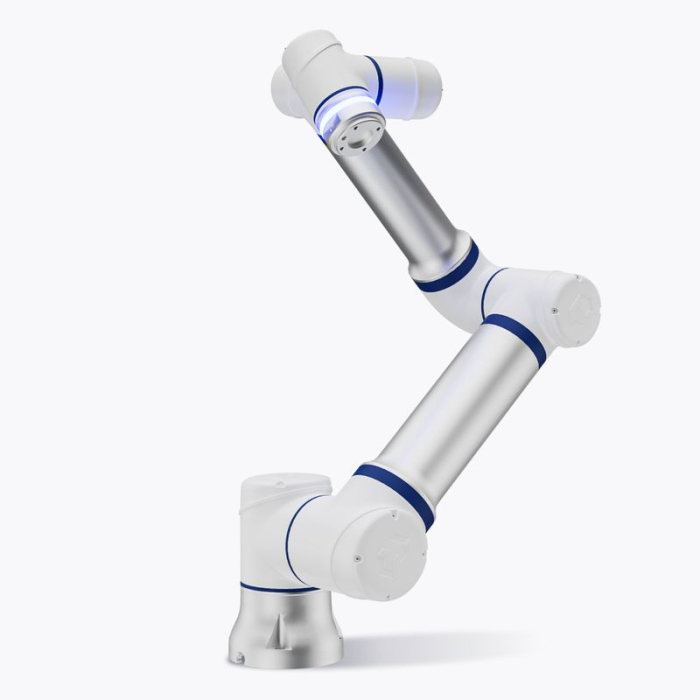

Elite Robots CS66 Collaborative Robot
SKU: CS66
Elite Robots CS66 – the perfect balance of power and precision. The Elite Robots CS66 is a versatile collaborative robot that combines power, reach, and flexibility in one compact solution. With a payload capacity of 6 kg and a reach radius of 914 mm, this model is an ideal choice for automating medium-duty processes—from precision assembly to machine tending and quality control. The CS66 was designed as a universal manufacturing partner – its setup is quick and intuitive, and its adaptability allows the robot to adapt to a variety of environments and tasks. It seamlessly integrates with 2D and 2.5D vision systems, opening up a wide range of applications, including inspection, gluing, container retrieval, and screw tightening. Key features: 6 kg load capacity – ideal for tasks requiring greater power and stability, 914 mm range – optimal balance between compact size and wide operating area, Quick setup – easy to start and program, ready to work in a short time, Cooperation with 2D/2.5D vision systems – increased precision and detection capabilities, Versatile applications – from assembly, gluing and inspection to handling work, Designed with collaboration in mind – safe, flexible and ready to work side by side with humans. Why CS66? Elite Robots CS66 is the perfect combination of power and precision – a robot that not only automates processes, but makes them more intuitive, efficient and user-friendly.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Elite Robots CS66 – the perfect balance of power and precision.
The Elite Robots CS66 is a versatile collaborative robot that combines power, reach, and flexibility in one compact solution. With a payload capacity of 6 kg and a reach radius of 914 mm, this model is an ideal choice for automating medium-duty processes—from precision assembly to machine tending and quality control.
The CS66 was designed as a universal manufacturing partner – its setup is quick and intuitive, and its adaptability allows the robot to adapt to a variety of environments and tasks. It seamlessly integrates with 2D and 2.5D vision systems, opening up a wide range of applications, including inspection, gluing, container retrieval, and screw tightening.
Key features:
- 6 kg load capacity – ideal for tasks requiring greater power and stability,
- 914 mm range – optimal balance between compact size and wide operating area,
- Quick setup – easy to start and program, ready to work in a short time,
- Cooperation with 2D/2.5D vision systems – increased precision and detection capabilities,
- Versatile applications – from assembly, gluing and inspection to handling work,
- Designed with collaboration in mind – safe, flexible and ready to work side by side with humans.
Why CS66?
Elite Robots CS66 is the perfect combination of power and precision – a robot that not only automates processes, but makes them more intuitive, efficient and user-friendly.
Technical Parameters
| SKU: | CS66 |
|---|---|
| Brand: | Elite Robots |
| Workpiece weight (wrist) (kg): | 6.00 |
| Repeatability (mm): | ± 0.03 |
| TCP speed (m/min): | 1.50 |
| Arm weight: | 22.00 |
| Maximum robot payload (kg): | 6.00 |
| Reach radius in (mm): | 914.00 |
| Typical TCP speed (Mbps): | 1.50 |
| Number of axes: | 6 |
| Software packages: | tak |
| Teach Pendant: | tak |
| IP protection rating: | 65 / 68 (opcja) |
FAQ
What is Elite Robots CS66 and what is it used for?
The Elite Robots CS66 is a versatile collaborative robot designed to automate medium-duty processes such as assembly, machine tending, inspection, and container retrieval. The manufacturer and distributors list it with a payload capacity of 6 kg and a reach of 914 mm.
What are the basic parameters of CS66?
The CS66 has six axes, a payload of 6 kg, a reach of 914 mm, and a repeatability of ±0.03 mm. Sources also mention a compact footprint, a weight of approximately 22 kg, and a TCP speed of up to 1.5 m/s.
What makes the CS66 design unique?
This model combines a relatively long reach with a compact design, making it suitable for use in confined workspaces. The manufacturer positions it as a robot with a good balance between size and power.
What are the main uses of CS66?
The CS66 is suitable for pick & place, assembly, dispensing, quality control, gluing, and light machine tending. The materials also highlight its suitability for use with 2D and 2.5D vision systems.
What does programming and operation look like?
The robot offers an intuitive graphical interface, drag-and-drop programming, and operation via laptop, smartphone, or tablet. The sources also mention the ability to create scripts in Python.
Is the CS66 suitable for collaborative operation?
Yes, the CS Series is designed as a safe collaborative platform, compliant with ISO 13849 and 10218 standards. Collision detection and an optional pendant with a 3-position safety button are also available.
What communication possibilities does it have?
The CS66 supports RS485, Modbus TCP/RTU, Ethernet/IP, Profinet, and TCP/IP, among others, for easy integration with line automation. The product documentation also details extensive input and output options and interface power supply options.
For which companies will CS66 be the best choice?
The CS66 is a good choice for companies needing a versatile cobot for medium-duty tasks without large space requirements. It's most suitable for small and medium-sized lines where flexibility, precision, and rapid deployment are key.
