Elite Robots CS63 Collaborative Robot
SKU: CS63
Elite Robots CS63 – the compact power of precision and collaboration. The Elite Robots CS63 is a modern collaborative robot designed for maximum flexibility, safety, and efficiency. Combining a compact size with impressive strength, it offers a payload of up to 3 kg and a reach of 624 mm, making it ideal for precision assembly, testing, and lightweight component handling tasks. Thanks to its design that allows for 360° rotation in all axes, the CS63 provides complete freedom of movement and access to hard-to-reach areas. Its compact, lightweight design allows the robot to be easily integrated into existing production lines or used in confined spaces. Key features: 3 kg load capacity – ideal for light assembly and handling tasks, 624 mm reach – enables precise operation over a wide range of motion, 360° rotation – complete freedom in every axis, increasing application flexibility, Compact design – easy installation even in tight work spaces, Ease of programming – intuitive interface and quick configuration, High accuracy – ideal for work requiring repeatability and precision, Versatile applications – from assembly and inspection to research and testing. Why CS63? Elite Robots CS63 is an intelligent partner for modern automation – it increases productivity, optimizes processes and enables the introduction of a higher level of human-robot collaboration.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description

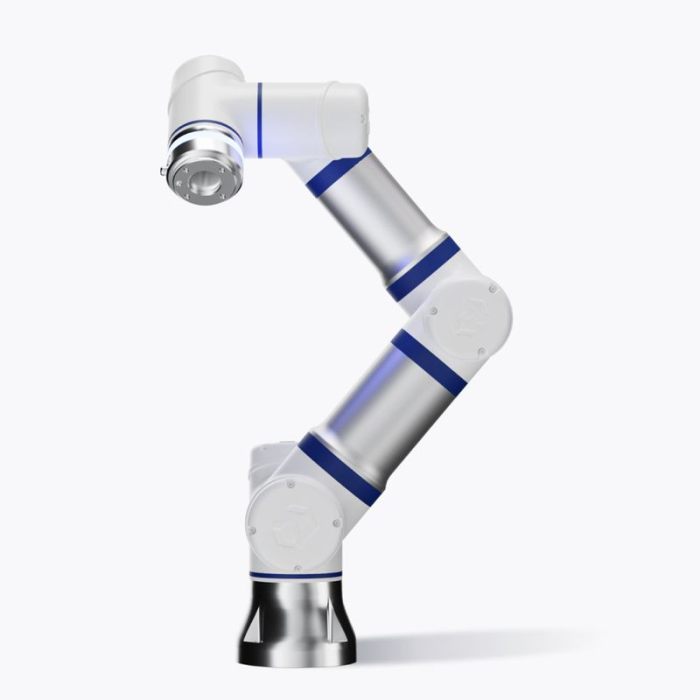

Elite Robots CS63 – the compact power of precision and collaboration.
The Elite Robots CS63 is a modern collaborative robot designed for maximum flexibility, safety, and efficiency. Combining a compact size with impressive strength, it offers a payload of up to 3 kg and a reach of 624 mm, making it ideal for precision assembly, testing, and lightweight component handling tasks.
Thanks to its design that allows for 360° rotation in all axes, the CS63 provides complete freedom of movement and access to hard-to-reach areas. Its compact, lightweight design allows the robot to be easily integrated into existing production lines or used in confined spaces.
Key features:
- 3 kg load capacity – ideal for light assembly and handling tasks,
- 624 mm reach – enables precise operation over a wide range of motion,
- 360° rotation – complete freedom in every axis, increasing application flexibility,
- Compact design – easy installation even in tight work spaces,
- Ease of programming – intuitive interface and quick configuration,
- High accuracy – ideal for work requiring repeatability and precision,
- Versatile applications – from assembly and inspection to research and testing.
Why CS63?
Elite Robots CS63 is an intelligent partner for modern automation – it increases productivity, optimizes processes and enables the introduction of a higher level of human-robot collaboration.
Technical Parameters
| SKU: | CS63 |
|---|---|
| Brand: | Elite Robots |
| Workpiece weight (wrist) (kg): | 3.00 |
| Repeatability (mm): | ± 0.02 |
| TCP speed (m/min): | 1.50 |
| Arm weight: | 16.50 |
| Maximum robot payload (kg): | 3.00 |
| Reach radius in (mm): | 624.00 |
| Typical TCP speed (Mbps): | 1.50 |
| Number of axes: | 6 |
| Software packages: | tak |
| Teach Pendant: | tak |
| IP protection rating: | 65 / 68 (opcja) |
FAQ
What is Elite Robots CS63 and what is it used for?
The Elite Robots CS63 is a compact, lightweight collaborative robot designed for precision assembly, handling, testing, and transport tasks. Both the manufacturer and distributors claim a payload of 3 kg and a reach of 624 mm.
What are the basic parameters of CS63?
The CS63 has six axes, a maximum payload of 3 kg, a reach of 624 mm, and a repeatability of ±0.02 mm. Sources also mention its low arm weight, compact footprint, and versions with IP54 or IP65/68 protection, depending on the configuration.
What makes the CS63 design unique?
Its greatest advantage is its very small size while maintaining full freedom of movement and 360° rotation in all axes. This allows the robot to be easily integrated into an existing production line or placed in a tight workspace.
What are the main uses of CS63?
The CS63 is suitable for assembly, inspection, research, testing, and light handling. It's a good choice wherever precision, repeatability, and a small footprint are essential.
What does programming and operation look like?
The robot offers an intuitive interface, simple configuration, and remote operation via laptop, phone, or tablet. The sources also mention Python programming and a drag-and-drop graphical interface.
Is the CS63 safe for collaborative work?
Yes, the CS series is designed for safe human-robot collaboration and meets EN ISO 10218-1, EN ISO 13849 Cat3 PLd, and ISO/TS 15066 standards. Collision detection and free-drive mode are also available.
What communication possibilities does it have?
The CS63 supports RS485, Modbus RTU, Ethernet TCP/IP, Modbus TCP/RTU, EtherNet/IP slave, and Profinet slave, among others, for easy integration into line automation. Various I/O and power supply options are also available depending on the source.
For which companies will the CS63 be the best choice?
The CS63 model is ideal for companies looking to implement lightweight automation without significant space requirements and with a focus on ease of use. It is best suited for small assembly, testing, and educational stations, as well as for light detail manipulation.
