Haas DS-20Y Twin-Spindle Lathe
SKU: DS-20Y

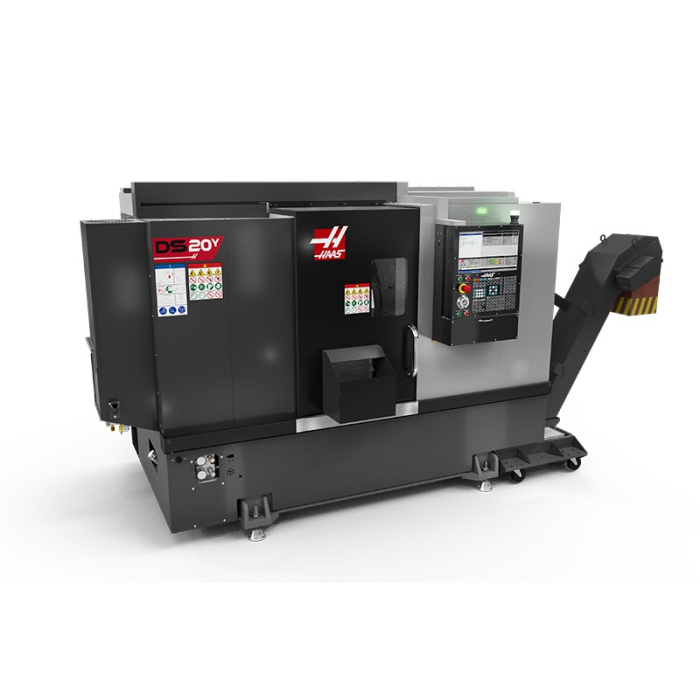

Haas DS-20Y 5-axis lathe The Haas DS-20Y is a versatile lathe that combines two spindles, a Y-axis, a C-axis, and live tooling in a single, compact design. It's ideal for single-step machining—from turning to milling to drilling and tapping—without the need for additional part setup. The machine allows off-center operations thanks to an interpolated C-axis and Y-axis, and the opposing spindles allow for smooth part transfer during the cycle, reducing production time and increasing precision. Key features: Two-spindle design for single-stage machining, Y axis for off-center milling, drilling and tapping, Sub-spindle with full C-axis interpolation and mechanical brake (190 Nm), 12-station BMT65 tool head, Large work area in a compact machine, Optimized for operation in demanding production conditions. The DS-20Y is a compact yet extremely powerful lathe that combines multi-axis machining and automation in one cohesive solution.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Haas DS-20Y 5-axis lathe
The Haas DS-20Y is a versatile lathe that combines two spindles, a Y-axis, a C-axis, and live tooling in a single, compact design. It's ideal for single-step machining—from turning to milling to drilling and tapping—without the need for additional part setup.
The machine allows off-center operations thanks to an interpolated C-axis and Y-axis, and the opposing spindles allow for smooth part transfer during the cycle, reducing production time and increasing precision.
Key features:
- Two-spindle design for single-stage machining,
- Y axis for off-center milling, drilling and tapping,
- Sub-spindle with full C-axis interpolation and mechanical brake (190 Nm),
- 12-station BMT65 tool head,
- Large work area in a compact machine,
- Optimized for operation in demanding production conditions.
The DS-20Y is a compact yet extremely powerful lathe that combines multi-axis machining and automation in one cohesive solution.
Technical Parameters
| SKU: | DS-20Y |
|---|---|
| Brand: | Haas |
| Machine tool type: | Tokarka |
| Tool turret (lathe): | BMT65 |
| X-axis travel (mm): | 213 |
| Y-axis travel (mm): | 102 |
| Z-axis travel (mm): | 572 |
| C-axis rotation (°): | 360.00 |
| Maximum turning diameter (mm): | 298 |
| Maximum turning length (mm): | 572 |
| Swing over covers (mm): | 533.00 |
| X-axis feedrate (m/min): | 12 |
| Y-axis feedrate (m/min): | 12 |
| Z-axis feedrate (m/min): | 24 |
| C-axis feedrate (°/s): | 360.00 |
| Maximum spindle speed (rpm): | 4000 |
| Spindle power (kW): | 14.9 |
| Maximum spindle torque (Nm): | 203 |
| Spindle drive type: | Direct Speed, Belt Drive |
| Main spindle chuck diameter (mm): | 210 |
| Main spindle bore (mm): | 64.00 |
| Main spindle taper: | A2-6 |
| Maximum sub-spindle speed (RPM): | 5000 |
| Sub-spindle chuck diameter (mm): | 165 |
| Sub-spindle bore (mm): | 58.70 |
| Maximum sub-spindle torque (Nm): | 135.60 |
| Sub-spindle taper: | A2-5 |
| Maximum X-axis drive feed force (kN): | 18.24 |
| Maximum Y-axis drive pulling force (kN): | 10.23 |
| Maximum Z-axis drive pulling force (kN): | 22.69 |
| C-axis braking torque (Nm): | 339.00 |
| Compressed air consumption (l/min): | 113.00 |
| Compressed air pressure (bar): | 5.50 |
| Supply voltage (V): | 440 |
| Coolant Tank Capacity (L): | 208.00 |
| Number of axes: | 3 (opcja 4/5) |
| Driven tools: | Tak |
| Sub-spindle: | Tak |
| Hydraulic chuck: | Standard |
