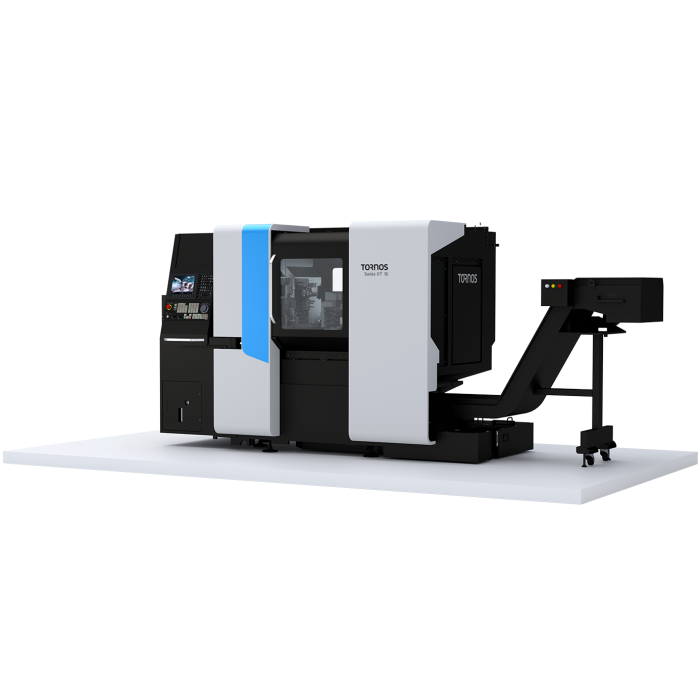

Tornos SWISS XT 16/8 automatic lathe
SKU: Swiss XT16/8
Tornos SWISS XT 16/8 – a compact, high-performance automatic lathe. The Tornos SWISS XT 16/8 is a compact and versatile CNC automatic lathe designed to produce precision parts with maximum efficiency. Despite its small footprint (3056 x 1440 x 2242 mm), the machine offers a wide range of machining capabilities, combining high performance, flexibility, and ergonomics. Key features: Available variants – ability to work with rods with diameters of 13, 25.4 and 32 mm, Eight linear axes – enables flexibility of the production process, Three independent tool systems – machining with up to three tools simultaneously increases productivity, Plug-and-play B-axis (optional) – even greater flexibility and advanced machining operations, Working range: max. bar diameter 16 mm, max. turning length 250 mm (optional 330 mm), Spindle power and speed: up to 12,000 rpm (main spindle), up to 12,000 rpm (sub-spindle), Main spindle power 10.5kW, Sub-spindle power 10.5kW, Optional ACB Plus – advanced chip management and production stability, Compact design – saving space without sacrificing technological capabilities. Benefits for the user: Fast and stable processing – ideal for high-volume production and demanding details, Reduction of machining time – simultaneous machining with 3 tools, Easy programming – simplified control thanks to TISIS software, Production economy – quick transitions between operations thanks to interchangeable tools, Favorable price-performance ratio – the machine combines precision with high profitability, Ergonomics – easy access to the work area and clear operation for the operator. TORNOS SWISS XT 16/8 is an automatic lathe that is ideal for precision mass production – it offers an unparalleled combination of speed, power, compact design and advanced technological capabilities.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Tornos SWISS XT 16/8 – a compact, high-performance automatic lathe.
The Tornos SWISS XT 16/8 is a compact and versatile CNC automatic lathe designed to produce precision parts with maximum efficiency. Despite its small footprint (3056 x 1440 x 2242 mm), the machine offers a wide range of machining capabilities, combining high performance, flexibility, and ergonomics.
Key features:
- Available variants – ability to work with rods with diameters of 13, 25.4 and 32 mm,
- Eight linear axes – enables flexibility of the production process,
- Three independent tool systems – machining with up to three tools simultaneously increases productivity,
- Plug-and-play B-axis (optional) – even greater flexibility and advanced machining operations,
- Working range: max. bar diameter 16 mm, max. turning length 250 mm (optional 330 mm),
- Spindle power and speed: up to 12,000 rpm (main spindle), up to 12,000 rpm (sub-spindle),
- Main spindle power 10.5kW,
- Sub-spindle power 10.5kW,
- Optional ACB Plus – advanced chip management and production stability,
- Compact design – saving space without sacrificing technological capabilities.
Benefits for the user:
- Fast and stable processing – ideal for high-volume production and demanding details,
- Reduction of machining time – simultaneous machining with 3 tools,
- Easy programming – simplified control thanks to TISIS software,
- Production economy – quick transitions between operations thanks to interchangeable tools,
- Favorable price-performance ratio – the machine combines precision with high profitability,
- Ergonomics – easy access to the work area and clear operation for the operator.
TORNOS SWISS XT 16/8 is an automatic lathe that is ideal for precision mass production – it offers an unparalleled combination of speed, power, compact design and advanced technological capabilities.
Technical Parameters
| SKU: | Swiss XT16/8 |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 250 (330op.) |
| Maximum workpiece length (standard parts catcher) (mm): | 120 |
| Maximum workpiece length (mm): | 110 |
| Number of linear axes (pcs): | 8.00 |
| Rapid traverse rate (m/min): | 30 |
| Maximum spindle speed (rpm): | 12000 |
| Maximum bar capacity (mm): | 16 |
| Maximum tapping size: | M10x1.5 |
| Maximum drilling diameter (mm): | 10.00 |
| Maximum tapping size on main / sub spindle: | M10x1.5\M10x1.5 |
| Maximum drill diameter for main / sub-spindle (mm): | 10.00 |
| Maximum continuous torque (Nm): | 26.00 |
| Maximum spindle speed (RPM): | 12,000.00 |
| Maximum sub-spindle speed (RPM): | 12000 |
| Driven tool speed (rpm): | 6,000.00 |
| Total number of driven tools: | 16 |
| Number of fixed axial tools: | 6 |
| Maximum number of turning tools: | 8 |
| Maximum number of fixed axial tools for main / sub-spindle: | 5/5 |
| Maximum number of tools: | 42.00 |
| Maximum speed of main / sub-spindle driven tools (rpm): | 8000 |
| Maximum tap size for driven tools: | M10x1.5\M5x0.8 |
| Maximum drill diameter for driven tools (mm): | 10/6 |
| Number of high-speed driven tools: | 1 |
| Main spindle / sub-spindle tool distribution: | 26/22 |
| Shank Size (mm): | (12x12mm)/(16x16mm) |
| Machine dimensions (length x width x height) (mm): | 3056x1440x2242 |
| Machine weight (kg): | 3880 |
| Control: | Fanuc 31iB Plus |
| Maximum connected power (kW): | 29.00 |
| Tank capacity (L): | 300.00 |
FAQ
What is the Tornos SWISS XT 16/8 automatic lathe?
Compact Swiss-style CNC machine for precise mass production – despite its dimensions of 3056 x 1440 x 2242 mm, it offers high performance, flexibility and ergonomics when processing demanding details.
What bar variants does the machine support?
Variants available for bar diameters of 13, 25.4 and 32 mm – maximum bar diameter of 16 mm and turning length up to 250 mm (optional 330 mm) for versatile production.
What axes and tool systems does the SWISS XT 16/8 offer?
Eight linear axes and three independent tool systems – enable simultaneous machining with three tools, increasing productivity and process flexibility.
What power parameters do the spindles have?
The main and sub-spindles have a power of 10.5 kW each and a speed of up to 12,000 rpm, ensuring fast and stable machining in high-volume production.
How does the B axis increase the capabilities of the machine?
The optional plug-and-play B-axis enables extended operations – greater flexibility for complex shapes and precision machining processes.
What are the benefits of a compact design?
Saving space without sacrificing technological capabilities – ideal for plants with limited space and ergonomic access to the work area.
What advantages does the software and additional options offer?
TISIS software simplifies programming, optional ACB Plus manages chips – fast transitions between operations and stable production with cost efficiency.
Why choose Tornos SWISS XT 16/8?
8 axes, 3 tooling systems, 10.5 kW/12,000 rpm spindles, optional B-axis and compact design – unmatched speed, precision and cost-effectiveness in mass production.
