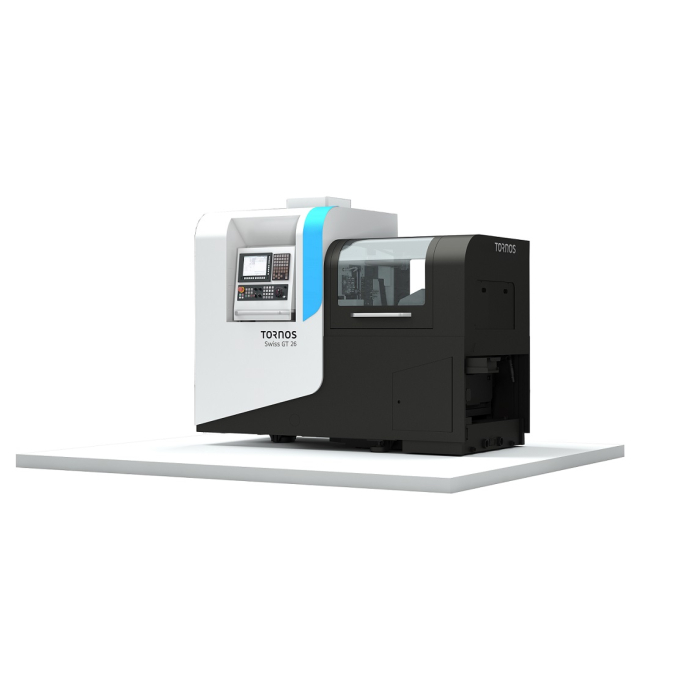

Tornos GT26 automatic lathe
SKU: GT26
Swiss GT26 – high-class, efficient and ergonomic automatic lathe. Swiss GT is a series of CNC automatic lathes that offer competitive pricing and full standard equipment. Thanks to their simple, ergonomic design, the machines provide easy access to tools and are very comfortable in daily use. Key features: Available variants – ability to work with rods with diameters of 13, 25.4 and 32 mm, Six linear axes – guarantee flexibility and simultaneous machining on two spindles, Working range: max. bar diameter Ø 25.4 mm, max. turning length 220 mm, Spindle power and speed: up to 10,000 rpm (main spindle), up to 10,000 rpm (sub-spindle), Main spindle power 10.5kW, Sub-spindle power 10.5kW, Tool magazine – up to 40 positions, including 14 driven, Fanuc 31iB control – intuitive and reliable in everyday use. Ergonomics and maintenance: Easy access to tools – quick setup and operation, Automatic lubrication – minimal maintenance. Benefits: High production efficiency – thanks to a large number of tools and simultaneous processing on both spindles, Flexibility – efficient processing of long and short parts in various production series, Economical solution – full standard equipment at an attractive price Precision and stability – guaranteed by strong spindles and multi-axis kinematics. The Tornos Swiss GT26 is the perfect combination of ergonomics, ease of use and versatile machining capabilities, dedicated to companies looking for a reliable and economical automatic lathe for the production of precision parts.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Swiss GT26 – high-class, efficient and ergonomic automatic lathe.
Swiss GT is a series of CNC automatic lathes that offer competitive pricing and full standard equipment. Thanks to their simple, ergonomic design, the machines provide easy access to tools and are very comfortable in daily use.
Key features:
- Available variants – ability to work with rods with diameters of 13, 25.4 and 32 mm,
- Six linear axes – guarantee flexibility and simultaneous machining on two spindles,
- Working range: max. bar diameter Ø 25.4 mm, max. turning length 220 mm,
- Spindle power and speed: up to 10,000 rpm (main spindle), up to 10,000 rpm (sub-spindle),
- Main spindle power 10.5kW,
- Sub-spindle power 10.5kW,
- Tool magazine – up to 40 positions, including 14 driven,
- Fanuc 31iB control – intuitive and reliable in everyday use.
Ergonomics and maintenance:
- Easy access to tools – quick setup and operation,
- Automatic lubrication – minimal maintenance.
Benefits:
- High production efficiency – thanks to a large number of tools and simultaneous processing on both spindles,
- Flexibility – efficient processing of long and short parts in various production series,
- Economical solution – full standard equipment at an attractive price
- Precision and stability – guaranteed by strong spindles and multi-axis kinematics.
The Tornos Swiss GT26 is the perfect combination of ergonomics, ease of use and versatile machining capabilities, dedicated to companies looking for a reliable and economical automatic lathe for the production of precision parts.
Technical Parameters
| SKU: | GT26 |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 220 |
| Maximum workpiece length (standard parts catcher) (mm): | 120 |
| Number of linear axes (pcs): | 6.00 |
| Rapid traverse rate (m/min): | 35 |
| Maximum spindle speed (rpm): | 10000 |
| Maximum spindle torque (Nm): | 26 |
| Maximum continuous torque (Nm): | 26.00 |
| Maximum sub-spindle speed (RPM): | 10000 |
| Driven tool speed (rpm): | 6,000.00 |
| Number of driven tools: | 14.00 |
| Number of radial driven tools: | 4(ER20) |
| Total number of driven tools: | 16 |
| Number of fixed axial tools: | 4 |
| Maximum number of turning tools: | 9 |
| Maximum number of fixed axial tools for main / sub-spindle: | 5/5 |
| Maximum number of tools: | 40.00 |
| Maximum speed of main / sub-spindle driven tools (rpm): | 6000 |
| Number of high-speed driven tools: | 1 |
| Main spindle / sub-spindle tool distribution: | 27/13 |
| Shank Size (mm): | (16x16mm) |
| Machine dimensions (length x width x height) (mm): | 2710x1270x1990 |
| Machine weight (kg): | 3350 |
| Control: | Fanuc 31iB Plus |
| Coolant pump power (kW): | 0.79 |
| Tank capacity (L): | 200.00 |
FAQ
What applications is the Swiss GT26 intended for?
The Swiss GT26 is designed for the precise production of long and short bar parts, in both small and large series, where high efficiency, accuracy and process reliability are essential.
What diameter and length of bar can be machined on the Swiss GT26?
The machine handles bars with a maximum diameter of 25.4 mm, and the standard maximum turning length is 220 mm, allowing for efficient machining of a wide range of components.
How many axles does the Swiss GT26 have and what does it offer in practice?
The Swiss GT26 has six linear axes and two C axes, which enables simultaneous machining on two spindles and the implementation of complex operations in a single setup.
What are the parameters of the main and sub spindle?
The main and sub-spindles reach up to 10,000 rpm, with a power of up to approximately 10.5 kW and a torque of up to 26 Nm, which guarantees stable cutting and high production efficiency.
How many tools can be mounted and how many of them are powered?
The Swiss GT26 offers a tool magazine for up to 40 tools, 14 of which can be driven, so you can combine turning with extensive milling and drilling operations in a single setup.
Are there other bar diameter ranges available in the Swiss GT series?
Yes. The Swiss GT series includes variants for bar diameters of 13 mm (GT13), 25.4 mm (GT26), and 32 mm (GT32), allowing you to select the optimal machine for typical diameters in your production.
How does the Fanuc 31iB control affect machine operation?
The Fanuc 31iB control is intuitive and reliable, supports multi-axis machining and simplifies programming, which shortens the time it takes to train operators and prepare new parts.
What ergonomic benefits does the Swiss GT26 offer?
The machine has a simple, ergonomic design with very good access to tools and the work area, which speeds up setup, changeover and daily operation.
What about maintenance and service?
The Swiss GT26 is equipped with automatic lubrication and chip removal solutions, which reduces the scope of service and helps keep the machine in good technical condition.
How does the Swiss GT26 affect production economics?
Thanks to its full standard equipment, a large number of tools and simultaneous machining on both spindles, the Swiss GT26 ensures high productivity at a competitive investment price and favorable cost per part.
