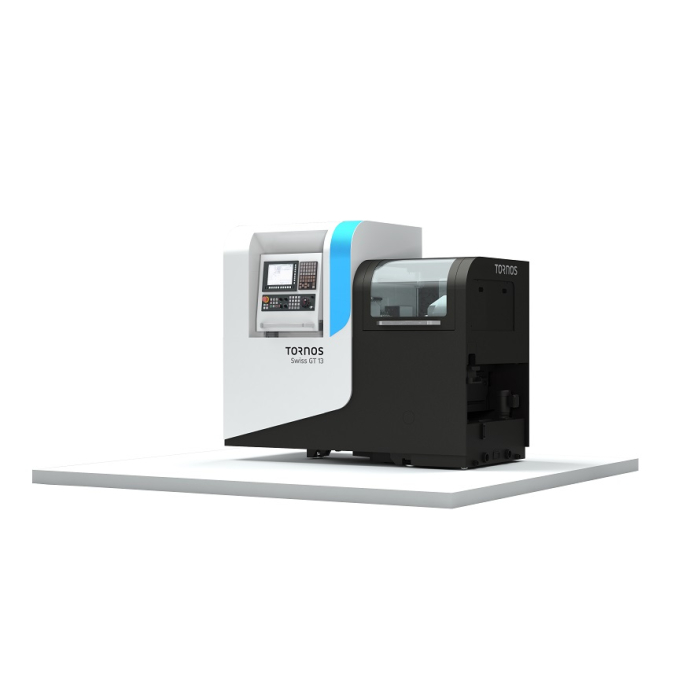

Tornos GT13 automatic lathe
SKU: GT13
Swiss GT13 – high-class, efficient and ergonomic automatic lathe. Swiss GT is a series of CNC automatic lathes that offer competitive pricing and full standard equipment. Thanks to their simple, ergonomic design, the machines provide easy access to tools and are very comfortable in daily use. Key features: Available variants – ability to work with rods with diameters of 13, 25.4 and 32 mm, Six linear axes – guarantee flexibility and simultaneous machining on two spindles, Working range: max. bar diameter Ø 13 mm, max. turning length 190 mm, Spindle power and speed: up to 15,000 rpm (main spindle), up to 15,000 rpm (sub-spindle), Main spindle power 5kW, Sub-spindle power 5kW, Tool magazine – up to 30 positions, including 12 driven ones, Fanuc 31iB control – intuitive and reliable in everyday use. Ergonomics and maintenance: Easy access to tools – quick setup and operation, Automatic lubrication – minimal maintenance. Benefits: High production efficiency – thanks to a large number of tools and simultaneous processing on both spindles, Flexibility – efficient processing of long and short parts in various production series, Economical solution – full standard equipment at an attractive price, Precision and stability – guaranteed by strong spindles and multi-axis kinematics. The Tornos Swiss GT13 is the perfect combination of ergonomics, ease of use and versatile machining capabilities, dedicated to companies looking for a reliable and economical automatic lathe for the production of precision parts.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Swiss GT13 – high-class, efficient and ergonomic automatic lathe.
Swiss GT is a series of CNC automatic lathes that offer competitive pricing and full standard equipment. Thanks to their simple, ergonomic design, the machines provide easy access to tools and are very comfortable in daily use.
Key features:
- Available variants – ability to work with rods with diameters of 13, 25.4 and 32 mm,
- Six linear axes – guarantee flexibility and simultaneous machining on two spindles,
- Working range: max. bar diameter Ø 13 mm, max. turning length 190 mm,
- Spindle power and speed: up to 15,000 rpm (main spindle), up to 15,000 rpm (sub-spindle),
- Main spindle power 5kW,
- Sub-spindle power 5kW,
- Tool magazine – up to 30 positions, including 12 driven ones,
- Fanuc 31iB control – intuitive and reliable in everyday use.
Ergonomics and maintenance:
- Easy access to tools – quick setup and operation,
- Automatic lubrication – minimal maintenance.
Benefits:
- High production efficiency – thanks to a large number of tools and simultaneous processing on both spindles,
- Flexibility – efficient processing of long and short parts in various production series,
- Economical solution – full standard equipment at an attractive price,
- Precision and stability – guaranteed by strong spindles and multi-axis kinematics.
The Tornos Swiss GT13 is the perfect combination of ergonomics, ease of use and versatile machining capabilities, dedicated to companies looking for a reliable and economical automatic lathe for the production of precision parts.
Technical Parameters
| SKU: | GT13 |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 190 |
| Maximum workpiece length (standard parts catcher) (mm): | 90 |
| Number of linear axes (pcs): | 6.00 |
| Rapid traverse rate (m/min): | 32 |
| Maximum spindle speed (rpm): | 15000 |
| Maximum spindle torque (Nm): | 12 |
| Maximum bar capacity (mm): | 13 |
| Maximum continuous torque (Nm): | 12.00 |
| Spindle power S1 S6 (kW): | 4/5 |
| Maximum sub-spindle speed (RPM): | 15000 |
| Sub-spindle motor power (kW): | 4/5 |
| Driven tool speed (rpm): | 6,000.00 |
| Number of driven tools: | 12.00 |
| Number of radial driven tools: | 3 |
| Total number of driven tools: | 12 |
| Number of fixed axial tools: | 4 |
| Maximum number of turning tools: | 8 |
| Maximum number of fixed axial tools for main / sub-spindle: | 4/4 |
| Maximum number of tools: | 30.00 |
| Maximum speed of main / sub-spindle driven tools (rpm): | 10000 |
| Number of high-speed driven tools: | 1 |
| Main spindle / sub-spindle tool distribution: | 18/12 |
| Shank Size (mm): | (12x12mm) |
| Machine dimensions (length x width x height) (mm): | 2170x1140x1890 |
| Machine weight (kg): | 2800 |
| Control: | Fanuc 31iB Plus |
| Coolant pump power (kW): | 0.44 |
| Tank capacity (L): | 200.00 |
FAQ
What applications is the Swiss GT13 intended for?
The Swiss GT13 is designed for the precise production of long and short parts from small diameter bar, especially where high accuracy, repeatability and efficiency are important in a compact machine size.
What diameter and length of bar can be machined on the Swiss GT13?
The machine supports bars with a maximum diameter of 13 mm, and the maximum turning length is 190 mm, which allows for efficient machining of typical details for industries such as medicine, micromechanics and electronics.
How many axes and spindles does the Swiss GT13 have and what does it offer in practice?
The Swiss GT13 has 8 axes and two spindles (main and sub-spindle), which allows simultaneous machining on two sides and the implementation of complex operations in a single setup, reducing cycle times.
What are the parameters of the main and sub spindle?
The main and sub-spindles reach up to 15,000 rpm, with a power of approximately 4–5 kW, which ensures high cutting speed, high surface quality and a stable machining process for small parts.
How many tools can be mounted and how many of them are powered?
The Swiss GT13 offers up to 30 tool positions, 12 of which can be driven, so you can combine turning with extensive milling and drilling operations on a workpiece in one setup.
What are the key advantages of the Swiss GT13's design and ergonomics?
The machine has a simple, ergonomic design with easy access to tools and the work area, which speeds up set-up and changeovers and facilitates daily operation for the operator.
What about lubrication and servicing?
The Swiss GT13 is equipped with automatic lubrication, which reduces manual maintenance to a minimum and helps maintain the machine's long-term stability.
What controls are used in the Swiss GT13 and what are the benefits?
The machine uses the Fanuc 31iB control, which is intuitive, fast and reliable, facilitating the programming of multi-axis cycles and reducing operator onboarding time.
How does the Swiss GT13 affect production economics?
Thanks to full standard equipment, the possibility of simultaneous machining on two spindles and a large number of tools, the Swiss GT13 offers high productivity at a competitive cost per part and an attractive investment price.
For which industries is the Swiss GT13 particularly recommended?
The Swiss GT13 is ideal for industries requiring very small, precise details – such as medicine, micromechanics, electronics and precision automation – where accuracy, stability and economical use are key.
