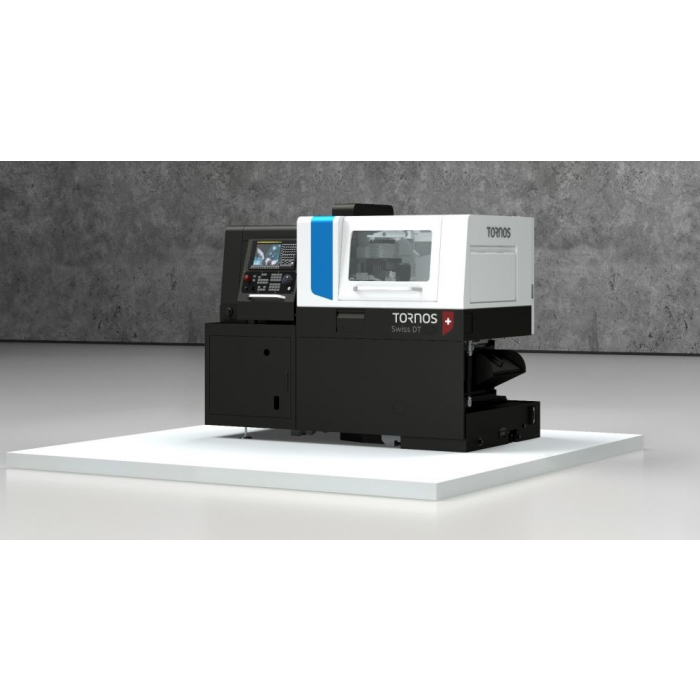

Tornos DT7/6 automatic lathe
SKU: DT7-6
Swiss DT7 – automatic lathes for precision production. The Swiss DT7 is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications. Key features: Six models in the series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm, Six-axis kinematics, Working range: bar diameter up to 7 mm, headstock stroke 185 mm, Tool capabilities – up to 33 tools, including 8 driven ones, Spindle speed: up to 15,000 rpm (main spindle), up to 15,000 rpm (sub-spindle), Power and speed of spindles: main spindle power 5kW, sub-spindle power 5kW, Fanuc 0i-TF Plus control – intuitive, fast and reliable. Benefits for the user: Easy to use – quick operator onboarding and simple programming, High productivity – machining with 2 tools in one cycle, Flexibility – possibility of processing short and long parts, Precision and stability – five-axis kinematics guarantee simultaneous machining, Versatility in applications – ideal for both turning and milling and drilling operations. The Tornos Swiss DT7 is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic lathe capable of working in both small and large-scale production with the highest precision.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Swiss DT7 – automatic lathes for precision production.
The Swiss DT7 is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications.
Key features:
- Six models in the series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm,
- Six-axis kinematics,
- Working range: bar diameter up to 7 mm, headstock stroke 185 mm,
- Tool capabilities – up to 33 tools, including 8 driven ones,
- Spindle speed: up to 15,000 rpm (main spindle), up to 15,000 rpm (sub-spindle),
- Power and speed of spindles: main spindle power 5kW, sub-spindle power 5kW,
- Fanuc 0i-TF Plus control – intuitive, fast and reliable.
Benefits for the user:
- Easy to use – quick operator onboarding and simple programming,
- High productivity – machining with 2 tools in one cycle,
- Flexibility – possibility of processing short and long parts,
- Precision and stability – five-axis kinematics guarantee simultaneous machining,
- Versatility in applications – ideal for both turning and milling and drilling operations.
The Tornos Swiss DT7 is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic lathe capable of working in both small and large-scale production with the highest precision.
Technical Parameters
| SKU: | DT7-6 |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 185 |
| Maximum spindle speed (rpm): | 15000 |
| Maximum bar capacity (mm): | 7 |
| Main spindle power (kW): | 5 |
| Maximum sub-spindle speed (RPM): | 15000 |
| Number of driven tools: | 8.00 |
| Maximum number of tools: | 33.00 |
| Control: | Fanuc 0i-TF Plus |
FAQ
What applications is the Swiss DT7 intended for?
The Swiss DT7 is designed for the precise production of very thin, long and short bar parts, in small and large-scale production, where maximum accuracy, stability and processing flexibility are essential.
What diameter and length of bar can be processed?
The machine handles bars up to 7 mm in diameter, with a headstock stroke of 185 mm, which allows for the efficient processing of typical micro-details for industries such as medicine, micromechanics and electronics.
How many axles does the Swiss DT7 have and what does it offer in practice?
The Swiss DT7 uses six-axis kinematics that enable simultaneous machining and complex operations in a single setup, reducing cycle times and increasing process stability.
How many tools can be mounted and how many of them are powered?
The machine offers up to 33 tool positions, 8 of which are driven, which allows turning to be combined with extensive milling and drilling operations without the need for additional machines.
What are the parameters of the main and sub spindle?
Both the main and sub-spindles reach speeds of up to 15,000 rpm, with a power of approximately 5 kW, which ensures high cutting speeds, very good surface quality and a stable machining process for small parts.
What are the benefits of the Fanuc 0i-TF Plus control?
The Fanuc 0i-TF Plus control is intuitive, fast and reliable, supports multi-axis operation, facilitates programming of turning cycles and milling-drilling operations, and shortens operator training time.
Does the Swiss DT7 allow multiple tools to work simultaneously?
Yes. The machine allows for machining with two tools in a single cycle, significantly reducing machining time and increasing productivity while maintaining high accuracy.
How does the Swiss DT7 ensure process precision and stability?
The rigid structure, six-axis kinematics and efficient spindles guarantee stable, simultaneous machining with high dimensional accuracy and repeatability, even for very small and demanding details.
What types of surgery is the Swiss DT7 best suited for?
The Swiss DT7 is ideal for both classic longitudinal turning of ultra-thin bars and precision milling and drilling operations, making it a versatile solution for the production of miniature components.
