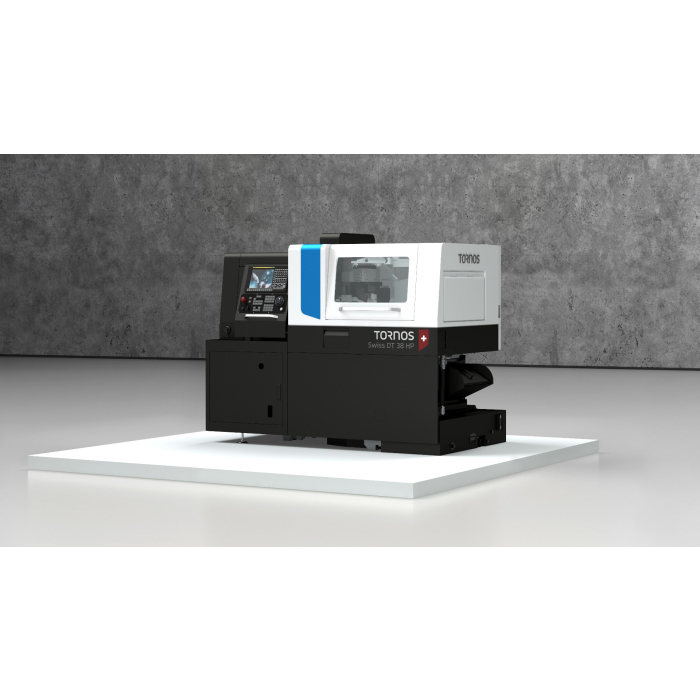

Tornos DT38 HP automatic lathe
SKU: DT38HP
Swiss DT38HP – automatic lathes for precision production. The Swiss DT38HP is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications. Key features: Six models in the DT series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm, Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP, Optional B axis – additional milling and angle operations capabilities, Working range: bar diameter up to 38 mm (without guide sleeve), headstock stroke 250 mm, Tool capabilities – up to 29 tools, including 14 driven ones, Spindle speed: up to 7,000 rpm (main spindle), up to 7,000 rpm (sub-spindle), Spindle power and speed: main spindle power 10.5kW, counter spindle power 10.5kW, Fanuc 0i-TF Plus control – intuitive, fast and reliable. Benefits for the user: Easy to use – quick operator onboarding and simple programming, High productivity – machining with 2 tools in one cycle, Flexibility – possibility of processing short and long parts, Precision and stability – five-axis kinematics guarantee simultaneous machining, Versatility in applications – ideal for both turning and milling and drilling operations. The Tornos Swiss DT38HP is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Swiss DT38HP – automatic lathes for precision production.
The Swiss DT38HP is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications.
Key features:
- Six models in the DT series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm,
- Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP,
- Optional B axis – additional milling and angle operations capabilities,
- Working range: bar diameter up to 38 mm (without guide sleeve), headstock stroke 250 mm,
- Tool capabilities – up to 29 tools, including 14 driven ones,
- Spindle speed: up to 7,000 rpm (main spindle), up to 7,000 rpm (sub-spindle),
- Spindle power and speed: main spindle power 10.5kW, counter spindle power 10.5kW,
- Fanuc 0i-TF Plus control – intuitive, fast and reliable.
Benefits for the user:
- Easy to use – quick operator onboarding and simple programming,
- High productivity – machining with 2 tools in one cycle,
- Flexibility – possibility of processing short and long parts,
- Precision and stability – five-axis kinematics guarantee simultaneous machining,
- Versatility in applications – ideal for both turning and milling and drilling operations.
The Tornos Swiss DT38HP is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Technical Parameters
| SKU: | DT38HP |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 250/80 |
| Maximum workpiece length (standard parts catcher) (mm): | 90 |
| Maximum workpiece length (mm): | 110 |
| Rapid traverse rate (m/min): | 32(X1:30) |
| Maximum spindle speed (rpm): | 7000 |
| Maximum bar capacity (mm): | 38 |
| Maximum tapping size: | M10xP1.5 |
| Maximum drilling diameter (mm): | 12.00 |
| Maximum tapping size on main / sub spindle: | M10 x P1.5 |
| Maximum drill diameter for main / sub-spindle (mm): | 12.00 |
| Maximum spindle speed (RPM): | 7,500.00 |
| Maximum sub-spindle speed (RPM): | 7000 |
| Number of driven tools: | 14.00 |
| Number of radial driven tools: | 6(ER20) |
| Total number of driven tools: | 2x3(2x4op.) |
| Number of fixed axial tools: | 5 |
| Maximum number of turning tools: | 5 |
| Maximum number of fixed axial tools for main / sub-spindle: | 4/4 (5/5 op.) |
| Maximum number of tools: | 28.00 |
| Maximum speed of main / sub-spindle driven tools (rpm): | 6000/3800(ER25) |
| Maximum tap size for driven tools: | M8x1.25 |
| Maximum drill diameter for driven tools (mm): | 10 |
| Maximum drive power (kW): | 1 |
| Number of high-speed driven tools: | 1(op.) |
| Shank Size (mm): | (16x16mm) |
| Machine dimensions (length x width x height) (mm): | 2560x1285x2080 |
| Machine weight (kg): | 2710 |
| Control: | Fanuc 0i-TF Plus |
| Maximum connected power (kW): | 20.00 |
| Tank capacity (L): | 210.00 |
FAQ
What applications is the Swiss DT38HP intended for?
The Swiss DT38HP is used for the precise production of long and short turned parts from bar, in small and large-scale production, where accuracy, process stability and high efficiency are important.
What diameter and length of bar can be processed?
The machine can process bars up to 38 mm in diameter (without a guide bush), with a headstock stroke of 250 mm, which allows for the efficient production of both longer and shorter workpieces.
How many tools can be mounted on the Swiss DT38HP?
The Swiss DT38HP allows the use of up to 29 tools, of which up to 14 can be driven, providing a wide range of turning, milling and drilling operations in a single setup.
What are the parameters of the main and sub spindles?
Both the main and sub-spindles have a power of 10.5 kW and a rotational speed of up to 7,000 rpm, which guarantees dynamic and stable machining while maintaining high surface quality.
What kinematics does the Swiss DT series offer and how does it affect precision?
The DT series offers five-axis, and in selected models also six-axis kinematics, which enables simultaneous machining and ensures high precision and process stability even with complex workpieces.
What is the optional B-axis for on the Swiss DT38HP?
The optional B-axis expands milling and angle machining capabilities, allowing you to perform more complex shapes and operations without the need for additional setups or machines.
What are the benefits of the Fanuc 0i TF Plus control?
The Fanuc 0i TF Plus control is intuitive, fast and reliable, simplifies programming, speeds operator onboarding and supports stable execution of complex turning cycles and milling and drilling operations.
Does the Swiss DT38HP allow multiple tools to work simultaneously?
Yes. The machine allows for machining with two tools in a single cycle, which reduces machining time and significantly increases productivity while maintaining high accuracy.
How does the Swiss DT38HP provide flexibility in production?
The ability to process bars up to 38 mm, a large number of tools (including driven ones) and an optional B axis make the machine suitable for both typical longitudinal turning and extensive milling and drilling operations.
For which companies will the Swiss DT38HP be the best choice?
The Swiss DT38HP is ideal for companies that need an efficient, versatile and easy-to-use automatic lathe capable of handling both small and large-scale production with the highest precision.
